CVT Stall Speed Test

CVT Stall Speed Test

1. Make sure the transmission fluid is filled to the proper level. Service and Repair

2. Apply the parking brake, and block all four wheels.

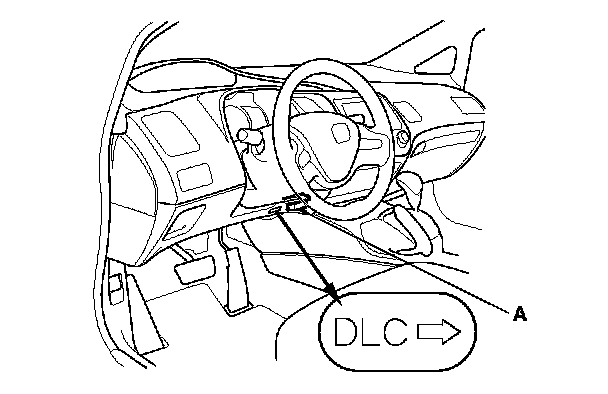

3. Connect the HDS to the DLC (A) located under the driver's side of the dashboard.

4. Turn the ignition switch to ON (II).

5. Make sure the HDS communicates with the PCM, and go to the A/T Data List. If it does not, go to the DLC circuit troubleshooting. Testing and Inspection

6. Make sure the A/C switch is OFF.

7. Start the engine, and warm it up to normal operating temperature (the radiator fan comes on).

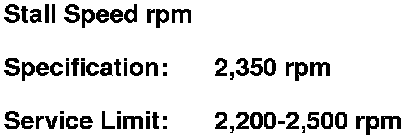

8. Shift the shift lever to D, while pressing the brake pedal firmly, then press the accelerator pedal for 6 to 8 seconds, and note the engine speed. Do not move the shift lever while raising the engine speed.

9. Allow 2 minutes for cooling, then repeat the test with the shift lever in S, L, and R.
NOTE:

- Do not test stall speed for more than 10 seconds at a time.

- Stall speed tests should be used for diagnostic purposes only.

- Stall speed tests should be the same in D, S, L, and R.

- Do not test stall speed with the A/T pressure gauges installed.

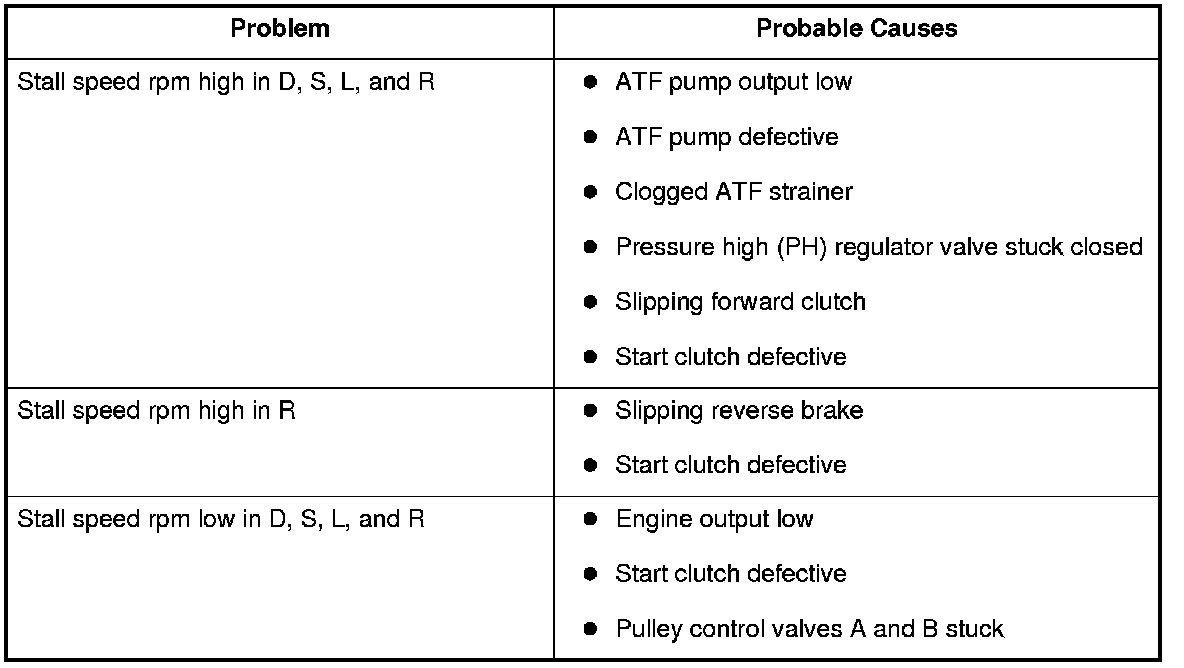

10. If the stall speeds are out of the service limit, the problems and probable causes are listed in the table.
