A/T Shift Lock Solenoid Replacement

NOTE: Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.

1. Remove the shift lever assembly. Removal and Replacement

2. Remove the shift lock solenoid connector.

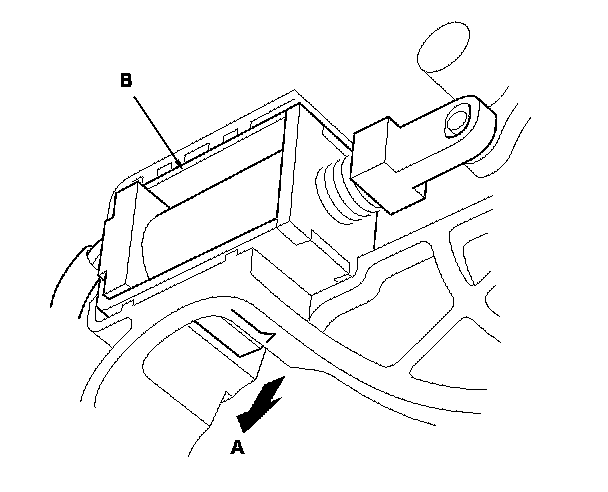

3. Release the lock tab (A), then remove the shift lock solenoid (B).

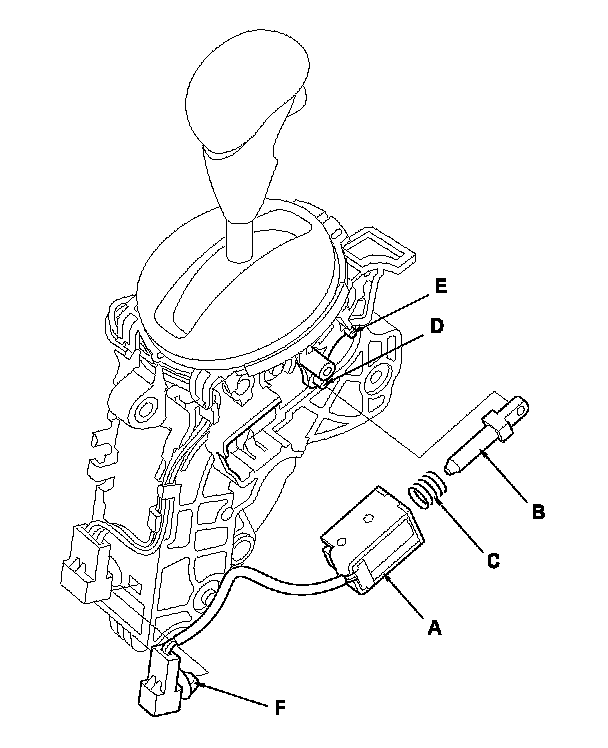

4. Replace the shift lock solenoid (A), the solenoid plunger (B), and the plunger spring (C) assembly.

5. Apply silicone grease to the tip (D) of the shift lock stop (E), and the solenoid plunger.

6. Install the shift lock solenoid by aligning the joint of the shift lock solenoid plunger with the tip of the shift lock stop, then push the shift lock solenoid into the shift lever securely.

7. Route the shift lock solenoid harness in the guide, and install the clip (F) on the connector on the bracket base.

8. Install the shift lever assembly. Removal and Replacement
