USB Adapter Unit Replacement

USB Adapter Unit Replacement

1. Remove the front passenger's seat Front Seat Removal/Installation and pull back the carpet.

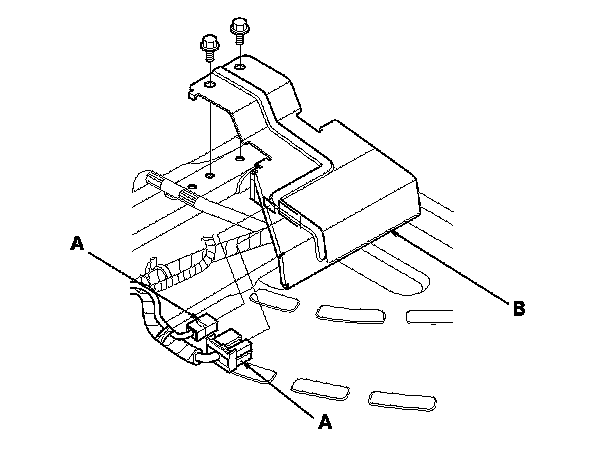

2. Disconnect the connectors (A) from the USB adapter unit (B).

3. Loosen the bolts and the USB adapter unit.

4. Install the USB adapter unit in the reverse order of removal.
