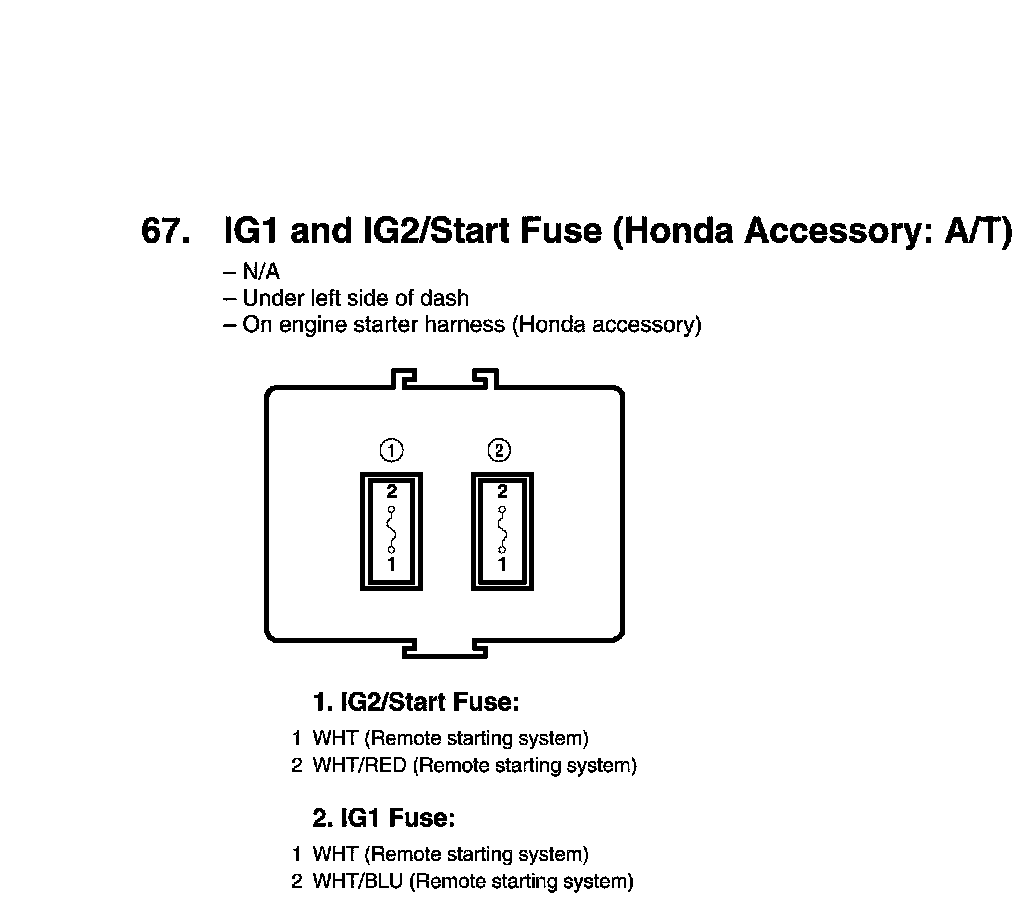

IG1 and IG2/Start Fuse Connector View (Honda Accessory: A/T)
IG1 and IG2/Start Fuse Connector View (Honda Accessory: A/T)
