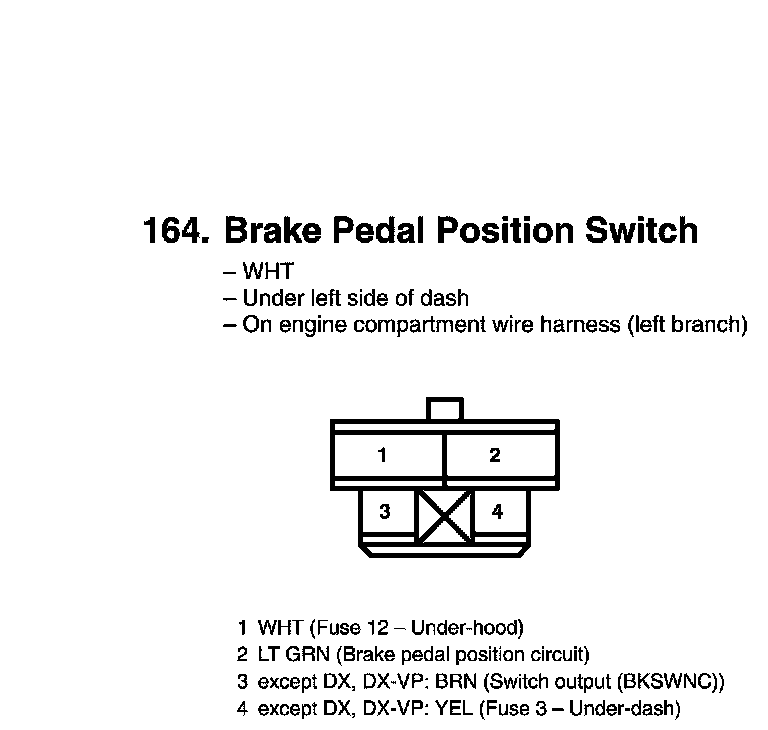

View 164 Brake Pedal Position Switch Connector View
View 164 Brake Pedal Position Switch Connector View
