J35A6

Advanced Diagnostics

DTC P0461: Fuel Level Sensor (Fuel Gauge Sending Unit) Circuit Range/Performance Problem (Engine Type: J35A6)







General Description
The fuel level sensor is incorporated with the fuel pump and installed in the fuel tank. Using a built-in potentiometer and float, it converts the movement of the float into electrical signals that correspond to the fuel level, and it indicates the amount of fuel in the fuel tank. If the powertrain control module (PCM) receives no change in the fuel level sensor output after driving for a specified number of miles, it detects a malfunction and stores a DTC.

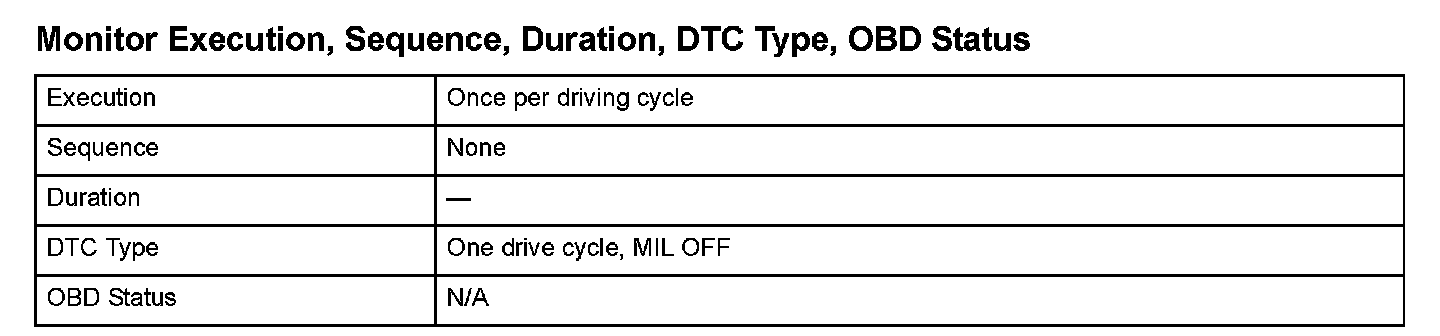

Monitor Execution, Sequence, Duration, DTC Type, OBD Status







Enable Conditions







Malfunction Threshold
The change in the fuel level sensor output is 3.0 % or less.

Driving Pattern
Drive for the specified mileage under Enable Conditions without refueling, (turning the ignition switch to LOCK (0) is acceptable.)

- Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.

Diagnosis Details

Conditions for illuminating the indicator
When a malfunction is detected in a certain drive cycle and a malfunction of 0.02 inch leak is detected in the same drive cycle, and DTC P0456 is stored, the DTC and the freeze frame data are stored in the PCM memory. The MIL does not come on.

Conditions for clearing the DTC
The DTC and the freeze frame data can be cleared by using the scan tool Clear command or by disconnecting the battery.
