J35A7

Advanced Diagnostics

DTC P2229: Barometric Pressure (BARO) Sensor Circuit High Voltage (Engine Type: J35A7)







General Description

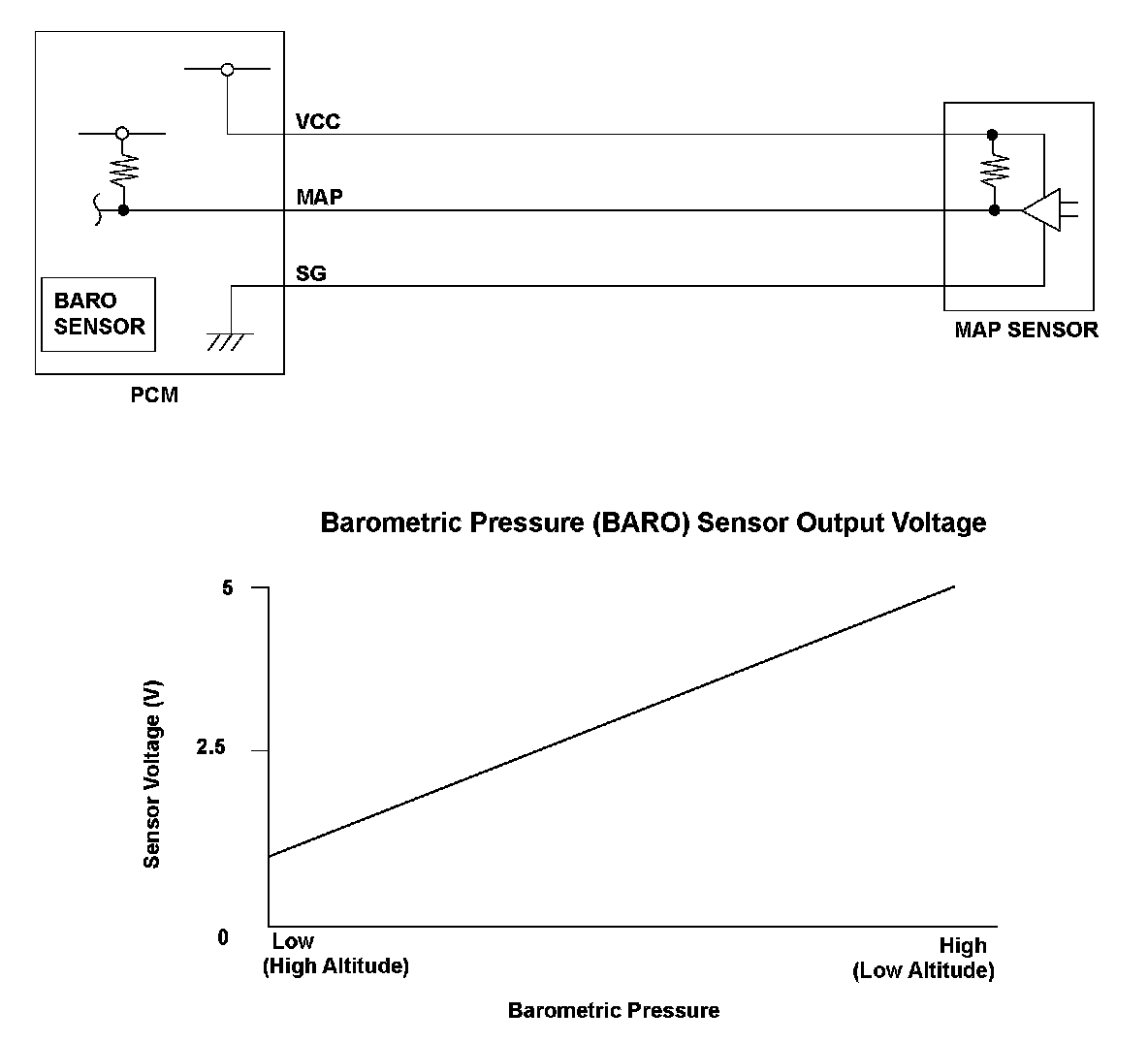

The barometric pressure (BARO) sensor is built into the powertrain control module (PCM) and monitors atmospheric pressure. The PCM estimates appropriate intake airflow from the manifold absolute pressure (MAP) sensor output voltage and BARO sensor output voltage. If the BARO sensor output voltage is a specified value or more, the PCM detects a malfunction and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status







Enable Conditions







Malfunction Threshold
The BARO sensor output voltage is 4.49 V or more for at least 2.0 seconds.

Diagnosis Details

Conditions for illuminating the MIL
When a malfunction is detected during the first drive cycle, a Temporary DTC is stored in the PCM memory. If the malfunction recurs during the next (second) drive cycle, the MIL comes on and the DTC and the freeze frame data are stored.

Conditions for clearing the MIL
The MIL will be cleared if the malfunction does not recur during three consecutive drive cycles in which the engine conditions are similar to the first time the malfunction was detected. The MIL, the DTC, the Temporary DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by disconnecting the battery.
