Console: Service and Repair

Detachable Console Disassembly/Reassembly

Special Tools Required

- KTC trim tool set SOJATP2014*
NOTE:

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

- Take care not to scratch the console or related parts.

1. Remove the detachable console.

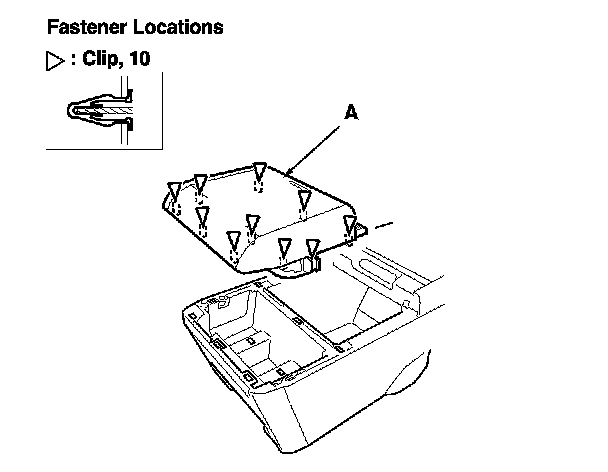

2. Detach the clips, then remove the beverage holder (A).

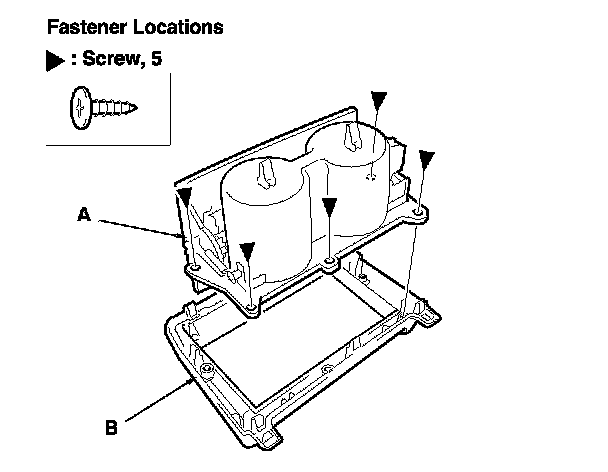

3. Remove the screws, then remove the beverage holder base (A) from the beverage holder upper cover (B).

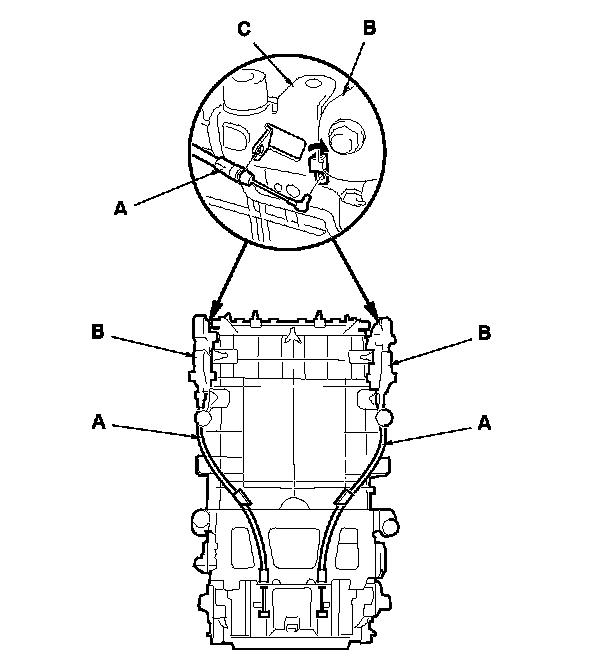

4. Detach the console latch cables (A) from the console box (B) and the console latch handle (C).

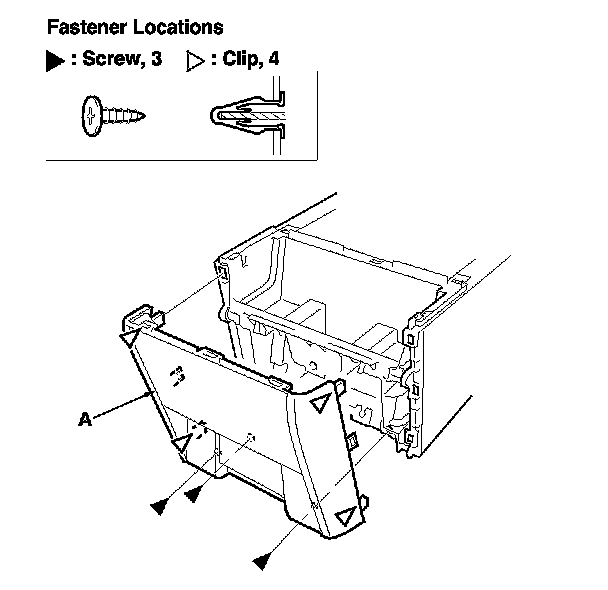

5. Remove the screws, then pull out the console front cover (A) to detach the clips, then remove the cover.

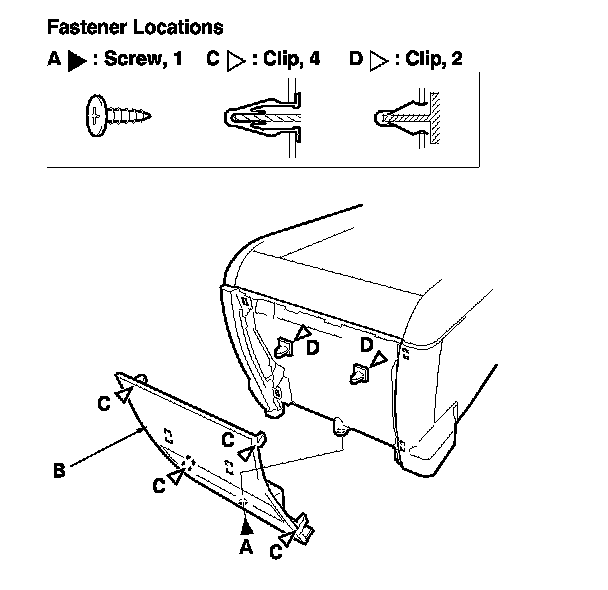

6. Remove the screw (A), then pull out the console rear cover (B) to detach the clips (C, D), then remove the cover.






7. Remove the screws from the side cover (A).

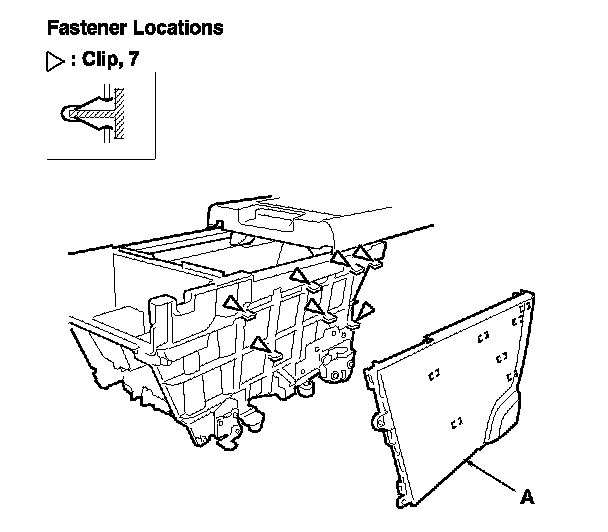

8. Pull out the side cover (A) to detach the clips, then remove the cover.

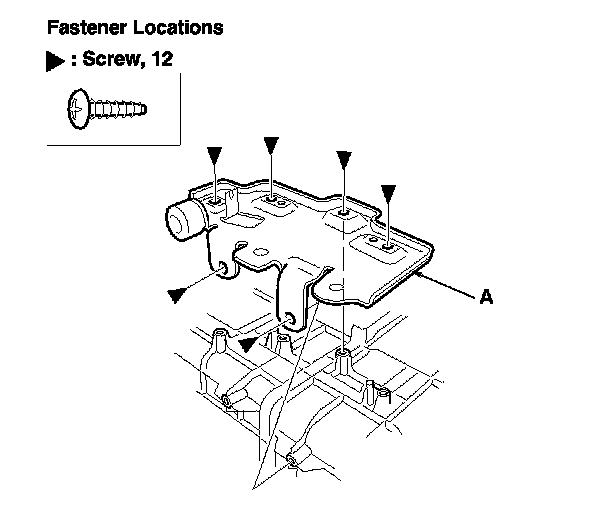

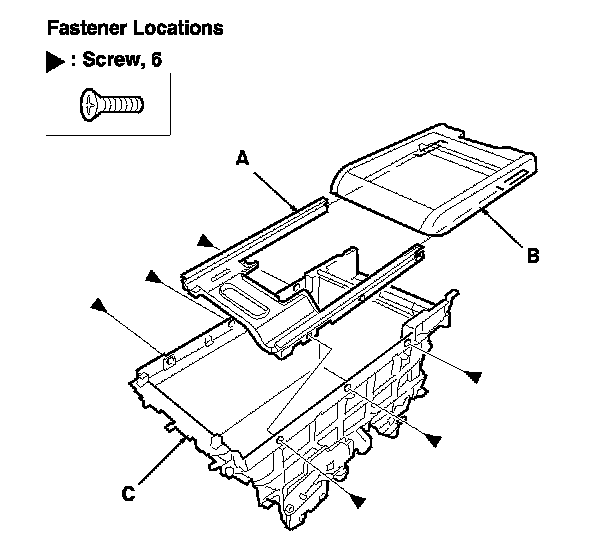

9. Remove the screws, then remove the sliding frame (A) and the sliding lid (B) from the console box (C), then remove the sliding lid from the sliding frame.

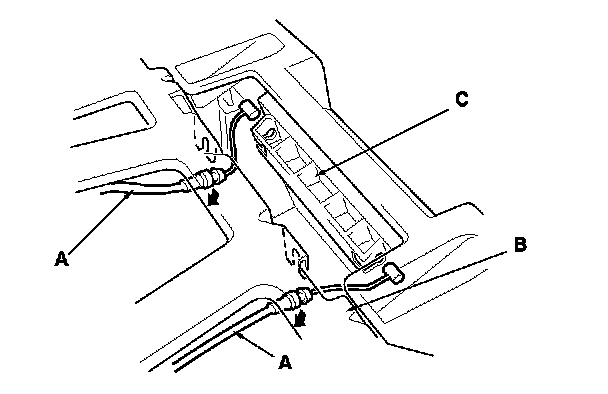

10. Disconnect and detach the console latch cables (A) from the console latches (B) and the console brackets (C).

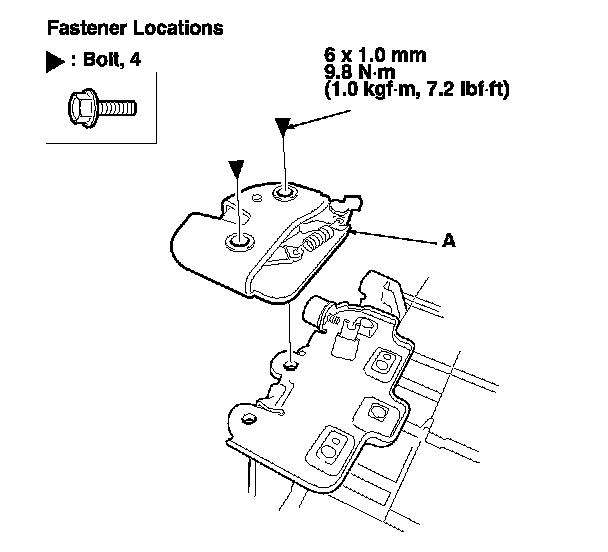

11. Remove the bolts, then remove the console latches (A).

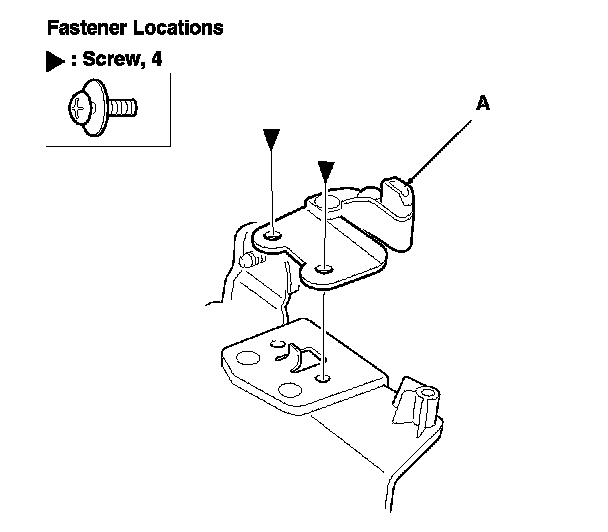

12. Remove the screws, then remove the console brackets (A).






13. Remove the screws, then remove the console locks (A).

14. Reassemble the console in the reverse order of disassembly, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.

- Make sure the console latch cables are connected securely.

- Push the clips into place securely.
