Door Lock Actuator Test

Door Lock Actuator Test

Driver's/Front passenger's door

1. Remove the door panel Service and Repair.

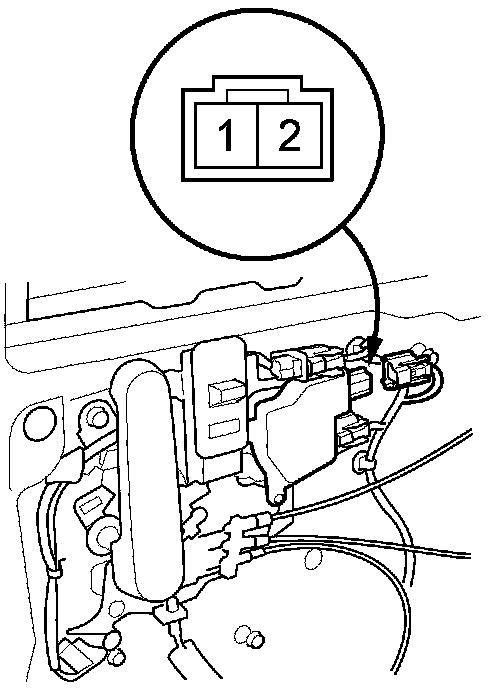

2. Disconnect the 2P connector from the actuator.

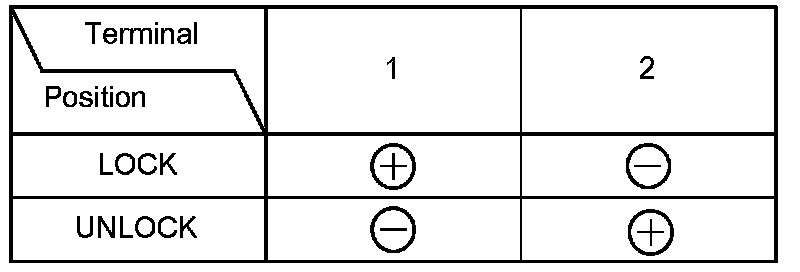

3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.





4. If the actuator does not operate as specified, replace it.

Sliding door

1. Remove the sliding door panel Sliding Door Panel Removal/Installation.

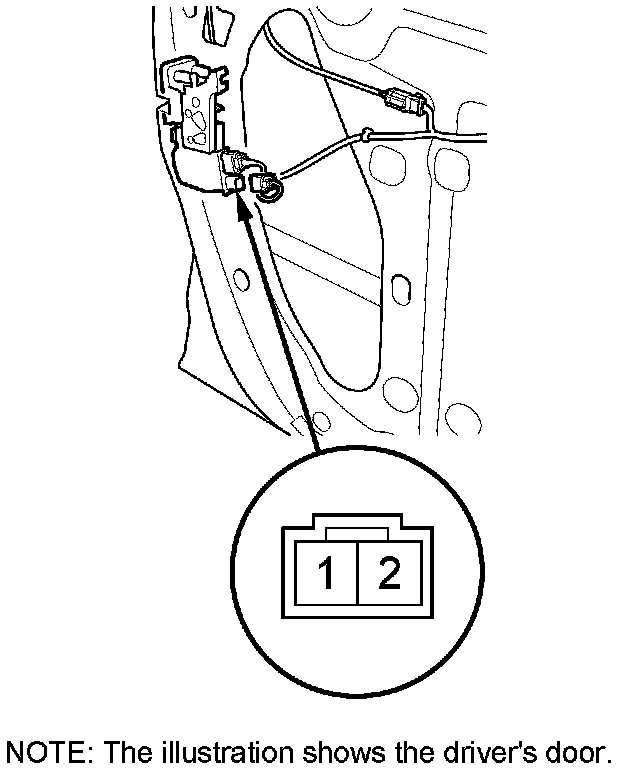

2. Disconnect the 2P connector from the actuator.

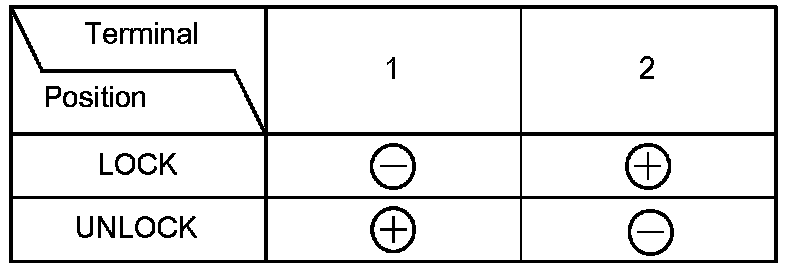

3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.





4. If the actuator does not operate as specified, replace it.
