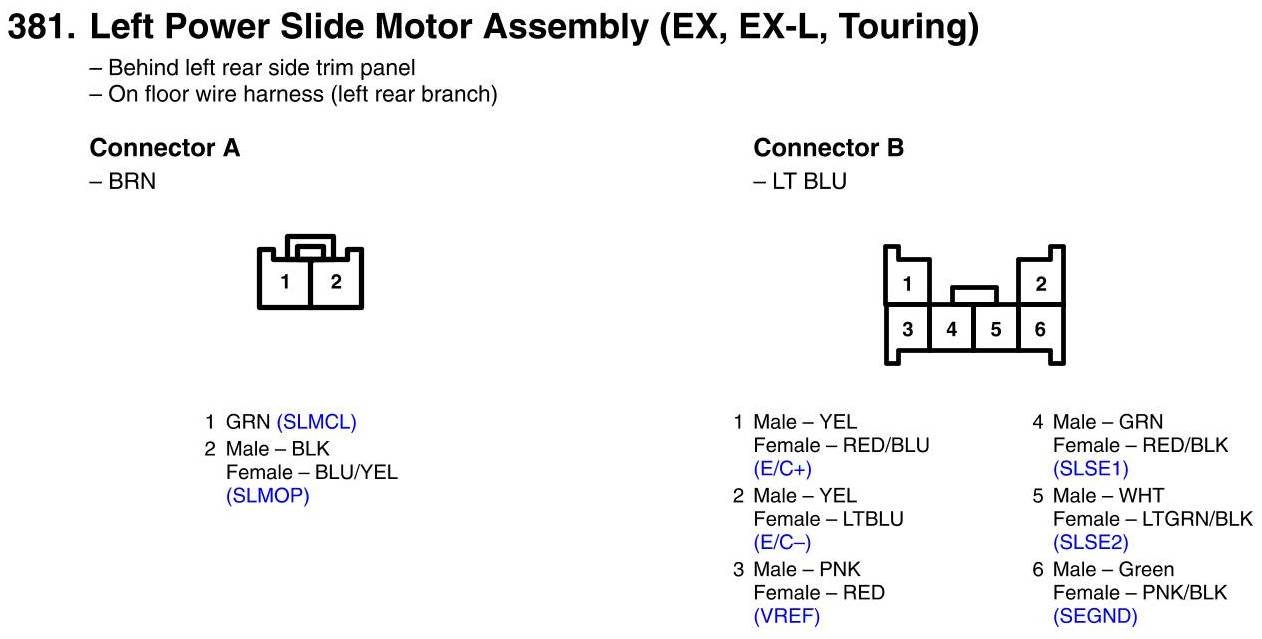

View 381 - Left Power Slide Motor Assembly Connector View (EX, EX-L, Touring)
View 381 - Left Power Slide Motor Assembly Connector View (EX, EX-L, Touring)
