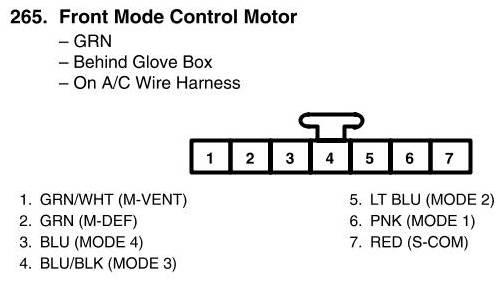

View 265 - Front Mode Control Motor Connector View
View 265 - Front Mode Control Motor Connector View
