Power Mirror Motor: Service and Repair
Power Mirror Actuator Replacement 1.
Remove the mirror.
Mirror Holder Replacement 2.

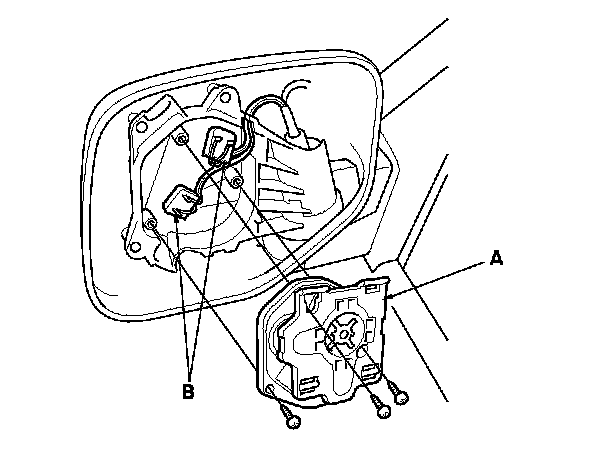

Remove the three screws from the actuator (A).
3.
Record the connector locations, then disconnect the connectors (B) and remove the actuator.
4.
Install in the reverse of removal.
5.
Operate the power mirror to check that the actuator works smoothly.
