Drive Belt: Service and Repair

Drive Belt Replacement

Special Tools Required

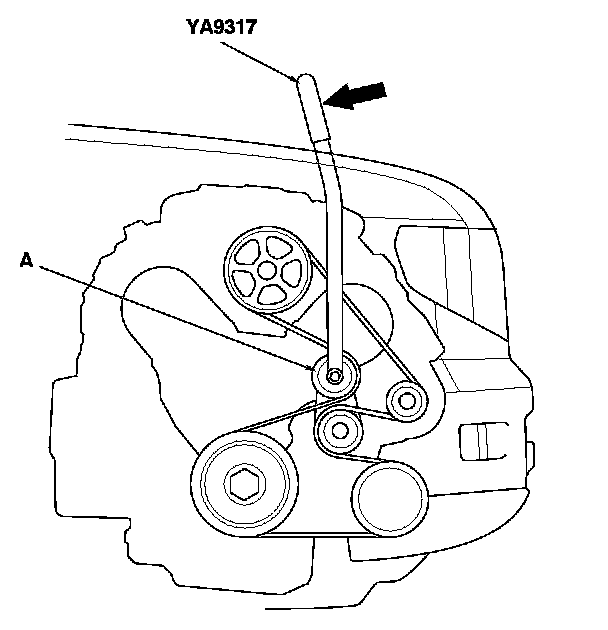

- Belt tension release tool Snap-on YA9317 or equivalent, commercially available.
1. Move the auto-tensioner (A) to relieve tension from the drive belt, then remove the drive belt.

2. Install the new belt in the reverse order of removal.
