Back Window Regulator: Service and Repair

Back Window Middle Glass Regulator Replacement

NOTE:

- Put on gloves to protect your hands.

- Take care not to bend or scratch the trim and panels.

1. Remove these items:
- Rear seat assembly Rear Seat Removal/Installation

- C-pillar trim, both sides Interior Trim Removal/Installation - Pillar Areas

- Rear seat belt lower anchor Rear Seat Belt Replacement

- Rear seat side trim, both sides Service and Repair

- Subwoofer for some models Speaker Test/Replacement

- Rear panel insulator Rear Panel Insulator Replacement

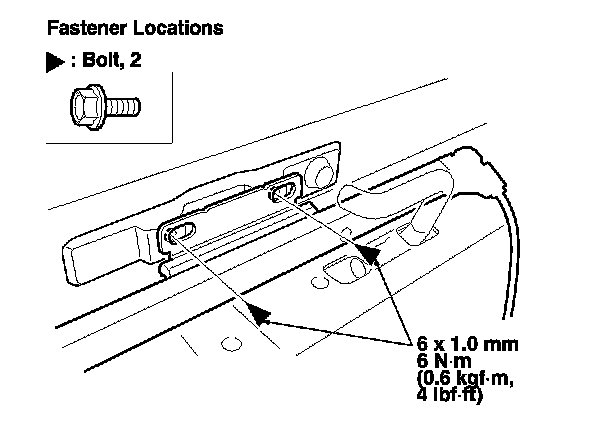

2. Remove the back window middle glass mounting bolts.

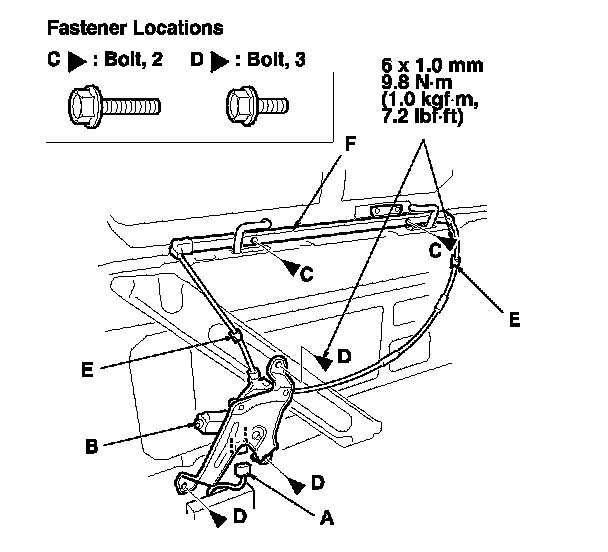

3. Disconnect the connector (A) from the regulator motor (B).

4. Remove the bolts (C, D), and detach the cable clips (E), then remove the regulator (F) and motor.

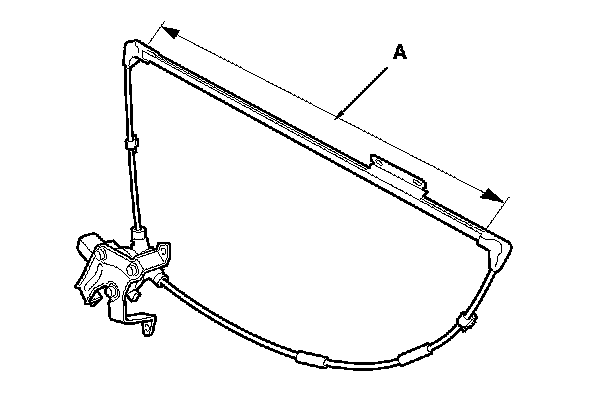

5. Apply multipurpose grease to the sliding surfaces of the regulator (A) where shown.

6. Install the regulator in the reverse order of removal, and note these items:
- Slide the glass right and left to make sure it moves freely without binding.

- Make sure the connector is plugged in properly.
