Wiper Arm: Adjustments

Wiper Arm/Washer Nozzle Adjustment

Windshield

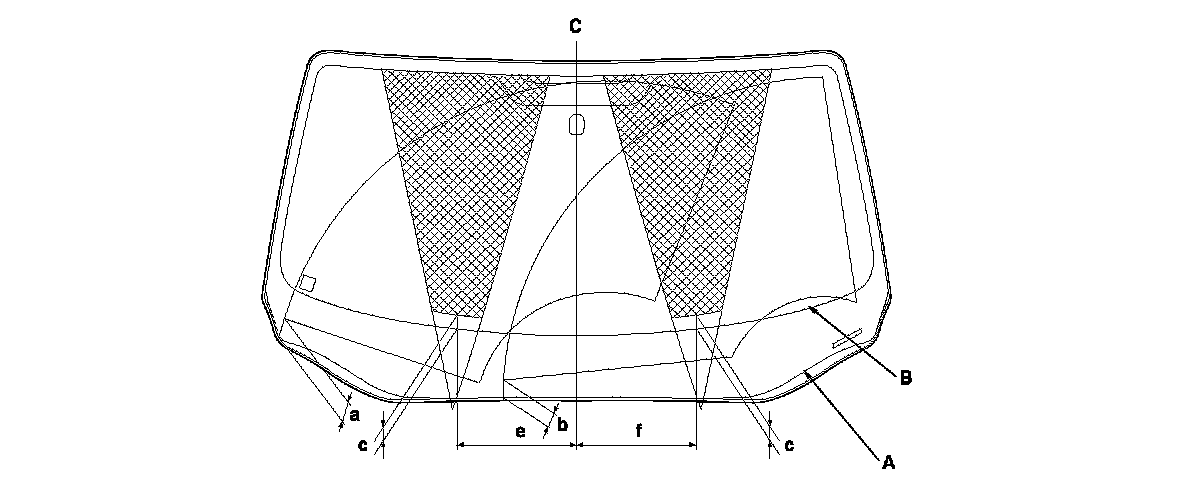

Wiper arms park position

1. When the wiper arms stop at the park (automatic stop) position, confirm that they are at the standard position.
a: Position at about 1.8 in. (47 mm) from the top of cowl cover (A)

b: Position at about 1.9 in. (50 mm) from the top of cowl cover (A)

Washer nozzle position

2. When you turn on the washers, confirm 50 % or more of the washer fluid lands within the spray area. If the spray area is not within the standard positions, adjust the nozzles.
