Wiper Blade: Service and Repair

Wiper Blade Replacement

1. Lift the windshield wiper arm off the windshield, raising the driver's side first, then the passenger's side.

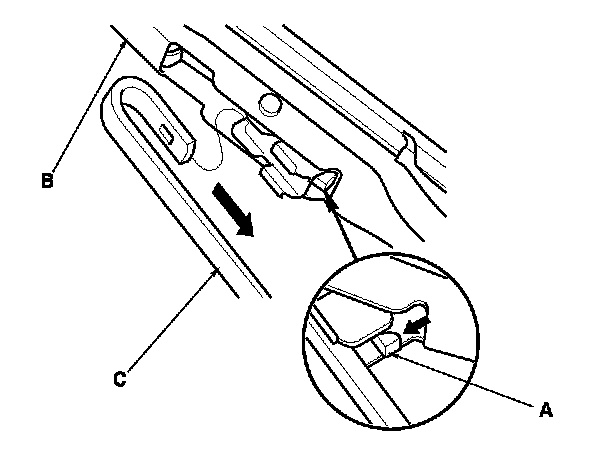

2. Press and hold the tab (A) and slide the wiper blade (B) toward the tab until it releases from the wiper arm (C).

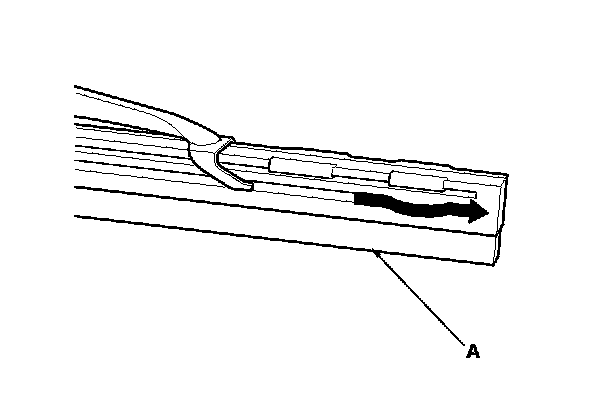

3. Slide out the old rubber (A).

4. Install a new rubber in the reverse order of removal.

5. Install the wiper blades onto the windshield wiper arms in the reverse order of removal.

6. Test by turning on the wipers. If the blades slip, turn off the wipers and seat the attachments more firmly.
