Navigation Display: Service and Repair

Navigation Display Unit Removal/Installation

1. Remove the audio unit Audio Unit Removal/Installation (With Navigation), then remove the center display visor Dashboard Center Display Visor Removal/Installation (Without Navigation).

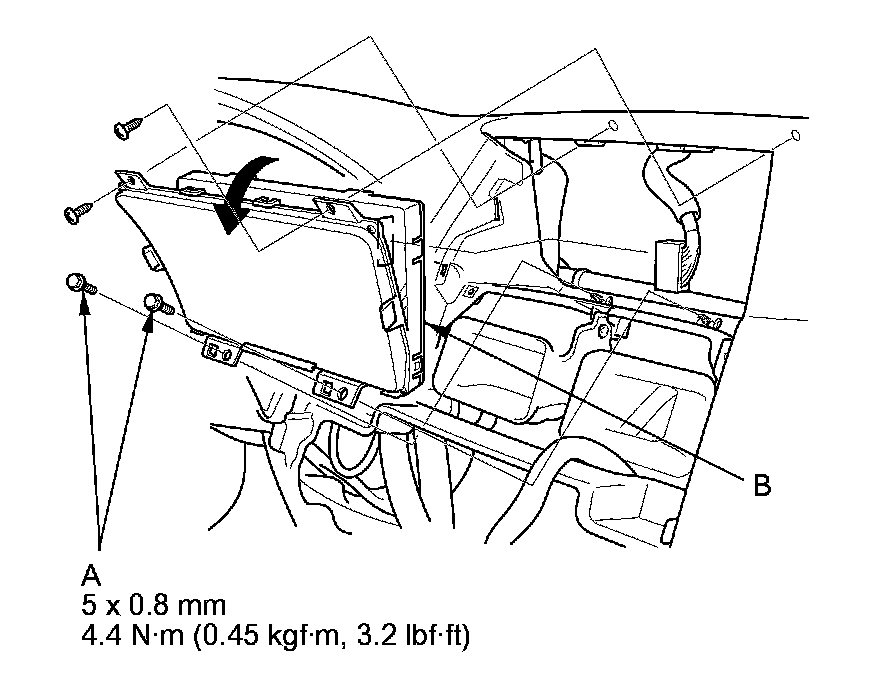

2. Remove the screws and bolts (A), then pull out the navigation display unit (B).

3. Install the unit in the reverse order of removal. Be careful not to drop the forward screw behind the dashboard.
