Seat Temperature Element: Testing and Inspection




Seat Heater Test

Driver's Seat

1. Remove the driver's seat Front Seat Removal/Installation.

2. Remove the seat back panel.

- 4-door Front Seat-back Cover Replacement (4-Door)
- 2-door Front Seat-back Cover Replacement (2-Door)

3. Disconnect the connector A (4P) and connector B (2P) from the seat heaters.










4. Check for continuity between seat heater connector B (2P) terminals No. 1 and No. 2. There should be continuity.

5. If the continuity is not as specified, replace the seat-back heater.

6. Reconnect seat heater connector B (2P) to the seat-back heater.

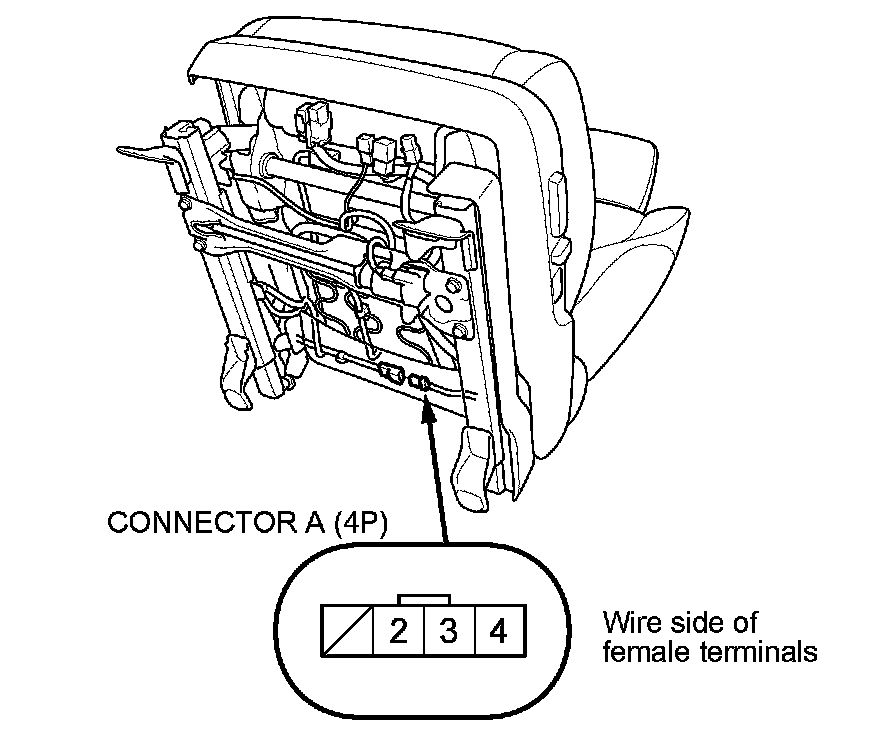

7. Check for continuity between seat heater connector A (4P) terminals No. 2 and No. 3, and terminals No. 3 and No. 4. There should be continuity.

8. If the continuity is not as specified, replace the seat cushion heater.

Front Passenger's Seat

1. Remove the front passenger's seat Front Seat Removal/Installation.

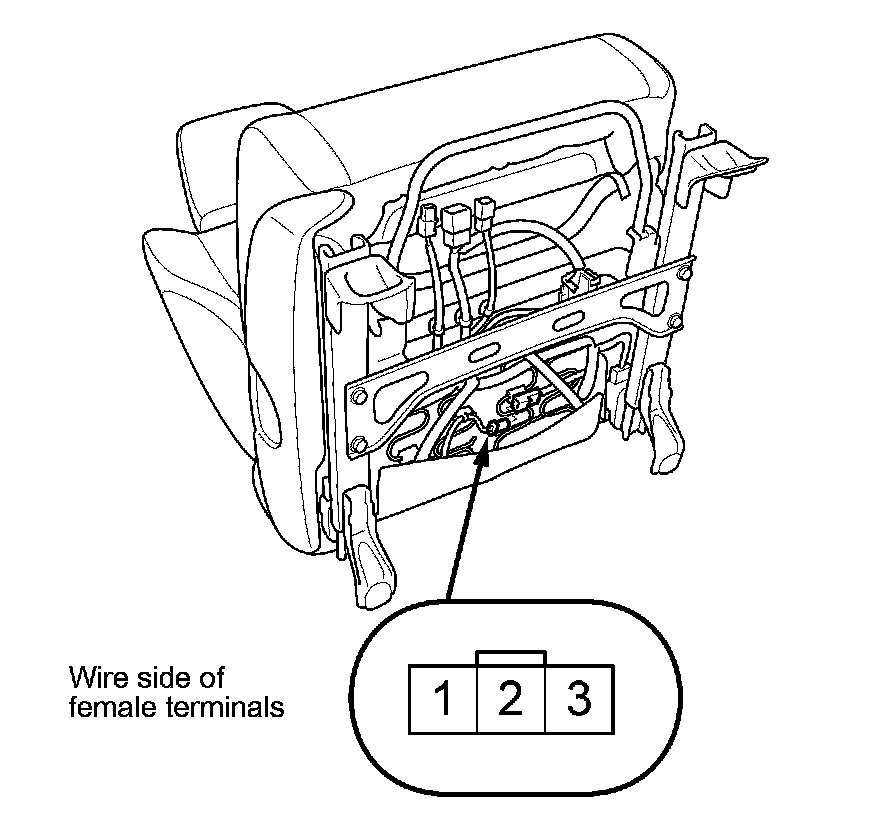

2. Disconnect the 3P connector (A) from the seat heater.





3. Check for continuity between seat heater 3P connector terminals No. 1 and No. 3 and terminals No. 2 and No. 3. There should be continuity.

4. If the continuity is not as specified, replace the seat heater.
