Front Seat Slide Lever Replacement




Front Seat Slide Lever Replacement

Driver's seat (manual height adjustable seat)/passenger's seat

NOTE:

- Put on gloves to protect your hands.
- Take care not to tear or damage the seat covers.

1. Remove the front seat Front Seat Removal/Installation.

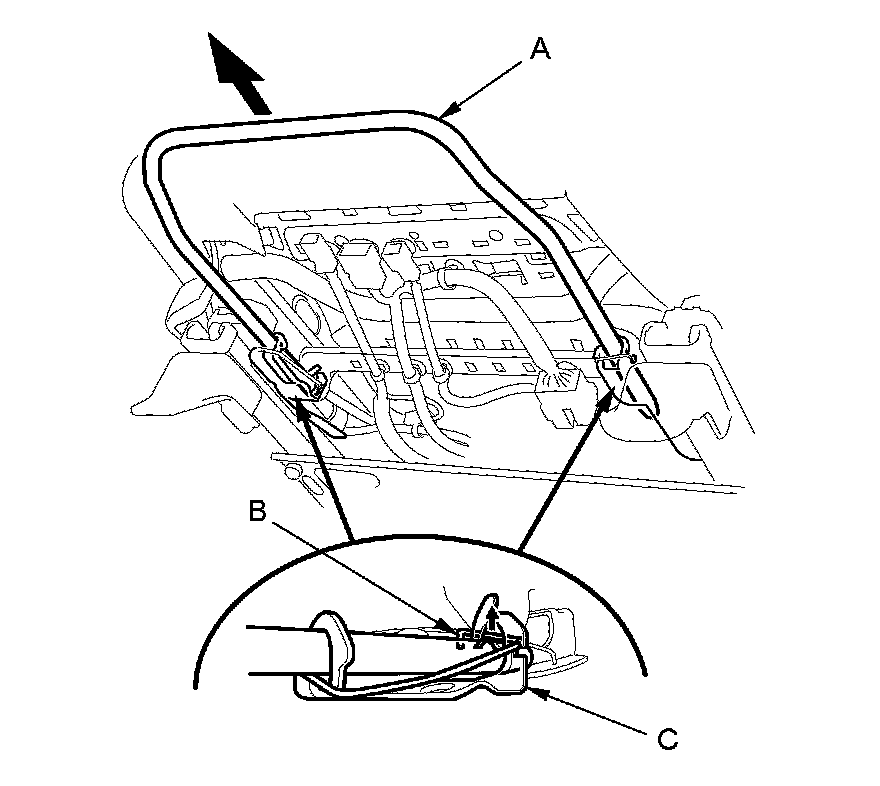

2. Lift up the front seat, and pull out the slide lever (A) while prying up the spring (B) from the lever holders (C) of both seat tracks, then remove the lever.





3. Install the slide lever by pushing on it into the lever holders of both seat tracks until the springs snap the slits in the lever.

4. Apply multipurpose grease to the pivot areas of the slide locks.
