Cabin Temperature Sensor / Switch: Service and Repair
In-Car Temperature Sensor Replacement 1.
Remove the driver's inner dashboard trim
Driver's Inner Dashboard Trim Removal/Installation.
2.

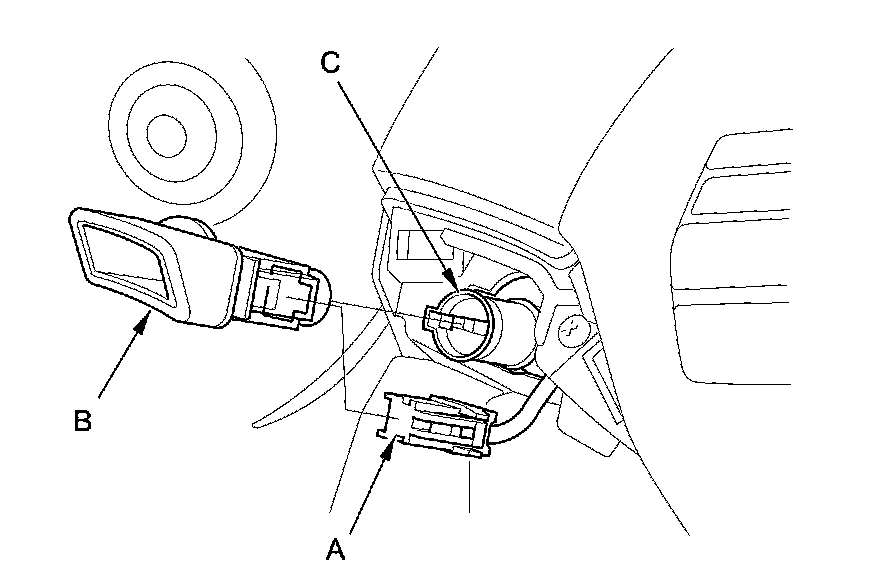

Disconnect the connector (A), and remove the in-car temperature sensor (B) from the air hose (C).
3.
Install the sensor in the reverse order of removal. Be sure to connect the air hose securely.
