Audio-HVAC Display Unit Removal/Installation (Without Navigation)




Audio-HVAC Display Unit Removal/Installation

Without Navigation

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the dashboard.

1. Remove the audio unit Audio Unit Removal/Installation (With Navigation) and the center display visor Dashboard Center Display Visor Removal/Installation (Without Navigation).

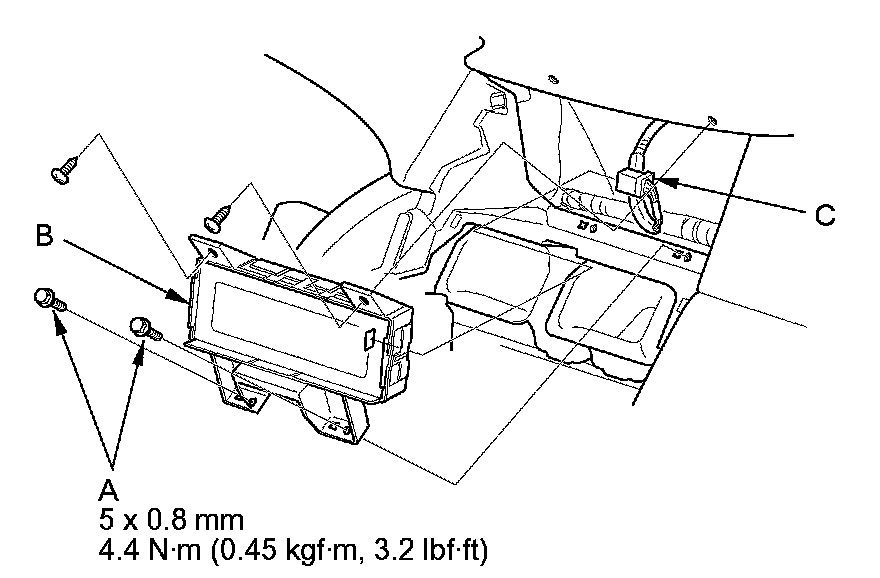

2. Remove the screws and bolts (A), then pull out the audio-HVAC display unit (B).





3. Disconnect the connector (C), and remove the audio-HVAC display unit.

4. Install the audio-HVAC display unit in the reverse order of removal.
