Climate Control Unit Removal/Installation (With Navigation)




Climate Control Unit Removal/Installation

With Navigation System

1. Remove the passenger's dashboard undercover Dashboard Center Lower Cover Removal/Installation.

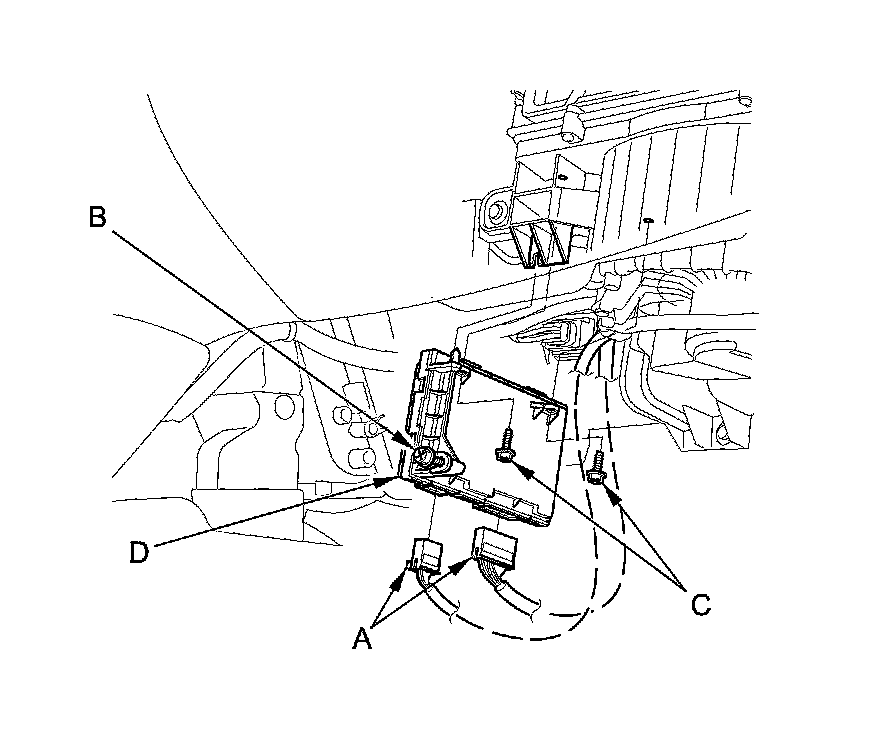

2. Disconnect the connectors (A). Loosen the bolt (B) and remove the bolts (C) from the climate control unit (D).





3. Install the control unit in the reverse order of removal. After installation, operate the various functions to make sure they work properly.

4. Run the self-diagnostic function to confirm that there are no problems in the system How to Troubleshoot the Climate Control System.
