Lighting and Horns: Service and Repair

Exterior Lights Bulb Replacement

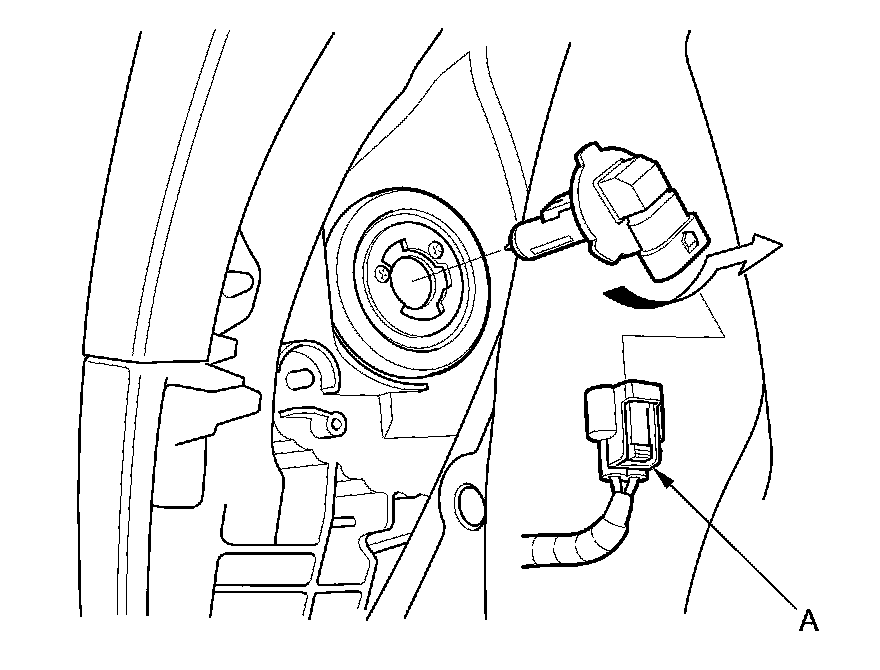

Headlight (High Beam)

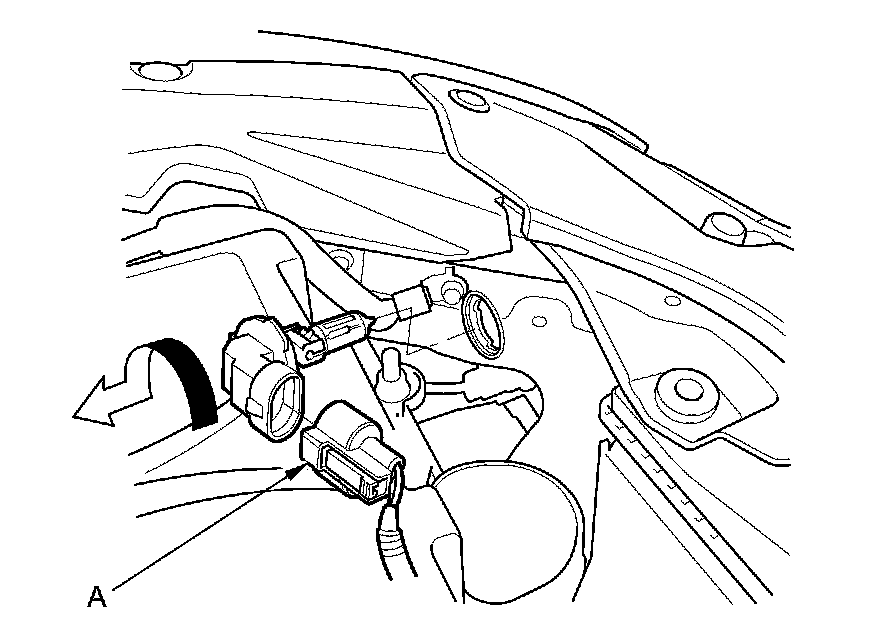

1. Disconnect the 2P connector (A) from the headlight.









2. Turn the bulb socket 45 ° counterclockwise to remove the bulb.

3. Install a new bulb in the reverse order of removal.

Headlight (Low Beam)

1. Remove the inner fender Front Inner Fender Replacement.

2. Disconnect the 2P connector (A) from the headlight.









3. Turn the bulb socket 45 ° counterclockwise to remove the bulb.

4. Install a new bulb in the reverse order of removal.

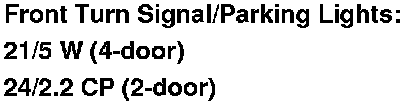

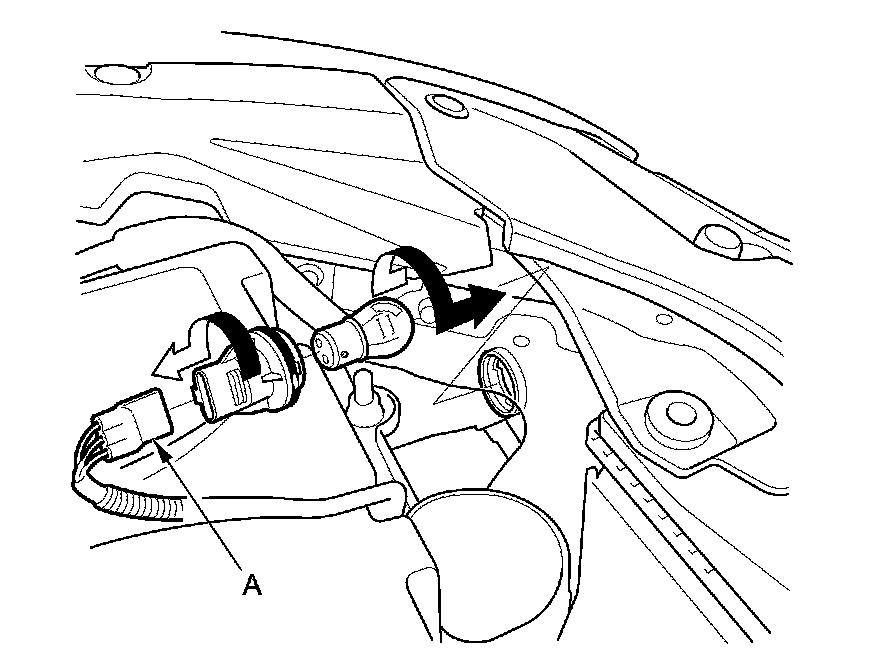

Front Turn Signal/Parking Lights

1. Disconnect the 3P connector (A) from the front turn signal/parking lights.





NOTE: The illustration shows 4-door.





2. Turn the bulb socket 45 ° counterclockwise to remove the bulb.

3. Install a new bulb in the reverse order of removal.

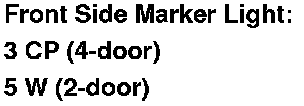

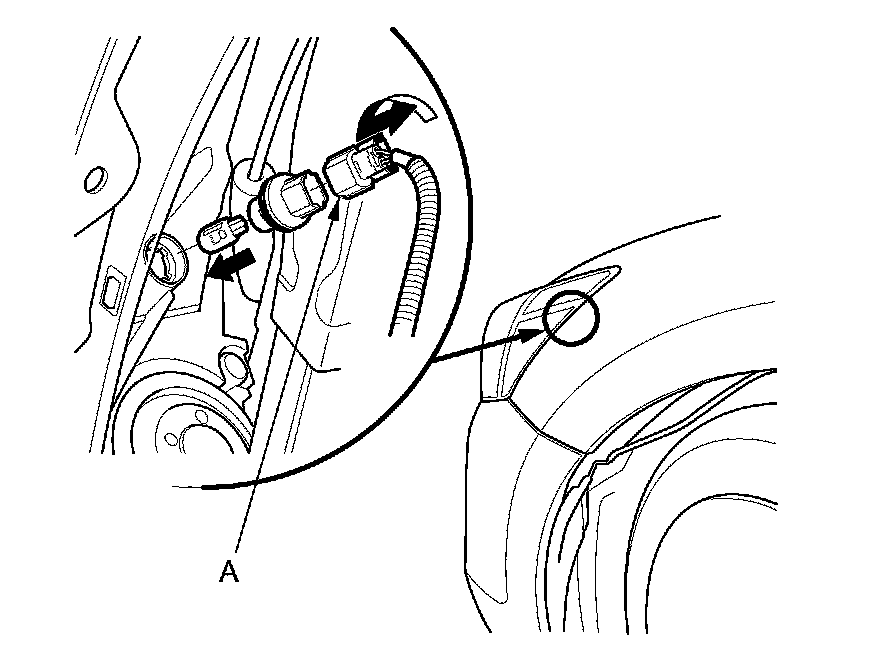

Front Side Marker Light

1. Remove the inner fender Front Inner Fender Replacement.

2. Disconnect the 2P connector (A) from the front side marker light.





NOTE: The illustration shows 4-door.





3. Turn the bulb socket 45 ° counterclockwise to remove the bulb.

4. Install a new bulb in the reverse order of removal.

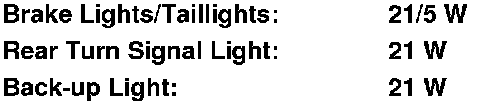

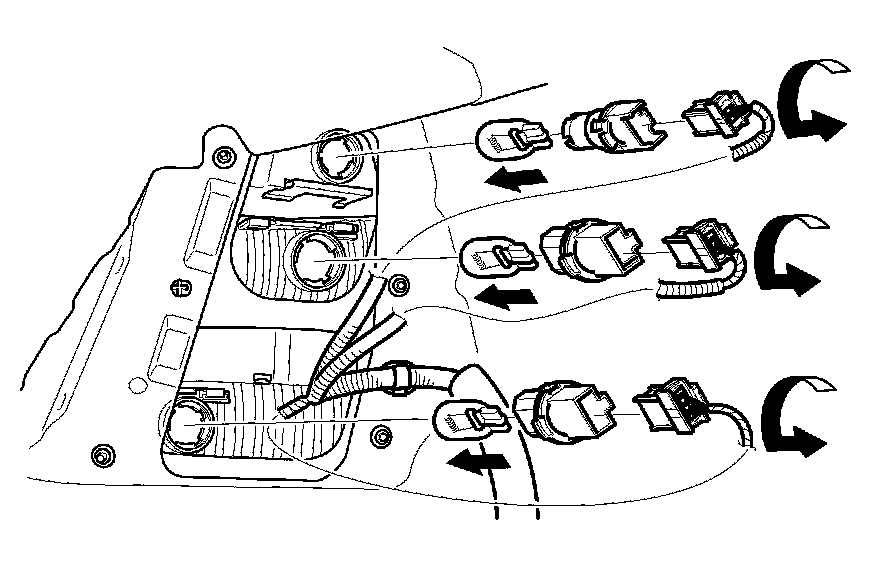

Taillight/Brake Light, Back-Up Light, and Rear Turn Signal Light (4-door)

1. Open the trunk lid, and remove the trunk side trim panel Interior Trim Removal/Installation - Trunk Area.

2. Disconnect the connectors from the lights.









3. Turn the bulb socket 45 ° counterclockwise to remove the bulb.

4. Install new bulb(s) in the reverse order of removal.

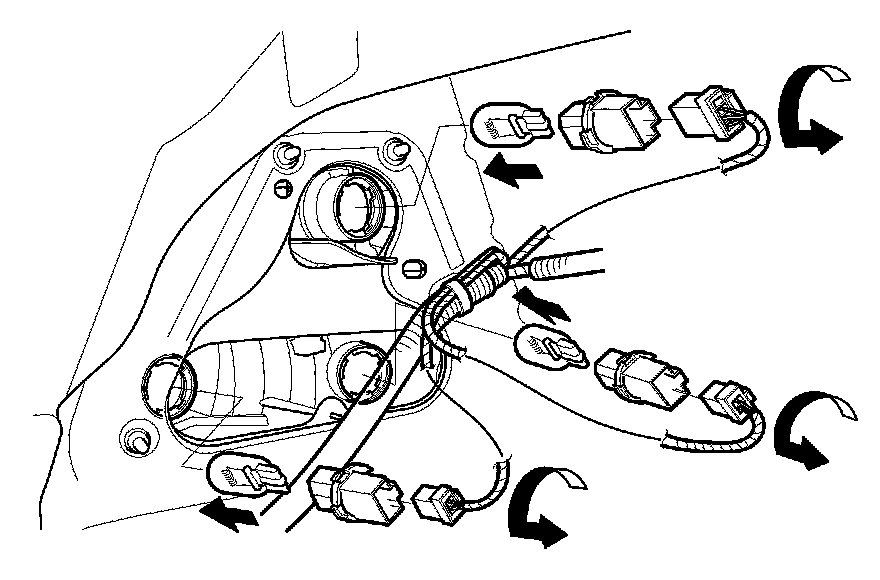

Taillight/Brake Light, Back-Up Light, and Rear Turn Signal Light (2-door)

1. Open the trunk lid, and remove the trunk side trim panel Interior Trim Removal/Installation - Trunk Area.

2. Disconnect the connectors from the lights.









3. Turn the bulb socket 45 ° counterclockwise to remove the bulb.

4. Install new bulb(s) in the reverse order of removal.
