Hazard Warning Switch Test/Replacement




Hazard Warning Switch Test/Replacement

1. Remove these items:

- Center vent for with navigation system Dashboard Center Vent Removal/Installation
- Audio unit for without navigation system Audio Unit Removal/Installation (Without Navigation)

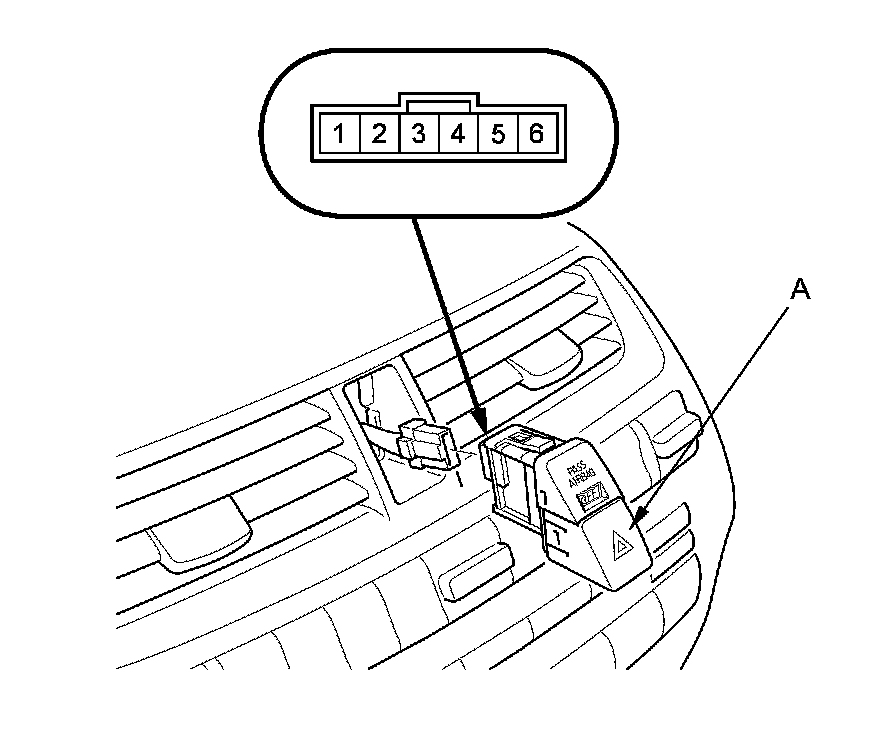

2. Remove the hazard warning switch (A).

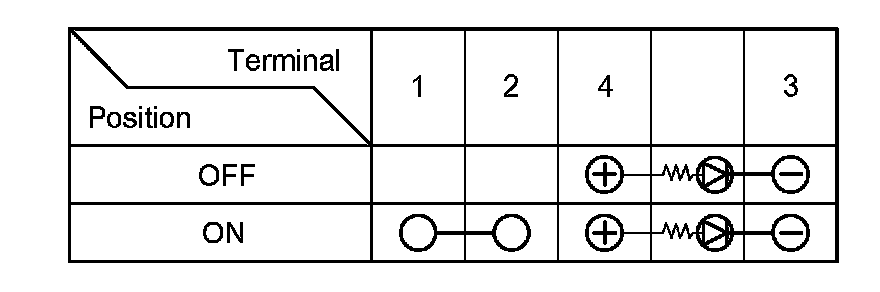

3. Check for continuity between the terminals in each switch position according to the table.

NOTE: Make sure the correct test lead (+ or -) is placed on the terminal.





4. If the continuity is not as specified, replace the hazard warning switch.
