Ignition Key Light Test
Ignition Key Light Test 1.
Remove the steering column upper and lower covers
Service and Repair.
2.

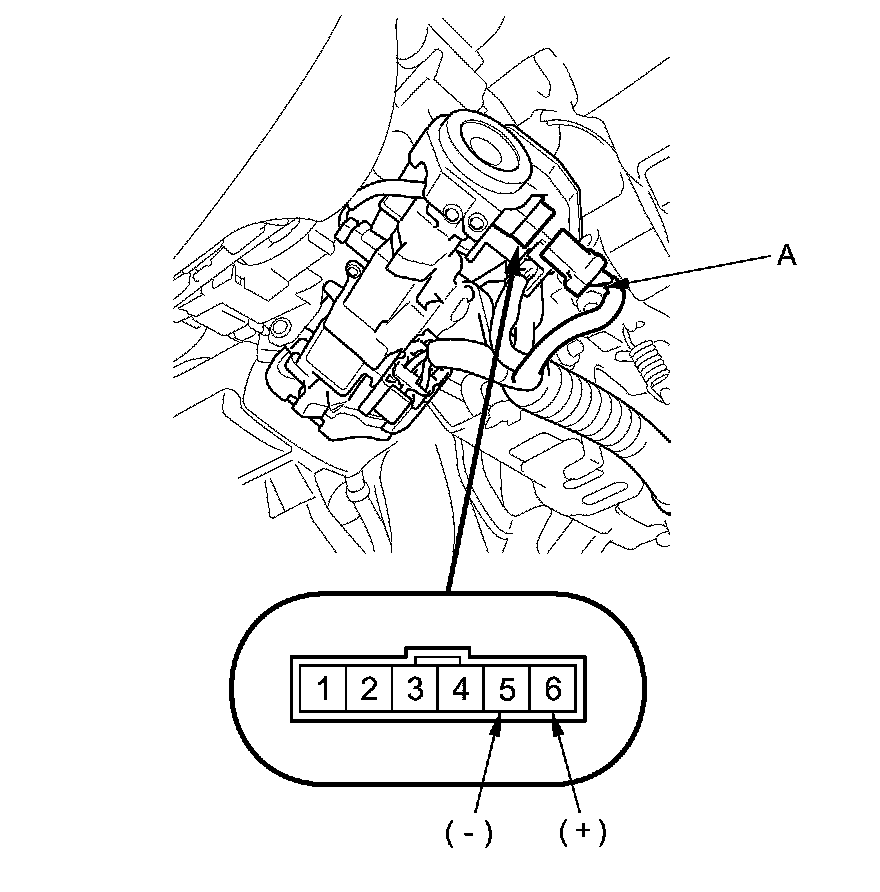

Disconnect the 6P connector (A).
3.
The LED should come on when power is connected to terminal No. 6 and ground is connected to terminal No. 5.
4.
If the LED does not come on, the ignition key switch is faulty; replace the steering lock assembly
Service and Repair.
