Coolant: Testing and Inspection




Coolant Check

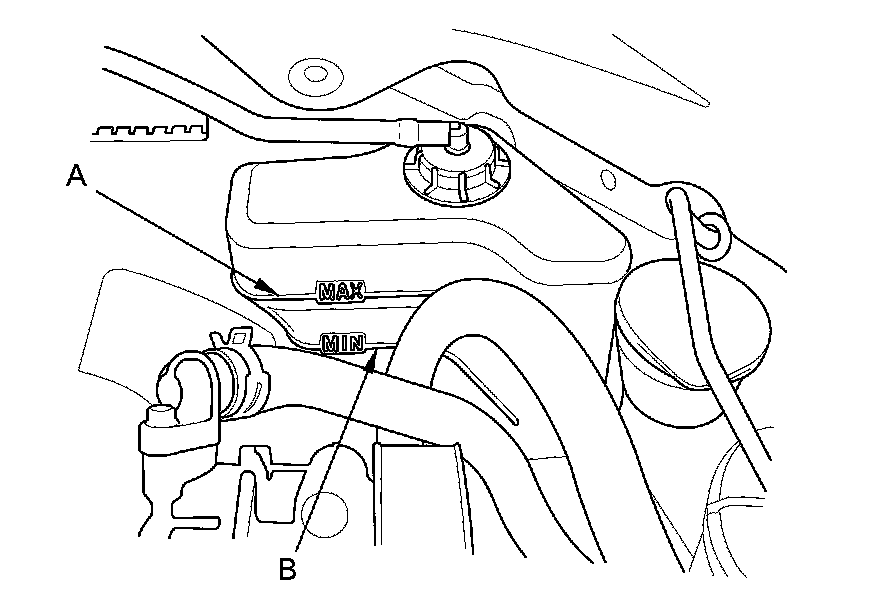

1. Check the coolant level in the coolant reservoir. Make sure it is between the MAX mark (A) and the MIN mark (B).





2. If the coolant level in the coolant reservoir is at or below the MIN mark, add coolant to bring it up to the MAX mark, then inspect the cooling system for leaks.
