Secondary HO2S Replacement
Secondary HO2S ReplacementSpecial Tools Required -
O2 Sensor Wrench Snap-on S6176 or equivalent, commercially available
1.

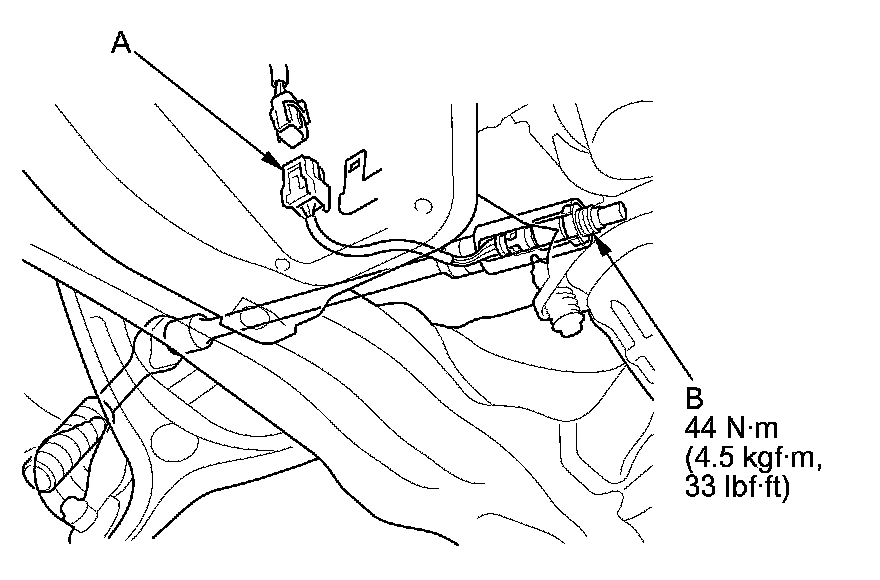

Disconnect the secondary HO2S 4P connector (A), then remove the secondary HO2S (B).
2.
Install the parts in the reverse order of removal.
