CMP Pulse Plate B Replacement (Except PZEV Models)
CMP Pulse Plate B Replacement 1.
Remove the cylinder head cover
Cylinder Head Cover Removal (Except PZEV Models).
2.
Remove camshaft position (CMP) sensor B
CMP Sensor B Replacement.
3.

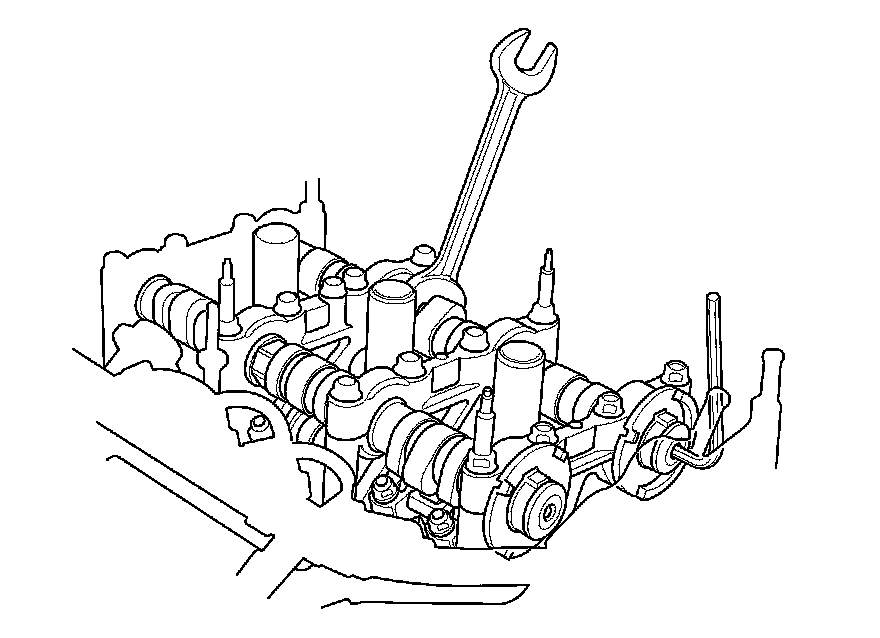

Hold the camshaft with an open-end wrench, then loosen the bolt.
4.

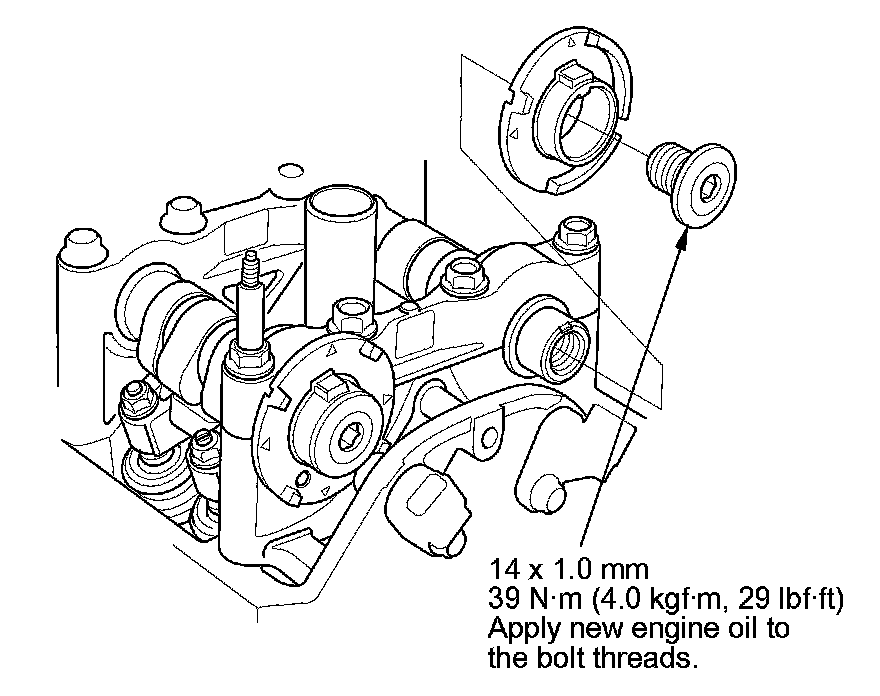

Remove CMP pulse plate B.
5.
Install CMP pulse plate B in the reverse order of removal.
