CKP Pulse Plate Replacement
CKP Pulse Plate Replacement 1.
Remove the crankshaft from the engine block
Crankshaft and Piston Removal.
2.

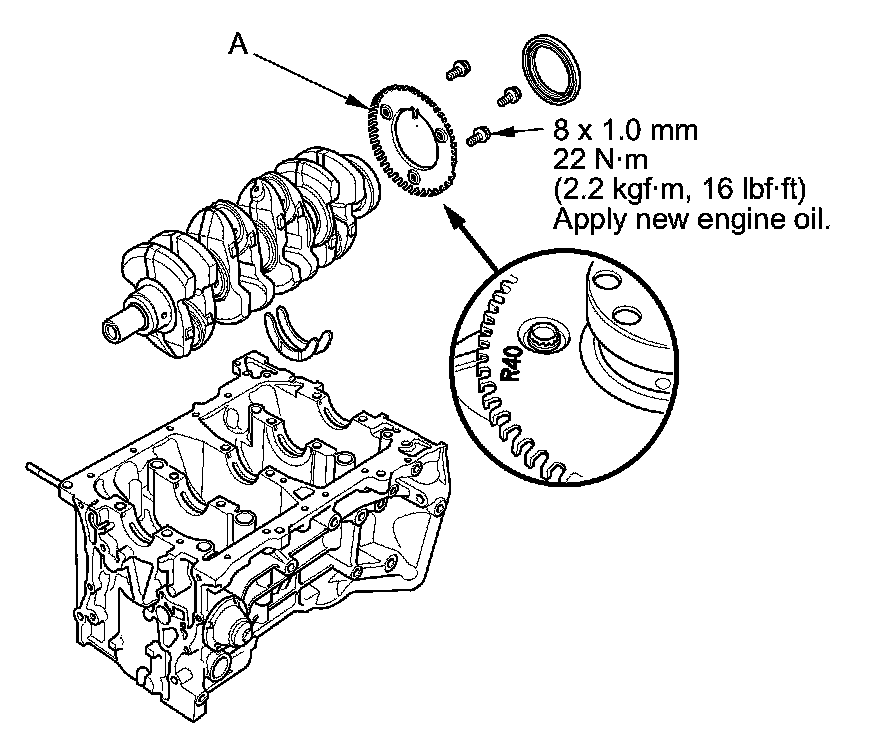

Remove the CKP pulse plate (A) from the crankshaft.
NOTE: Be careful not to damage the journal and the CKP pulse plate.
3.
Install the CKP pulse plate in the reverse order of removal.
NOTE: When installing the crankshaft, refer to the crankshaft installation procedure
Crankshaft Installation.
