Overhaul Specifications

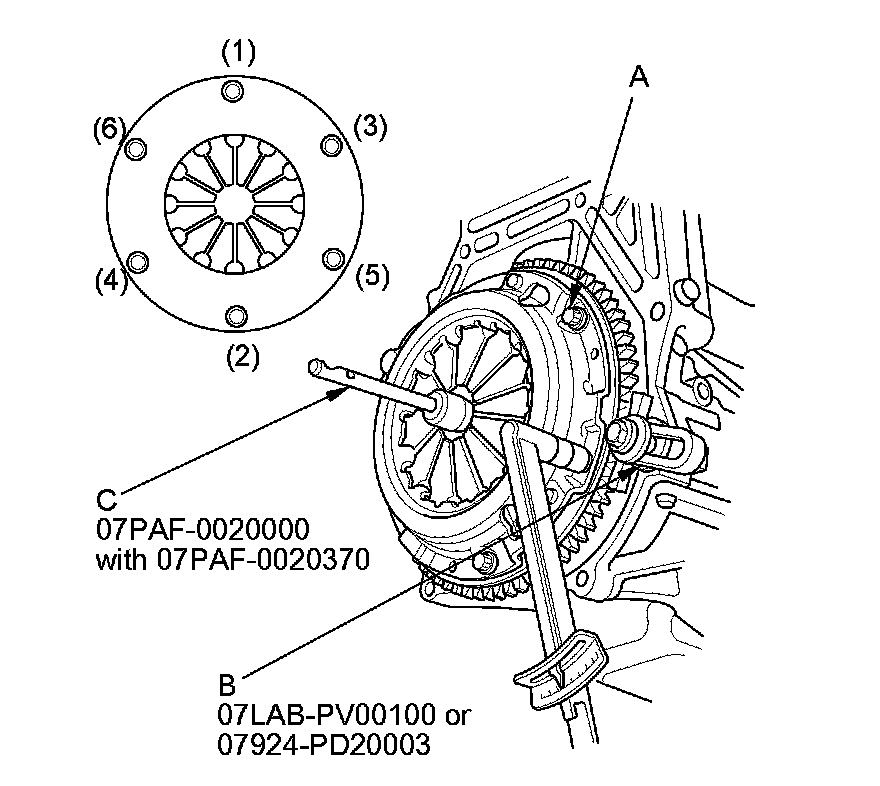

Pressure plate
25 Nm (2.6 kgf-m, 19 ft lb)
Tighten the bolts in several steps to prevent warping the diaphragm spring
For information regarding Clutch Service Specifications, please refer to Service and Repair, Removal and Replacement.
Service and Repair
