Clutch Interlock Switch Test

Clutch Interlock Switch Test

M/T model

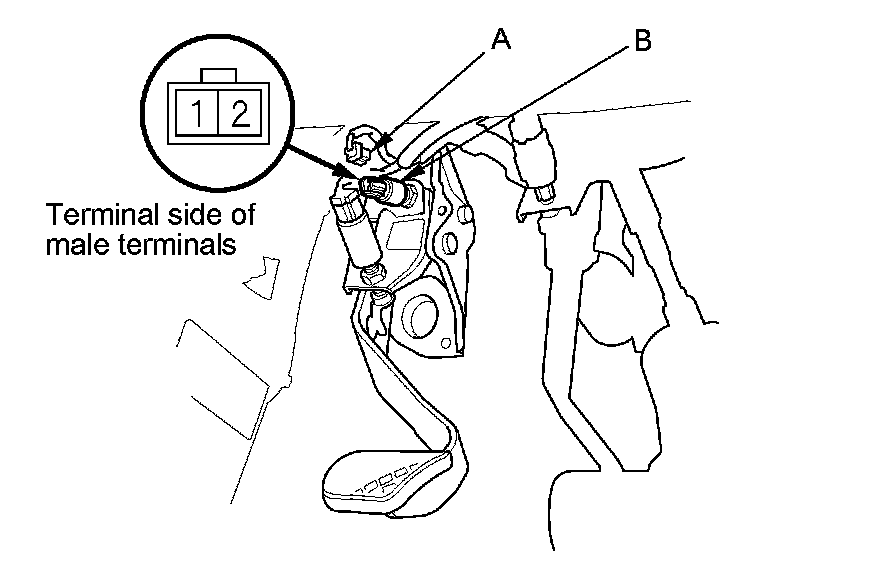

1. Disconnect the clutch interlock switch connector (A).

2. Remove the clutch interlock switch (B).

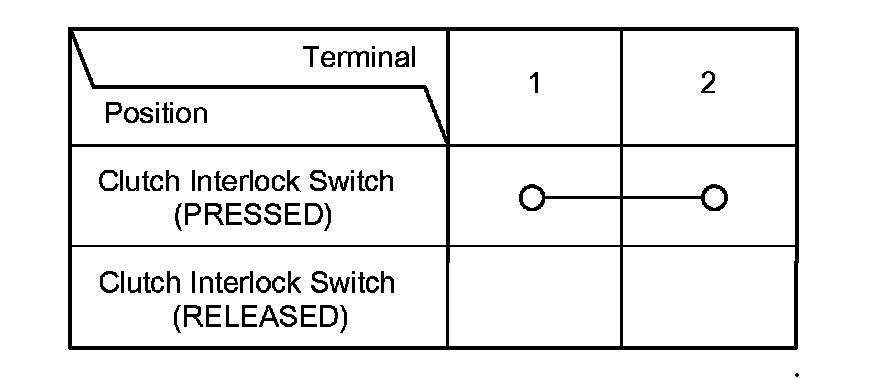

3. Check for continuity between the terminals according to the table.

- If the continuity is not as specified, replace the clutch interlock switch Clutch Interlock Switch Replacement.
- If OK, install the clutch interlock switch and adjust the pedal height Adjustments.
