Advanced Diagnostics - DTC P0533: A/C Pressure Sensor Circuit High Voltage











General Description
The A/C pressure sensor measures the pressure change of the air conditioning refrigerant. The signal from the A/C pressure sensor is low voltage at low pressure (when the air conditioning load is low) and high voltage at high pressure (when the air conditioning load is high). The powertrain control module (PCM) compares the expected voltage to the A/C pressure sensor output voltage. When the A/C pressure sensor output voltage is higher than the expected voltage for a set time, the PCM detects a malfunction and stores a DTC.

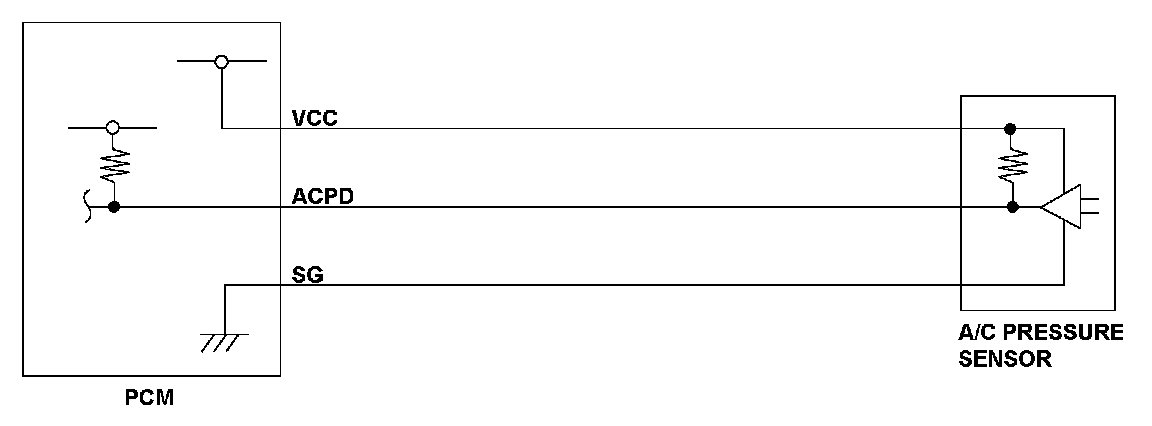

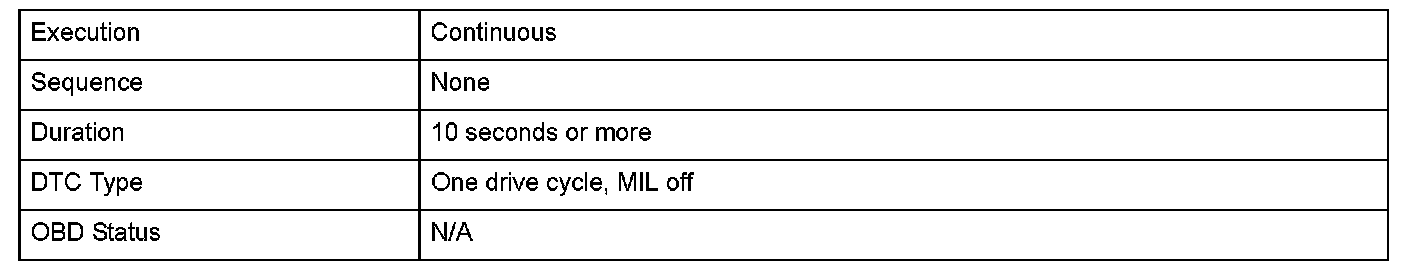

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

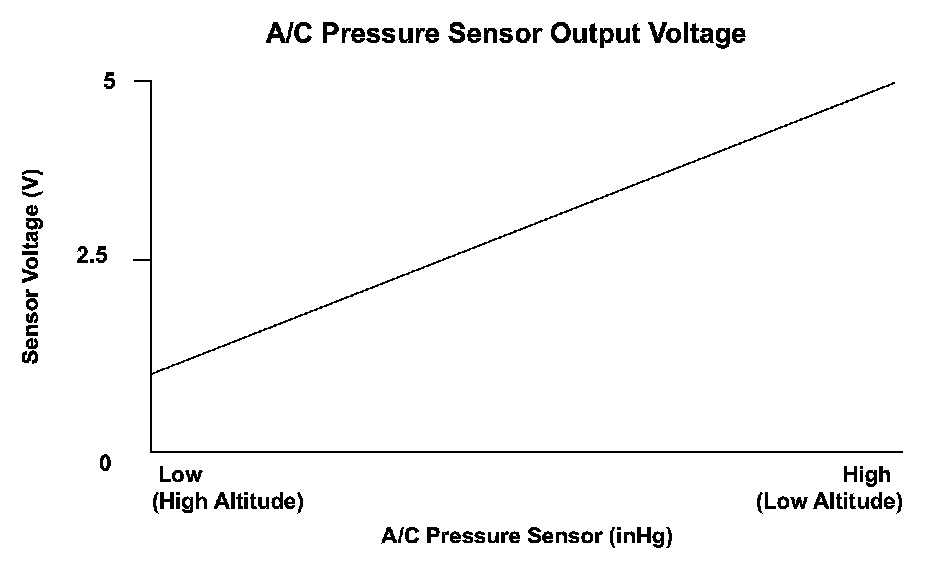

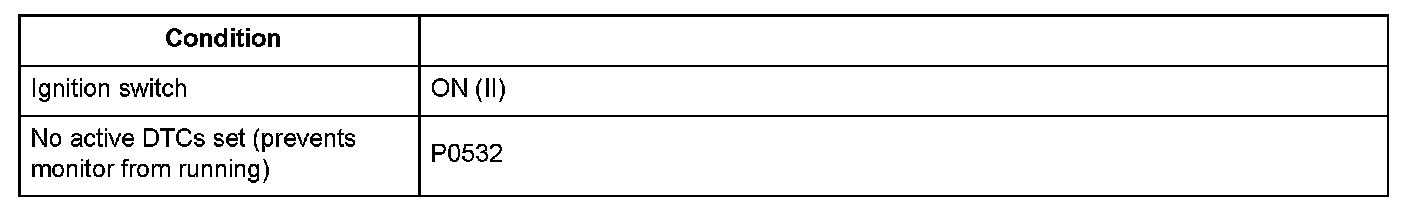

Enable Conditions






Malfunction Threshold
The A/C pressure sensor output voltage is 4.76 V or more for at least 10 seconds.

Diagnosis Details

Conditions for setting the DTC
When a malfunction is detected, a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory. The MIL does not come on.

Conditions for clearing the DTC
The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
