Door Key Cylinder Switch Test

Door Key Cylinder Switch Test

1. Remove the driver's door panel.
- 2-door

- 4-door Service and Repair

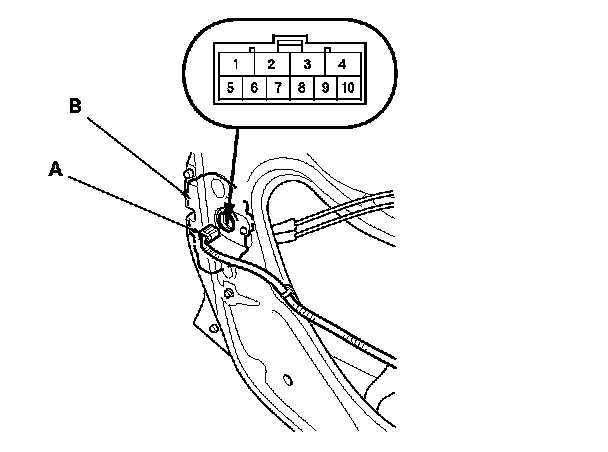

2. Disconnect the 10P connector (A) from the door lock actuator (key cylinder switch) (B).

3. Check for continuity between the terminals.
- There should be continuity between terminals No. 9 and No. 5 when the door key cylinder switch is in LOCK position. (With security)

- There should be no continuity between terminals No. 9 and No. 5 when the door key cylinder switch is in the neutral or UNLOCK position. (With security)

- There should be continuity between terminals No. 8 and No. 5 when the door key cylinder switch is in UNLOCK position.

- There should be no continuity between terminals No. 8 and No. 5 when the door key cylinder switch is in the neutral or LOCK position.

- There should never be continuity between terminals No. 8 and No. 9 in any door lock switch position.

4. If the continuity is not as specified, the door key cylinder switch is faulty; replace the door latch. Service and Repair
