Auxiliary Input / Output Jack, Entertainment System
>>

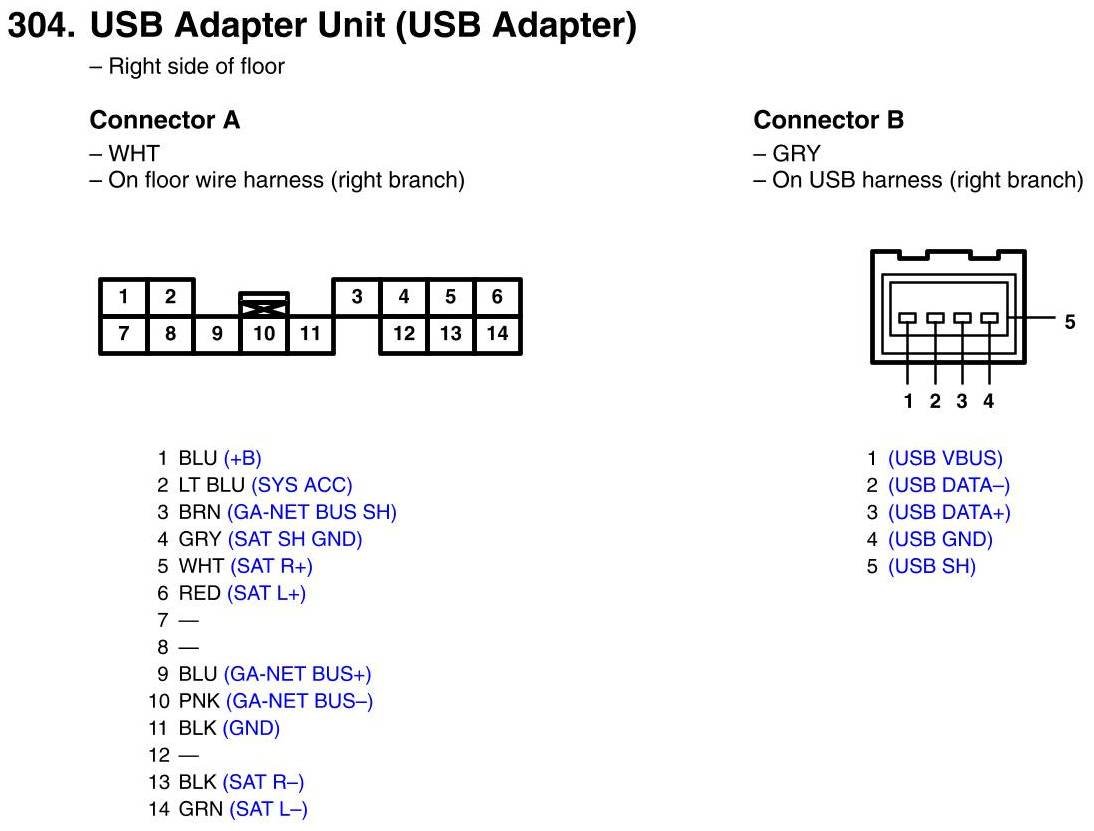

USB Adapter Unit Connector View
USB Adapter Unit Connector View
