Home >> Honda >> 2010 >> Civic L4-1.8L CNG >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 132 - CMP Sensor Connector View (Except Si)

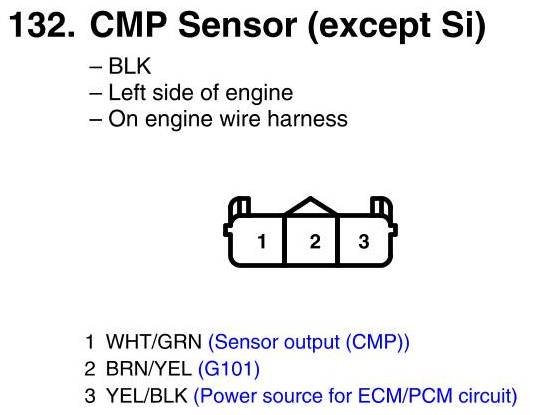

View 132 - CMP Sensor Connector View (Except Si)
