Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2010
>>
Civic L4-1.8L CNG
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

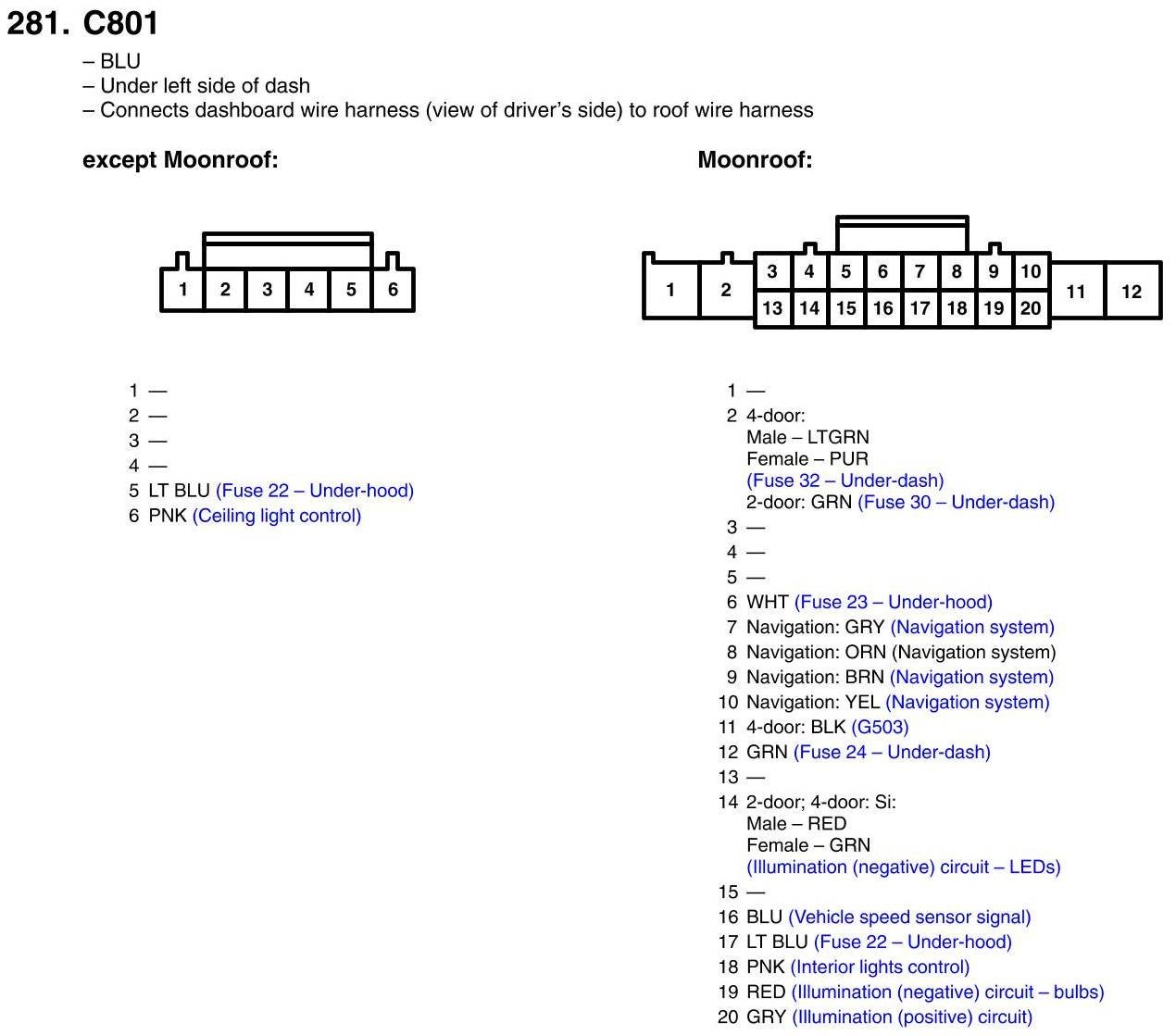

View 281 - C801 Connector View
View 281 - C801 Connector View
