Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2010
>>
Civic L4-1.8L CNG
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Keyless Starting System
>>
System Diagram
>>

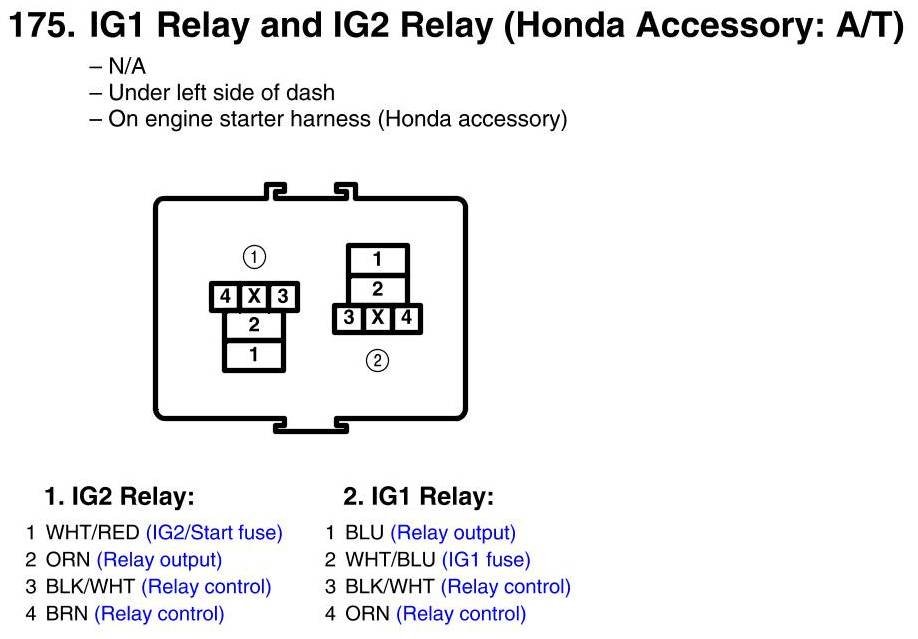

IG1 Relay And IG2 Relay Connector View (Honda Accessory: A/T)
IG1 Relay And IG2 Relay Connector View (Honda Accessory: A/T)
