Civic L4-1.8L CNG
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Belt Tensioner
>>

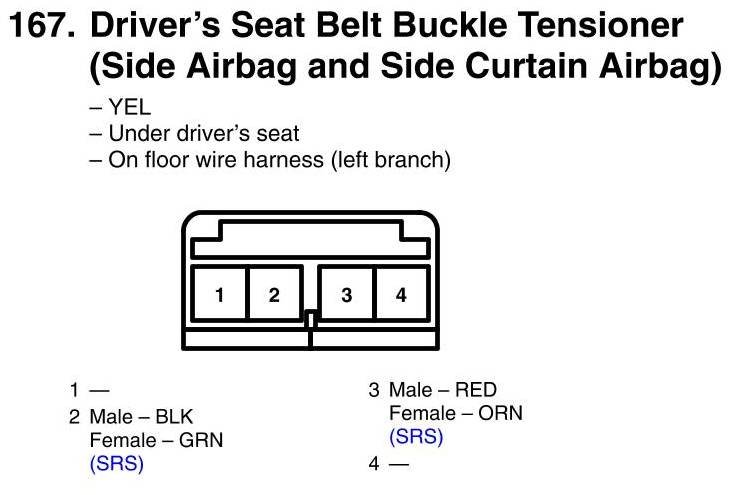

Seat Belt Buckle Tensioner, Driver's Connector View (Side Airbag And Side Curtain Airbag)
Seat Belt Buckle Tensioner, Driver's Connector View (Side Airbag And Side Curtain Airbag)
