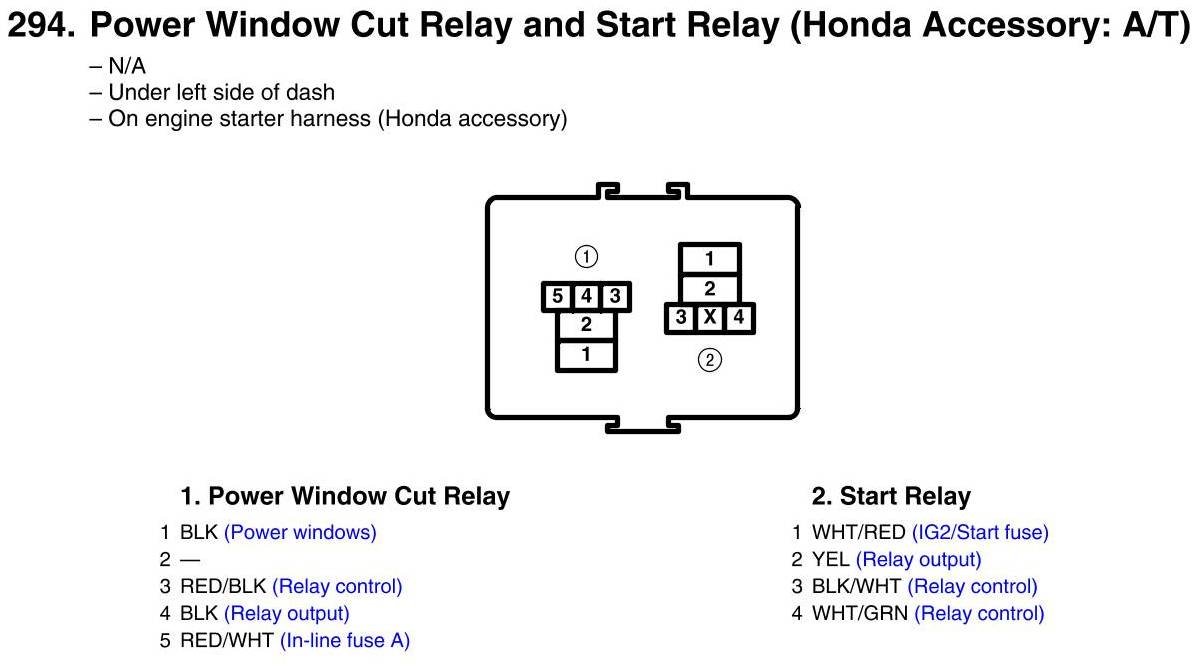

Power Window Cut Relay And Start Relay Connector View (Honda Accessory: A/T)
Power Window Cut Relay And Start Relay Connector View (Honda Accessory: A/T)
