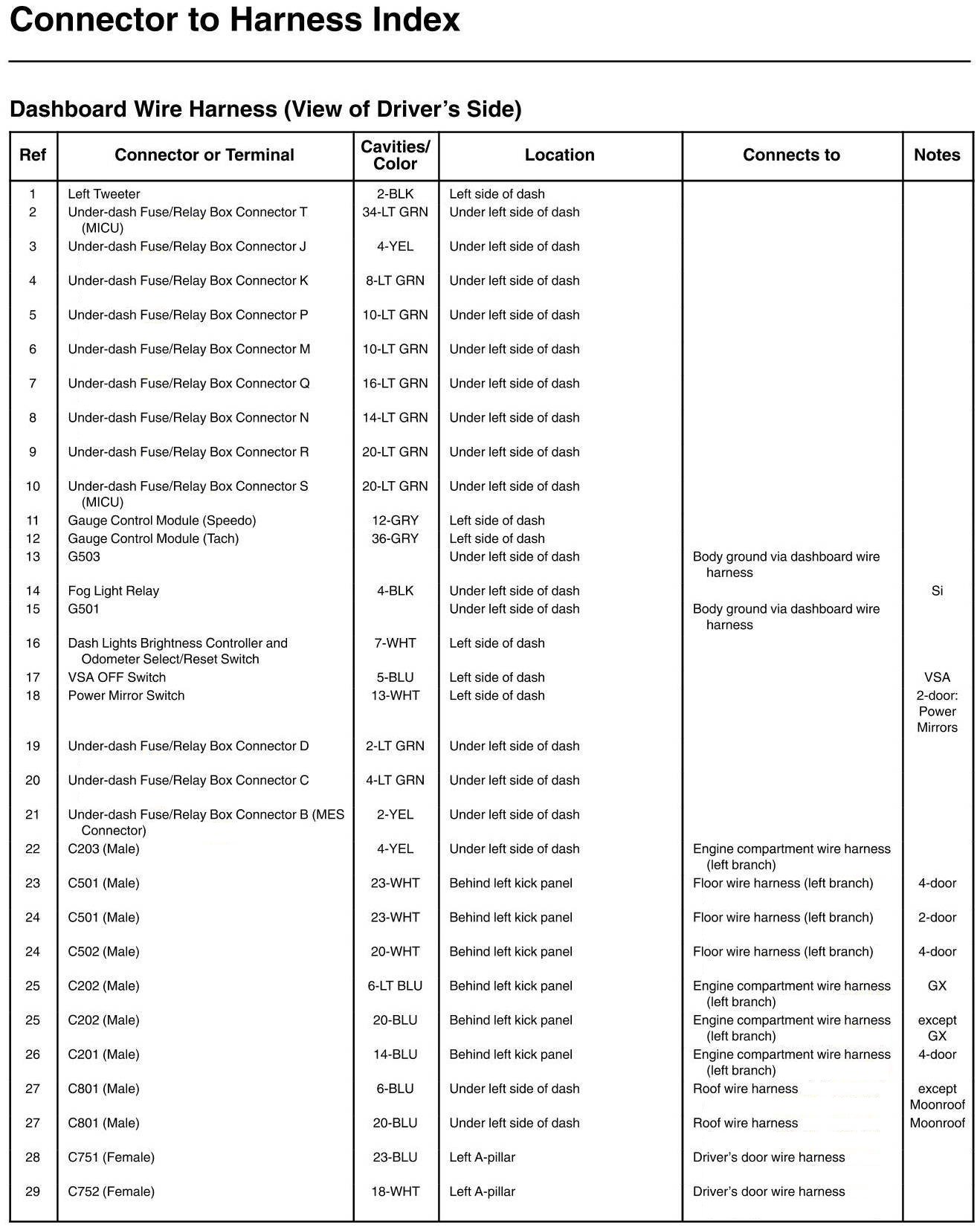

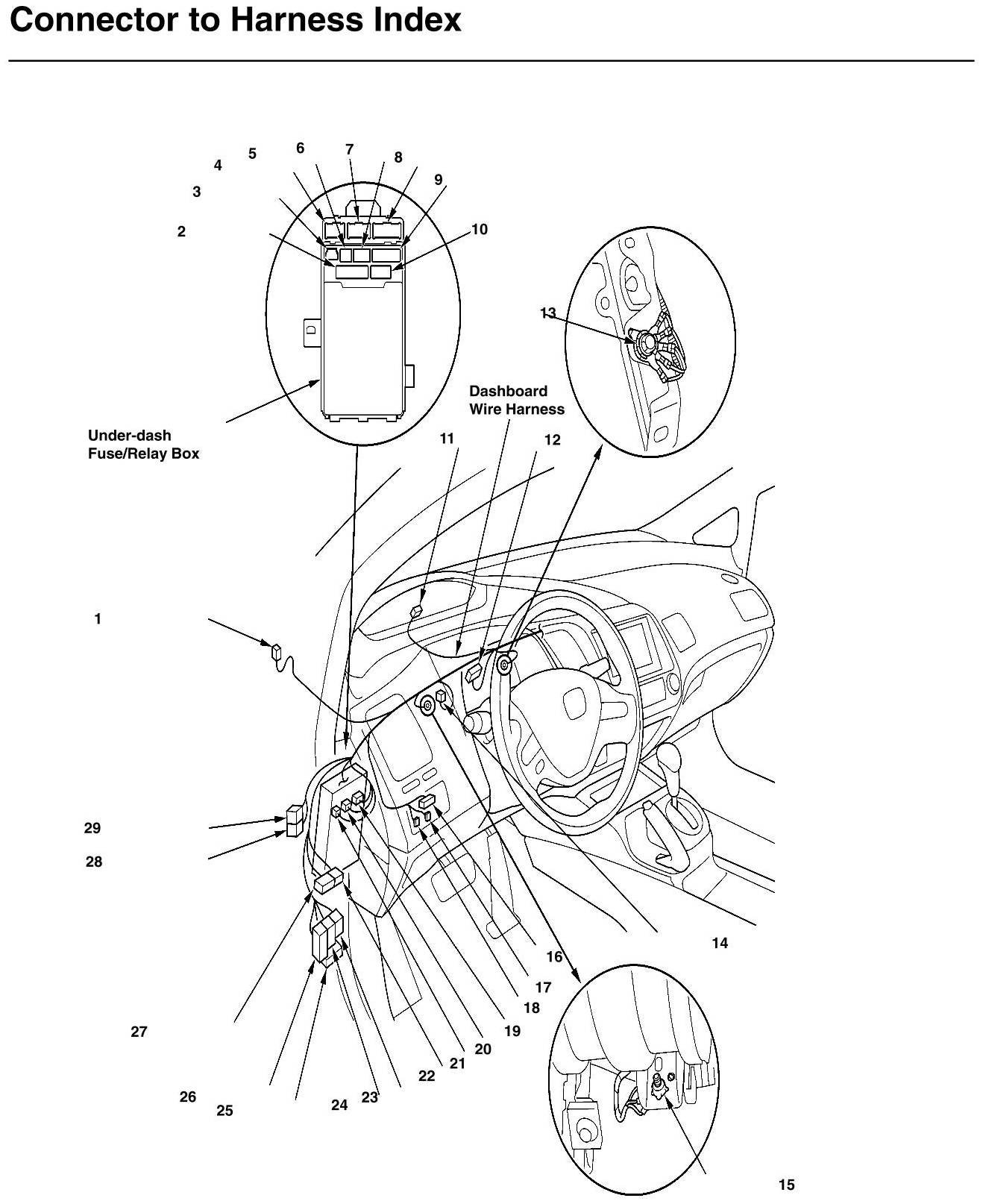

Dashboard Wire Harness (View From Driver's Side) Connector And Harness Locations
Dashboard Wire Harness (View From Driver's Side) Connector And Harness Locations
