Side Engine Mount Replacement

Side Engine Mount Replacement

1. Support the engine with a jack and a wood block under the oil pan.

2. Remove the bolt (A) securing the A/C line, then remove the upper torque rod (B).

M/T model





A/T model





3. Remove the ground cable (A), then remove the side engine mount bracket (B).






4. Remove the side engine mount stiffener (A), then remove the side engine mount (B).

5. Install the side engine mount, then install the side engine mount stiffener.






6. Install the side engine mount bracket (A), loosely tighten the new bolt and nut (B), then loosely tighten the bolt (C).

7. Install the ground cable (D).

8. Remove the air cleaner assembly. Service and Repair

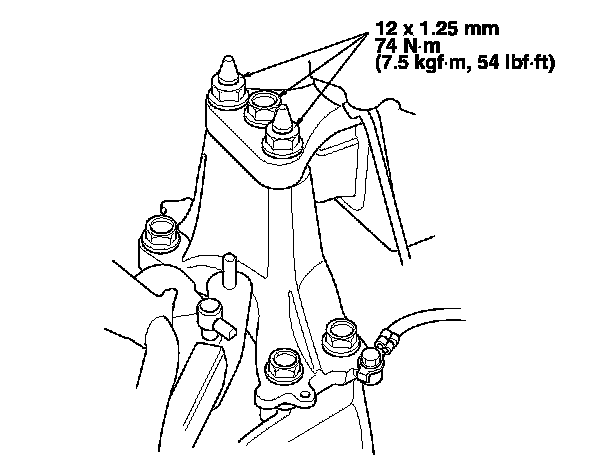

9. Loosen the transmission mounting bolt and nuts (A).

10. Raise the vehicle on the lift.

M/T model





A/T model





11. Loosen the lower torque rod mounting bolt (A).

12. Lower the vehicle on the lift.






13. Tighten the side engine mount bracket mounting bolts and nut.






14. Tighten the transmission mounting bolt and nuts.

15. Raise the vehicle on the lift.

M/T model





A/T model





16. Tighten the lower torque rod mounting bolt.

17. Lower the vehicle on the lift.

18. Install the air cleaner assembly. Service and Repair






19. Install the upper torque rod (A), then tighten the new upper torque rod mounting bolts in the numbered sequence shown.

20. Install the bolt (B) securing the A/C line.

M/T model





A/T model
