The functions of the fuel and emission control systems are managed by the powertrain control module (PCM).
Self-diagnosis
The PCM detects a failure of a signal from a sensor or from another control unit and stores a Pending or a Confirmed DTC. Depending on the failure, a Confirmed DTC is stored in either the first or the second drive cycle. When a Confirmed DTC is stored, the PCM turns on the malfunction indicator lamp (MIL) by a signal sent to the gauge via F-CAN.
- One Drive Cycle Detection Method
When an abnormality occurs in the signal from a sensor or from another control unit, the PCM stores a Confirmed DTC turns on the MIL immediately.
- Two Drive Cycle Detection Method
When an abnormality occurs in the signal from a sensor or from another control unit in the first drive cycle, the PCM stores a Pending DTC. The MIL does not come on at this time. If the failure continues in the second drive cycle, the PCM stores a Confirmed DTC in erasable memory and turns on the MIL.
Fail-safe Function
When an abnormality occurs in the signal from a sensor or from another control unit, the PCM ignores that signal and substitutes a pre-programmed value that allows the engine to continue running. This causes a Confirmed DTC to be stored and the MIL to come on.
MIL Bulb Check and Readiness Code Condition
When the ignition switch is turned to ON (II), the PCM turns on the MIL via the F-CAN circuit for about 15 to 20 seconds to check the bulb condition. If any readiness codes are not set to complete, the MIL flashes five times. If all readiness codes are set to complete, the MIL goes off.
Self Shut Down (SSD) Mode
After the ignition switch is turned to LOCK (0), the PCM stays on (about 15 minutes). If the PCM connector is disconnected during this time, the PCM may be damaged. To cancel this mode, disconnect the negative cable from the battery or jump the SCS line with the HDS after the ignition switch is turned to LOCK (0).
Low Fuel Indicator
The PCM turns the low fuel indicator on to inform the driver that the fuel level is low.
The PCM calculates the gas quantity in the fuel tank from fuel pressure detected by the fuel tank pressure (FTP) sensor and from fuel temperature detected by the fuel tank temperature (FTT) sensor. The PCM then outputs a calculated signal to the gauge control module (tach).
When the PCM detects a malfunction of the FTP sensor or the fuel pressure regulator switch, the PCM causes the low fuel indicator to blink and the fuel gauge to read empty.
When the PCM detects a fuel leak, it turns the low fuel indicator on. If the low fuel indicator is blinking, the vehicle will not start. Low Fuel Indicator Troubleshooting

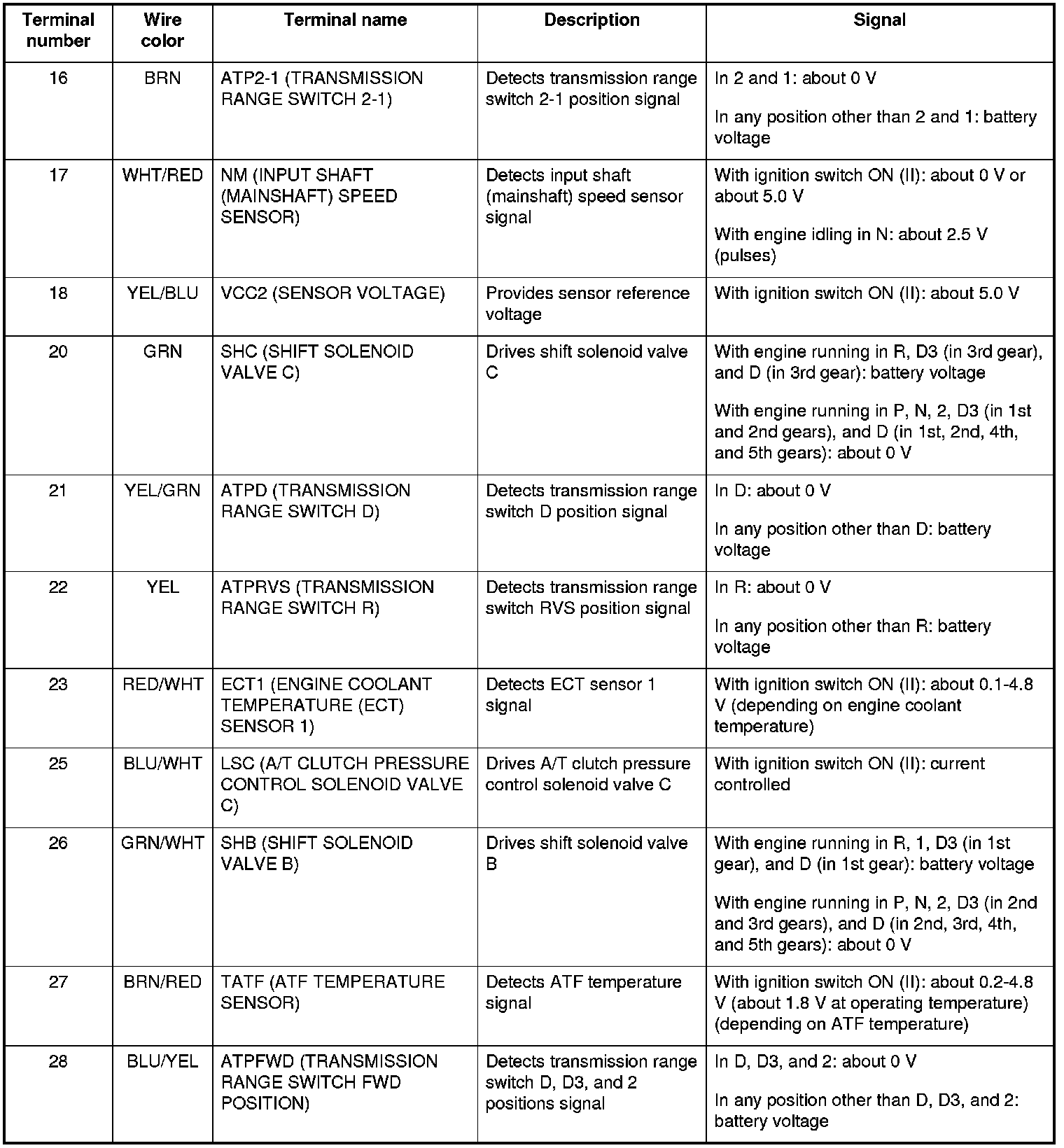

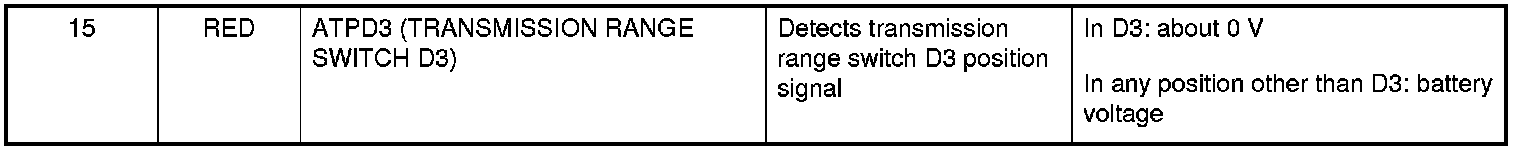

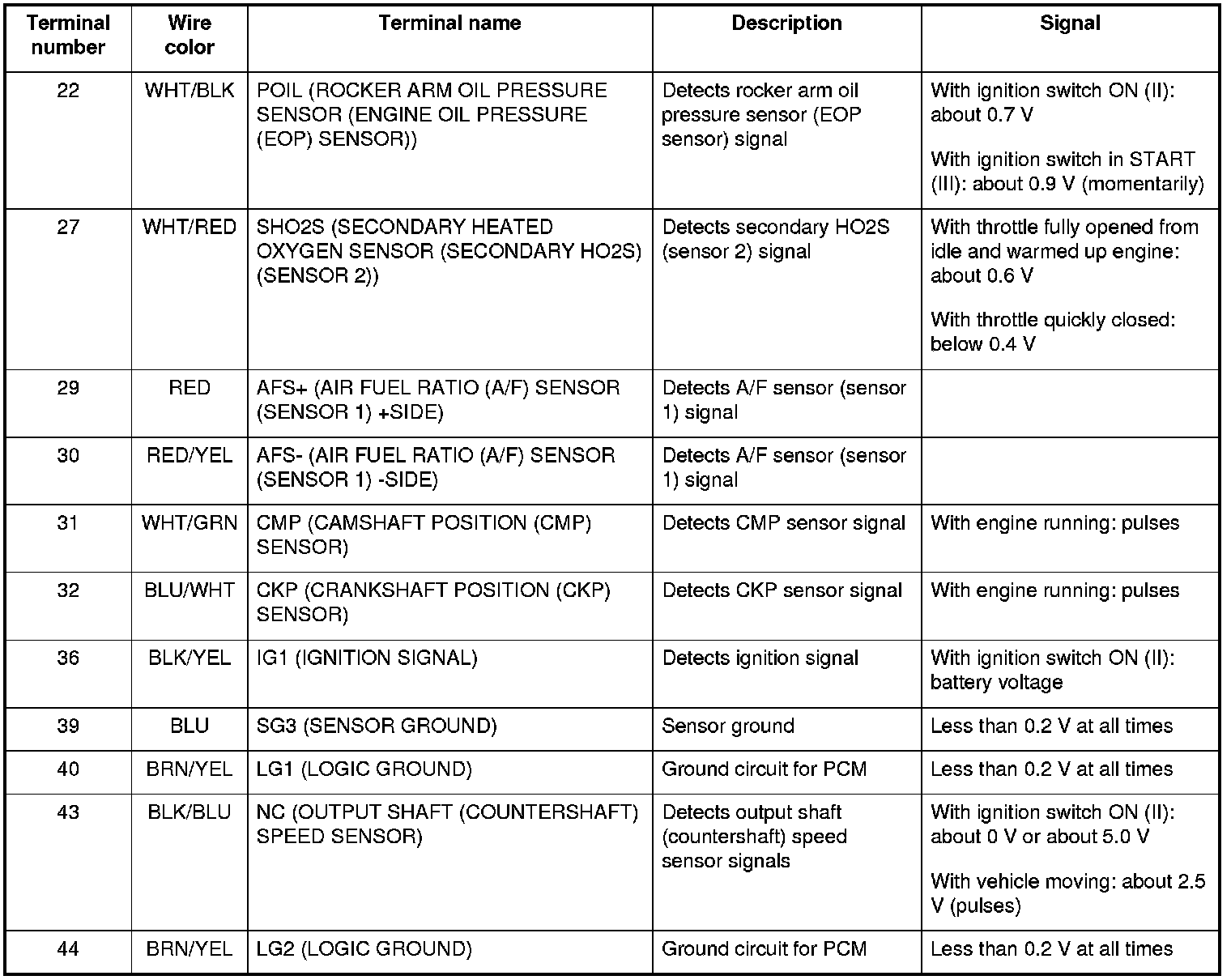

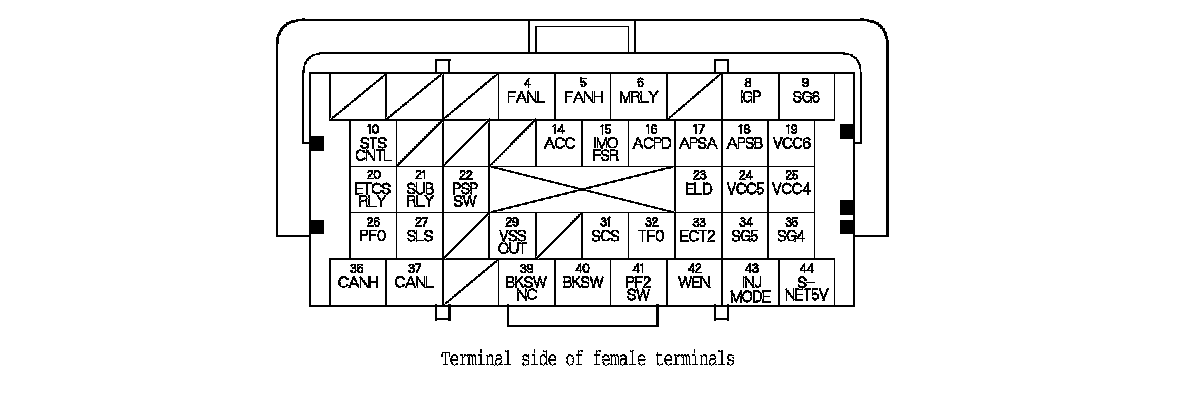

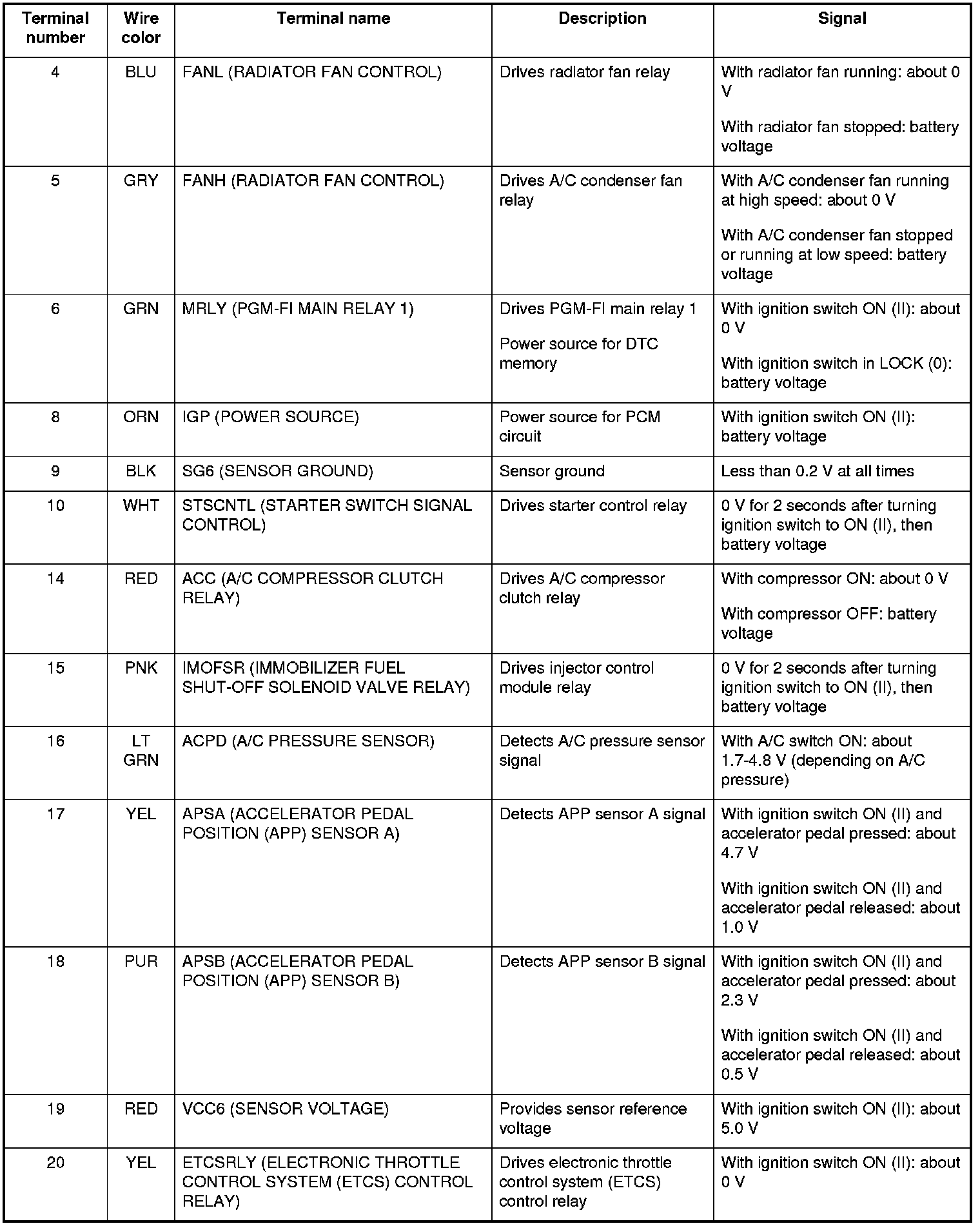

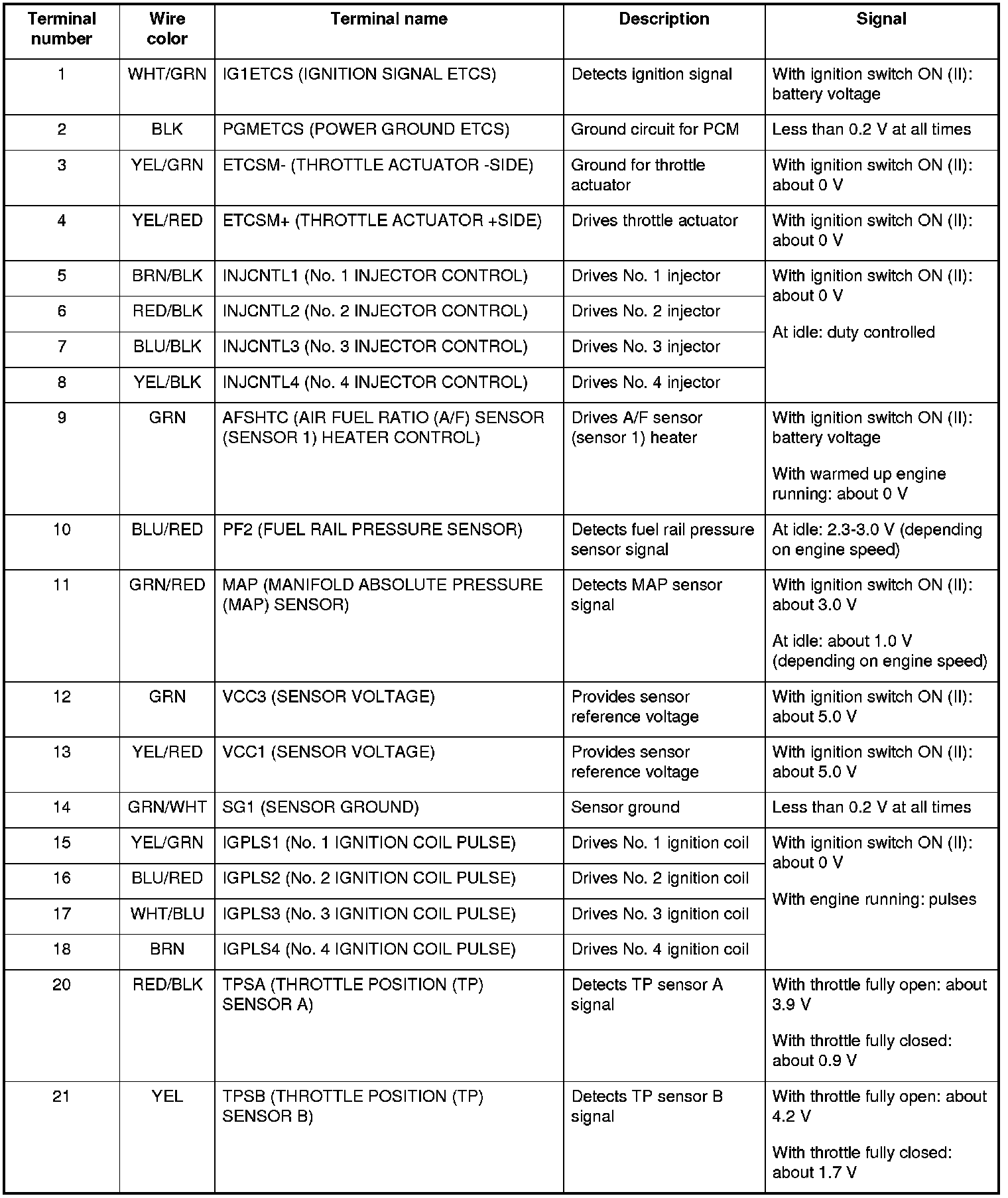

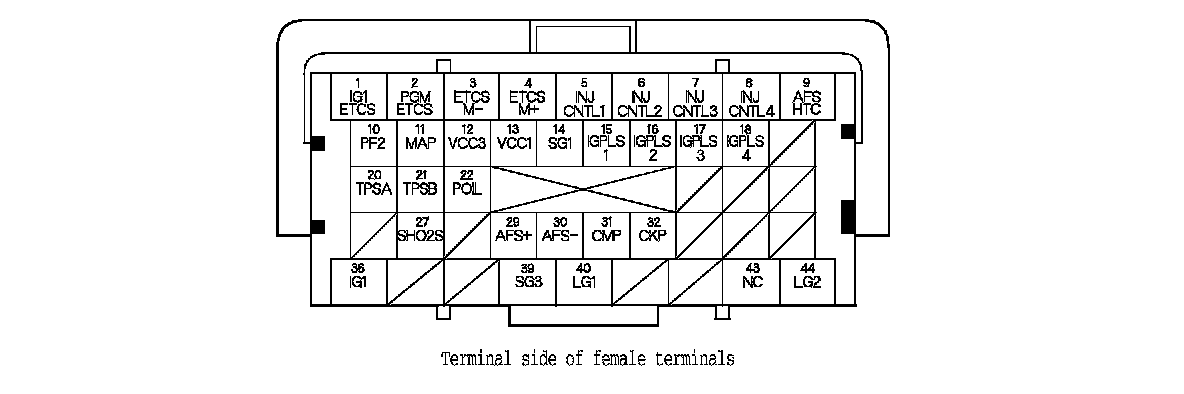

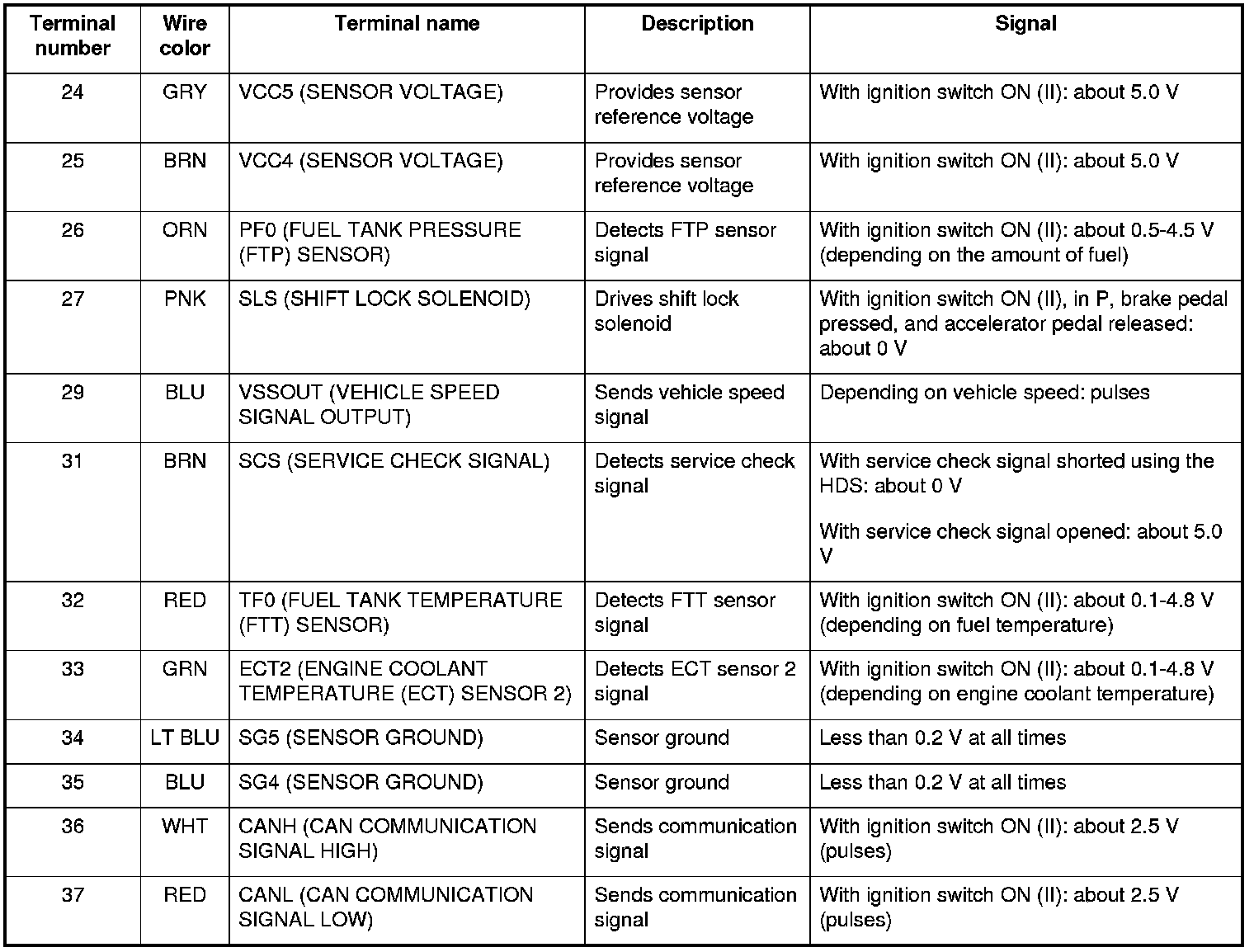

PCM Inputs and Outputs at PCM Connector A (square) (44P)
PCM Inputs and Outputs at PCM Connector A (square) (44P)
PCM Inputs and Outputs at PCM Connector A (square) (44P)

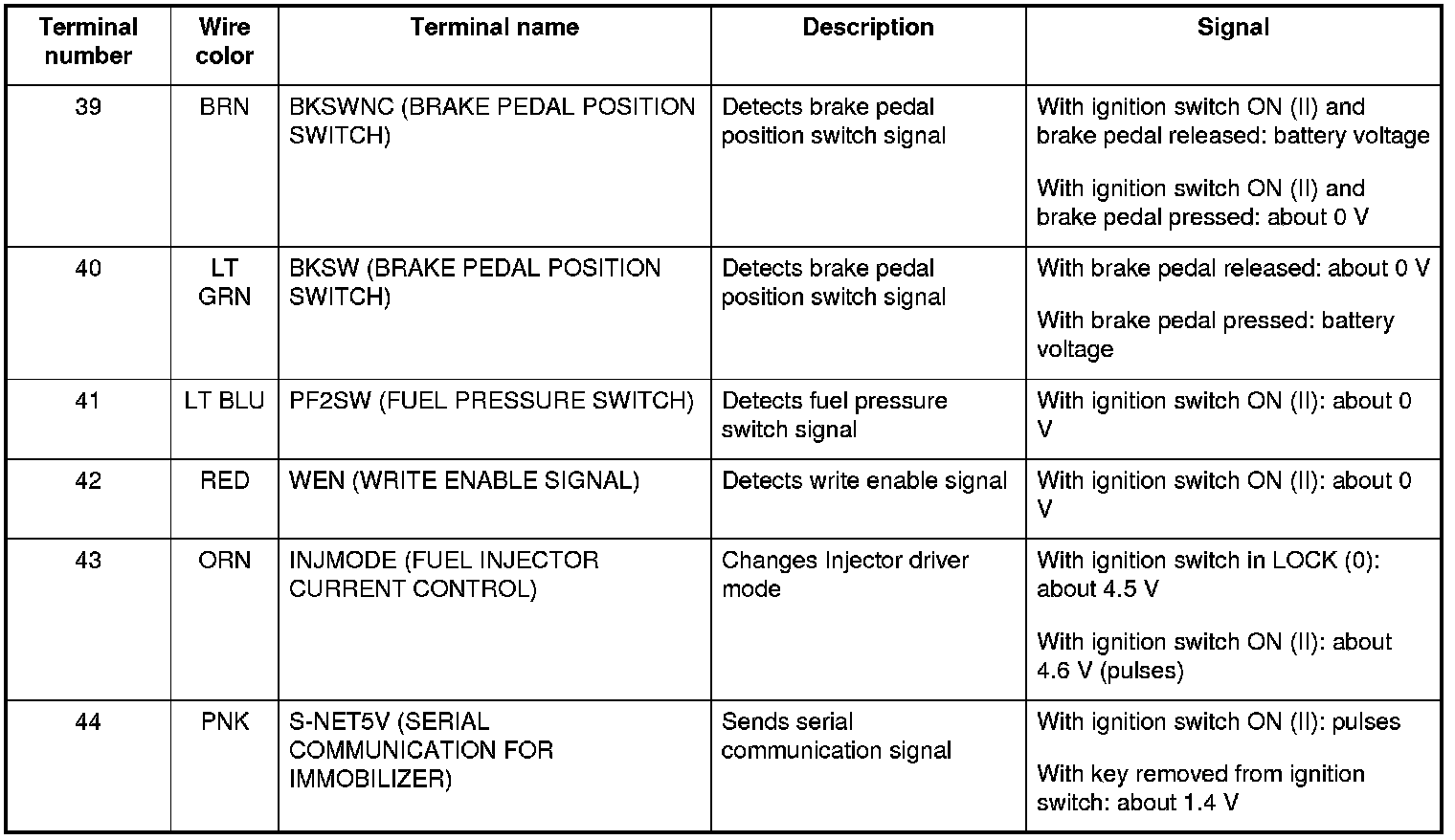

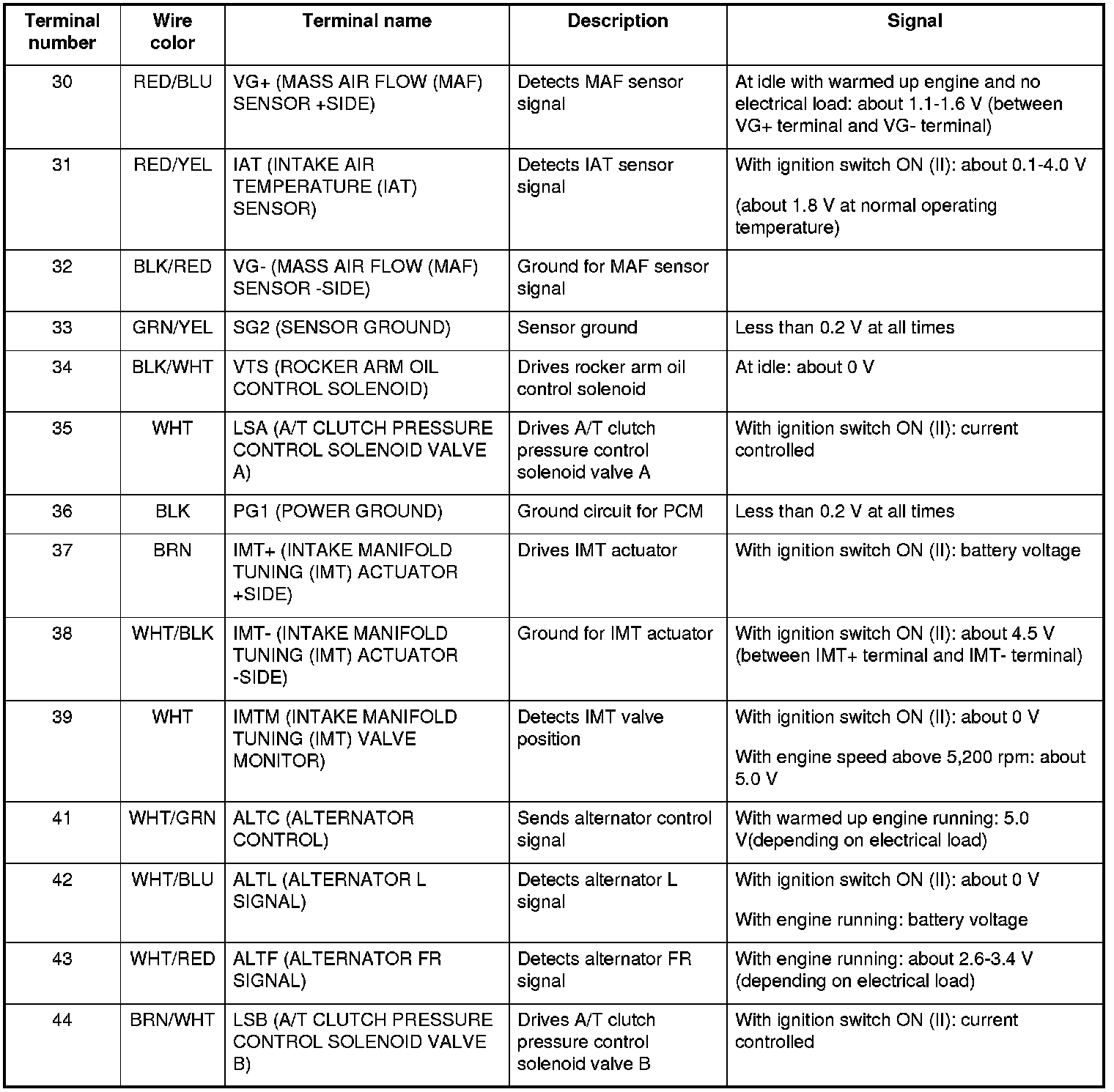

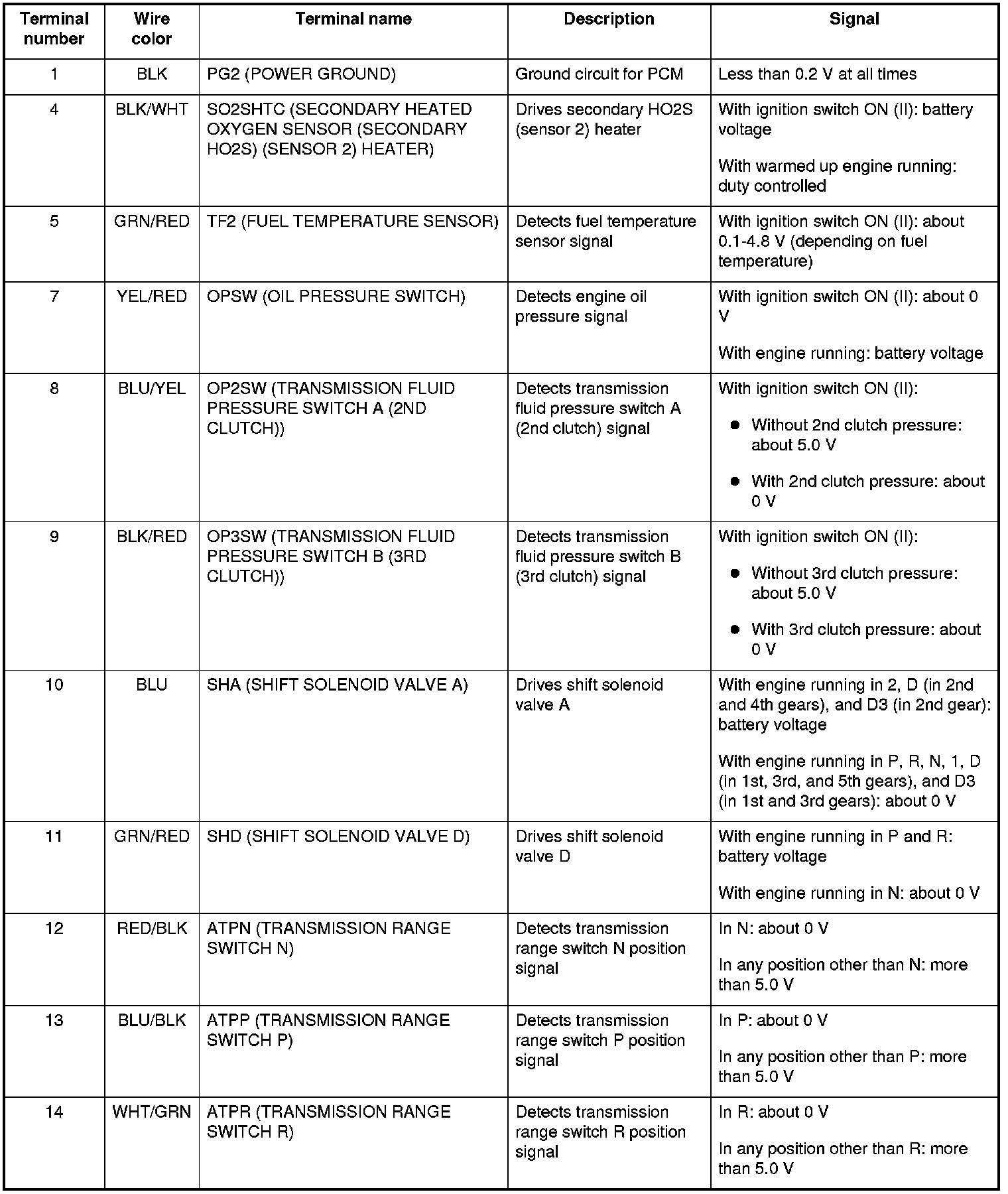

PCM Inputs and Outputs at PCM Connector B (triangle) (44P)
PCM Inputs and Outputs at PCM Connector B (triangle) (44P)
PCM Inputs and Outputs at PCM Connector B (triangle) (44P)

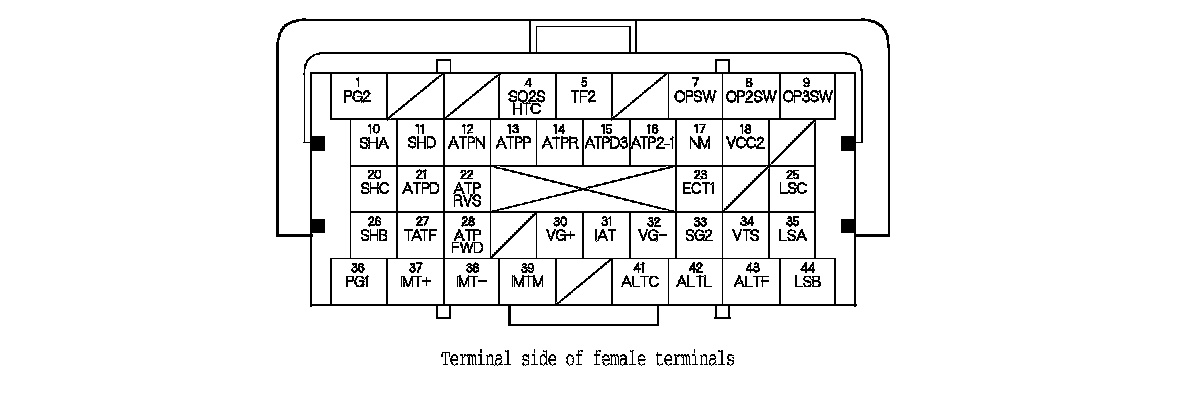

PCM Inputs and Outputs at PCM Connector C (circle) (44P)
PCM Inputs and Outputs at PCM Connector C (circle) (44P)
PCM Electrical Connections
PCM Electrical Connections (cont'd)
PCM Electrical Connections (cont'd)

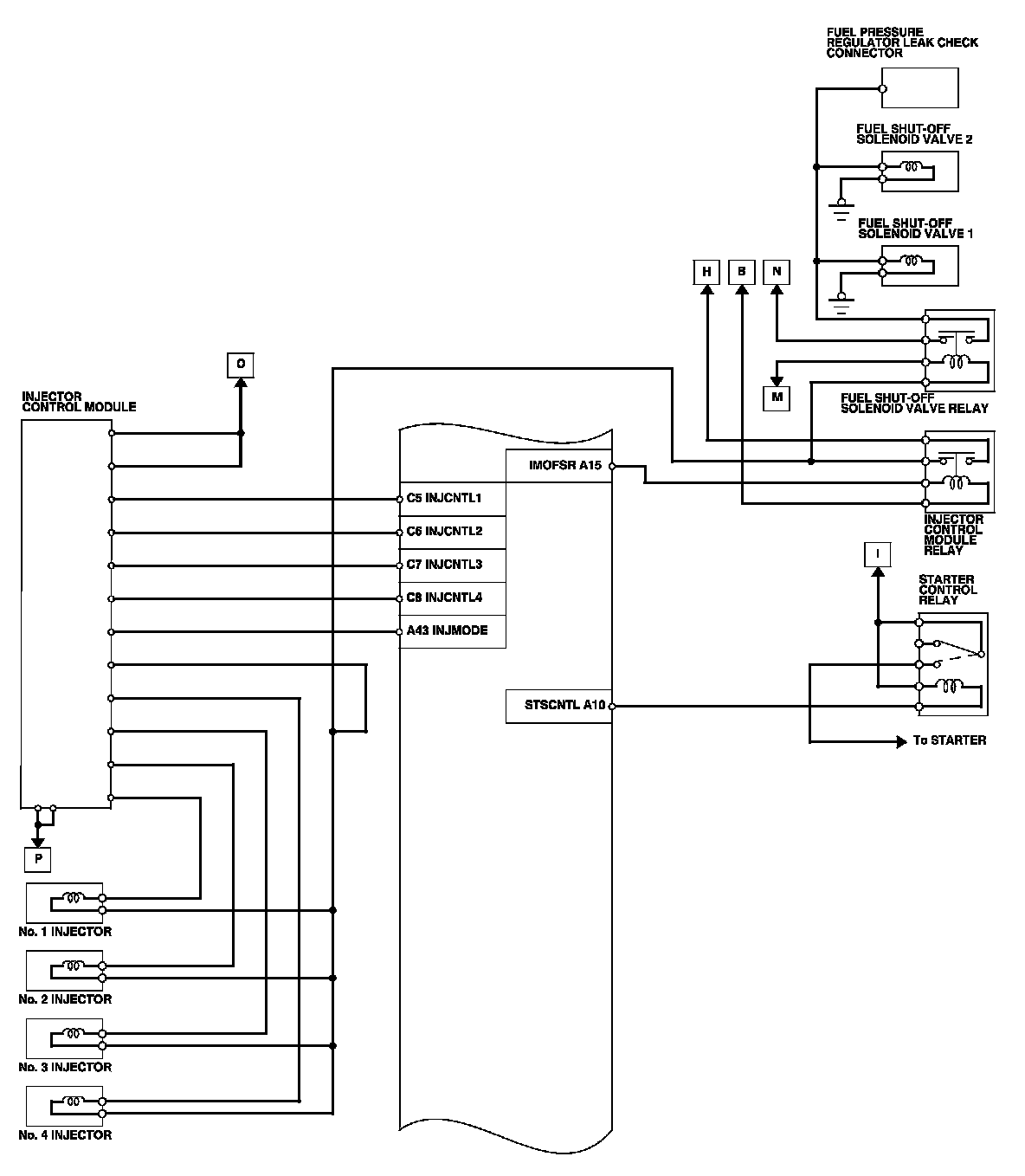

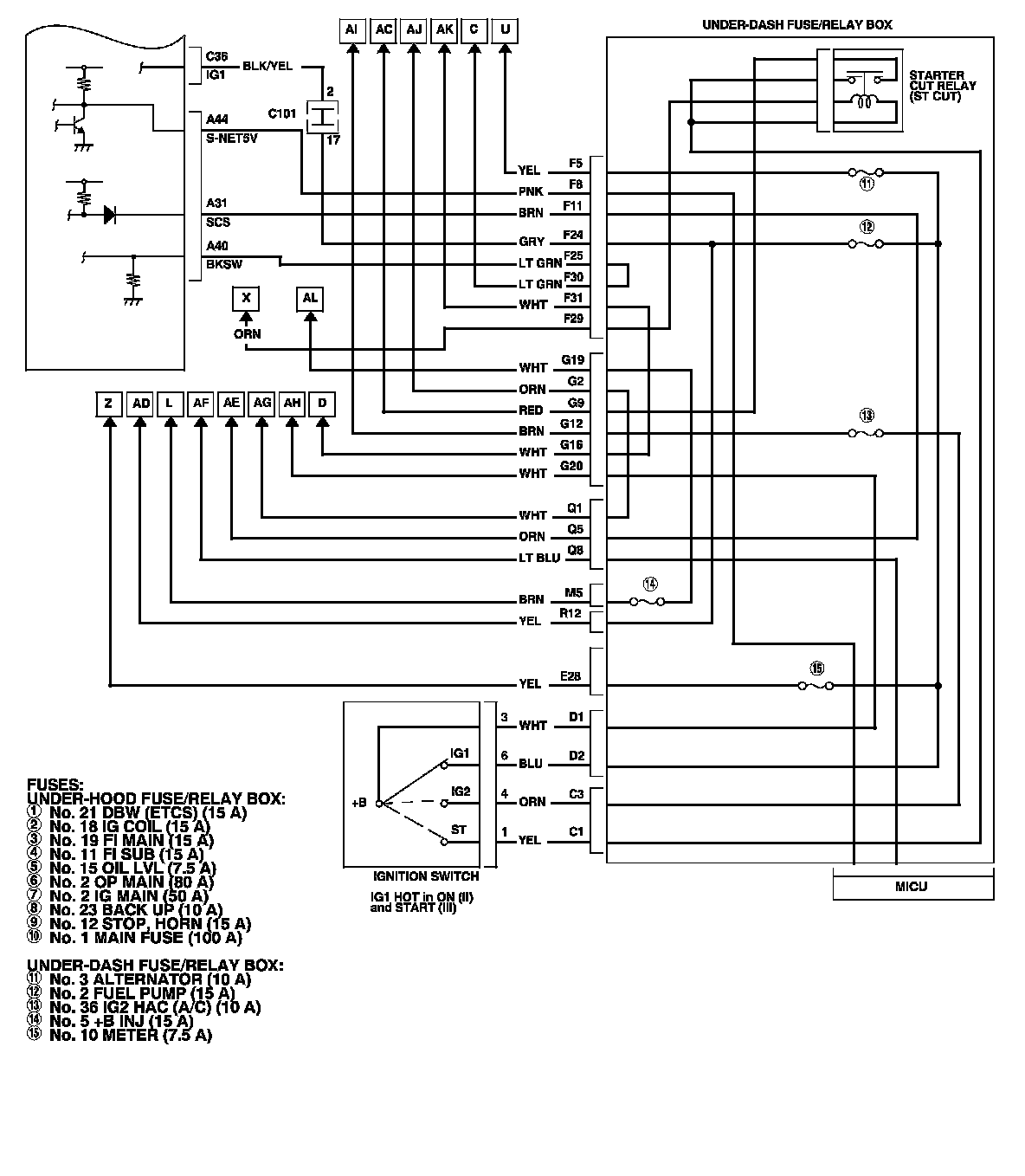

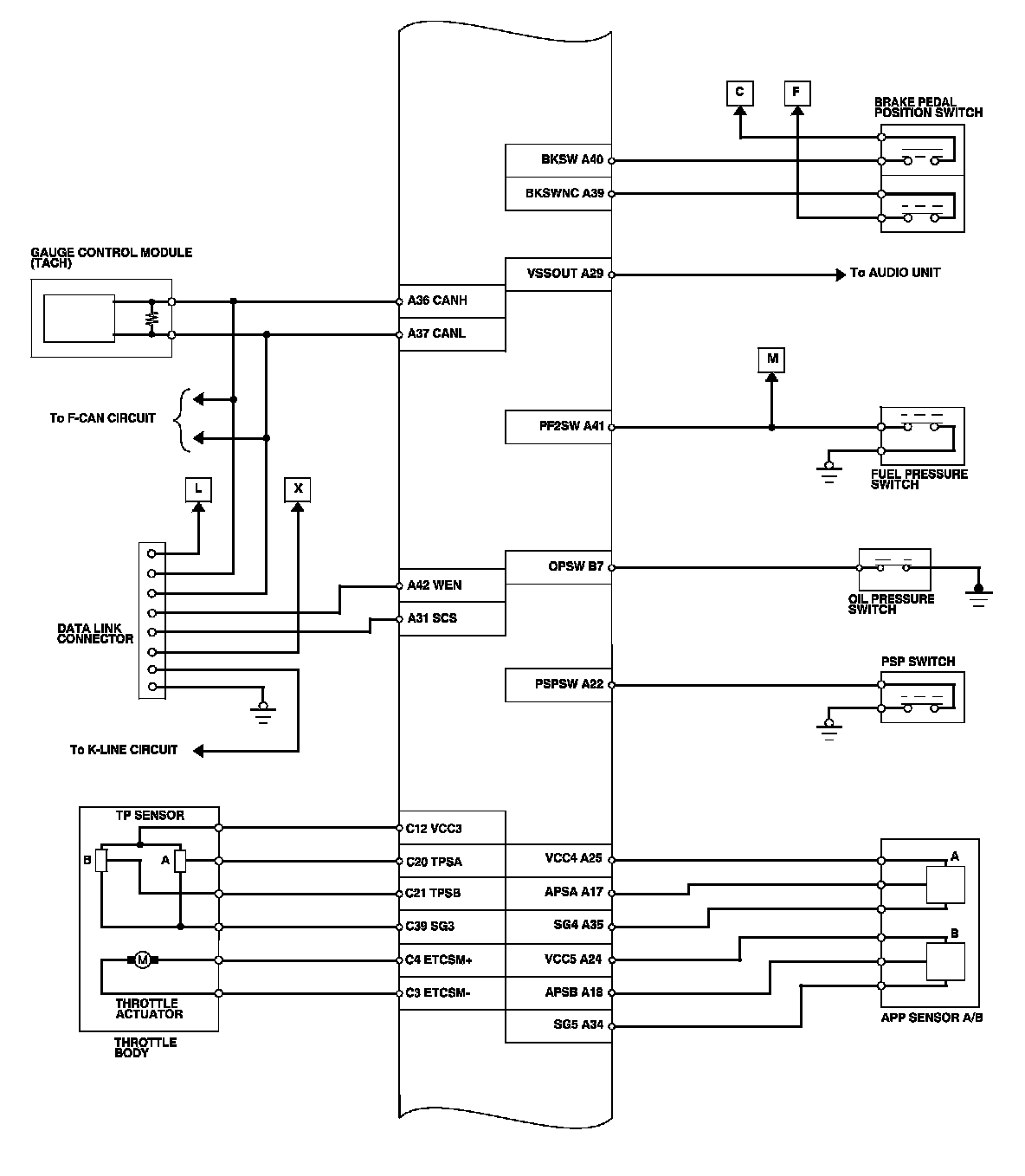

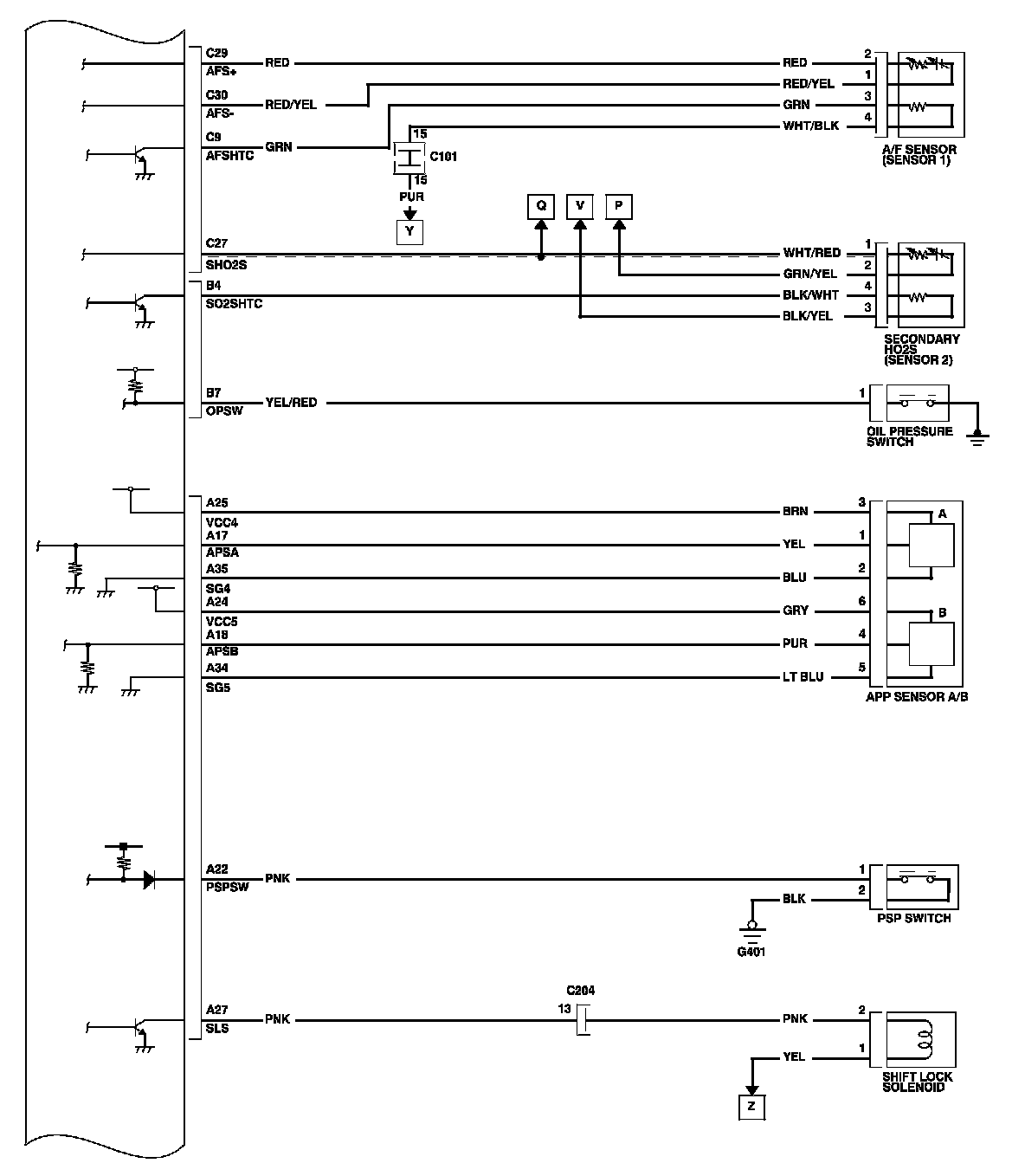

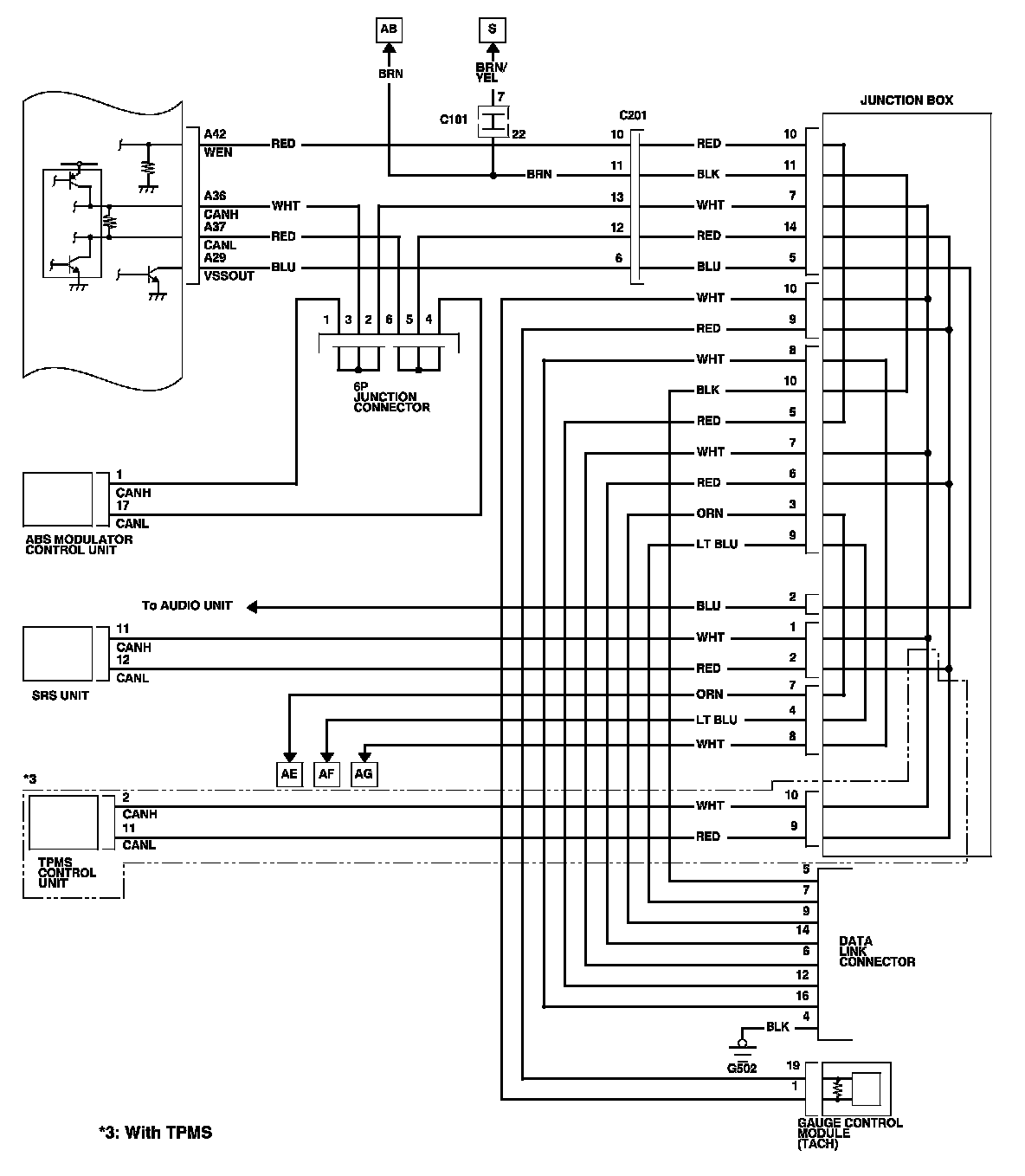

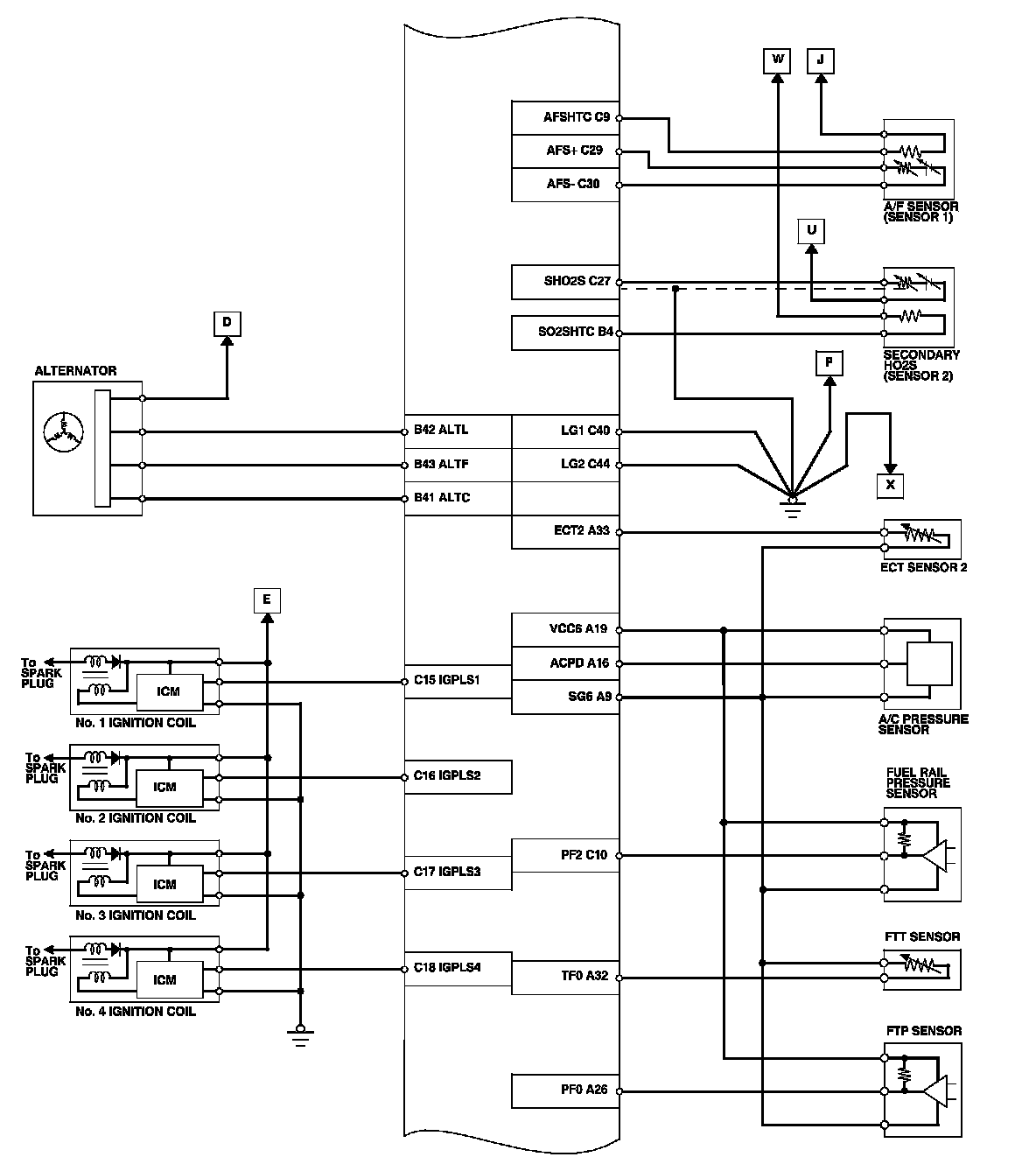

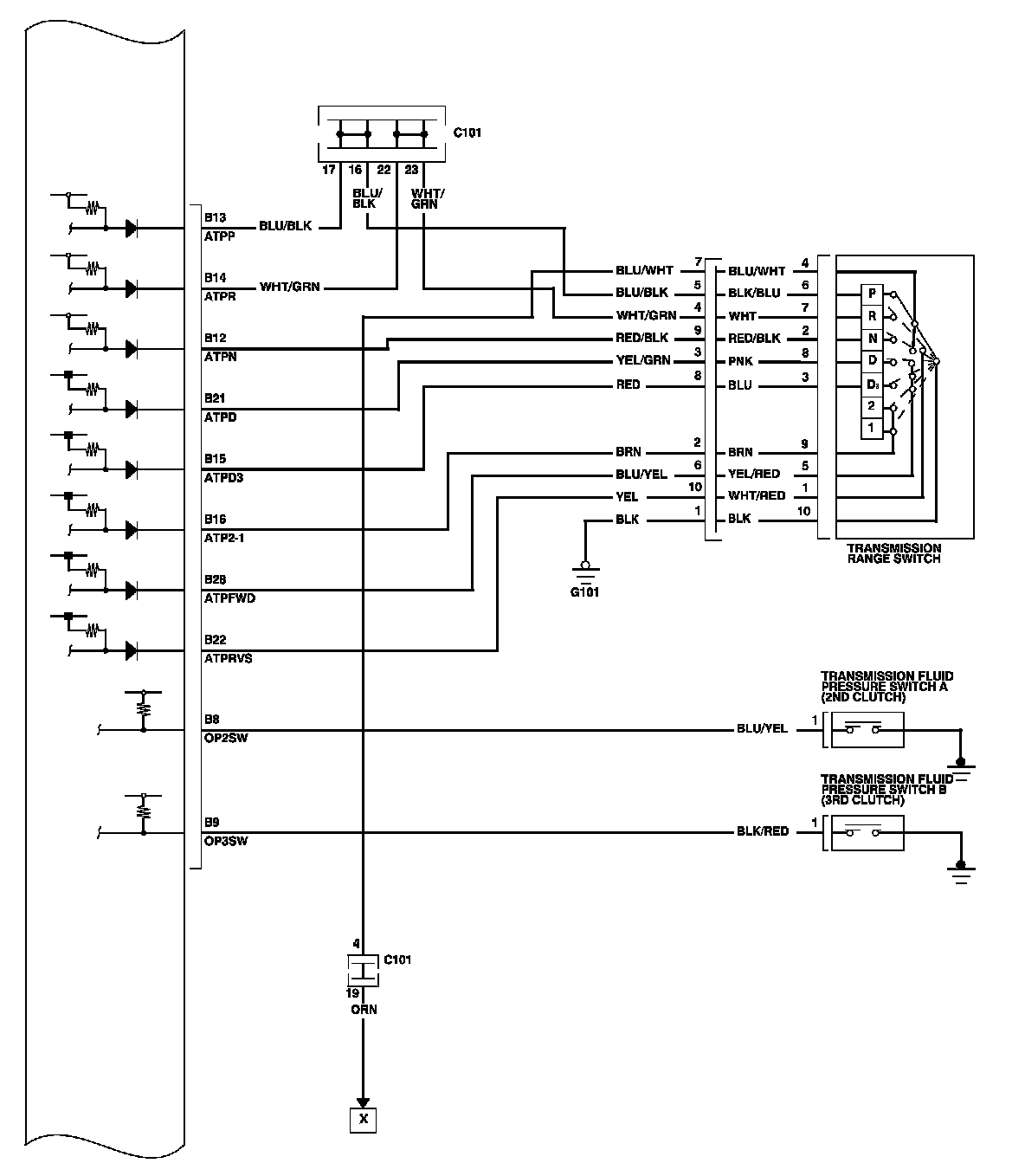

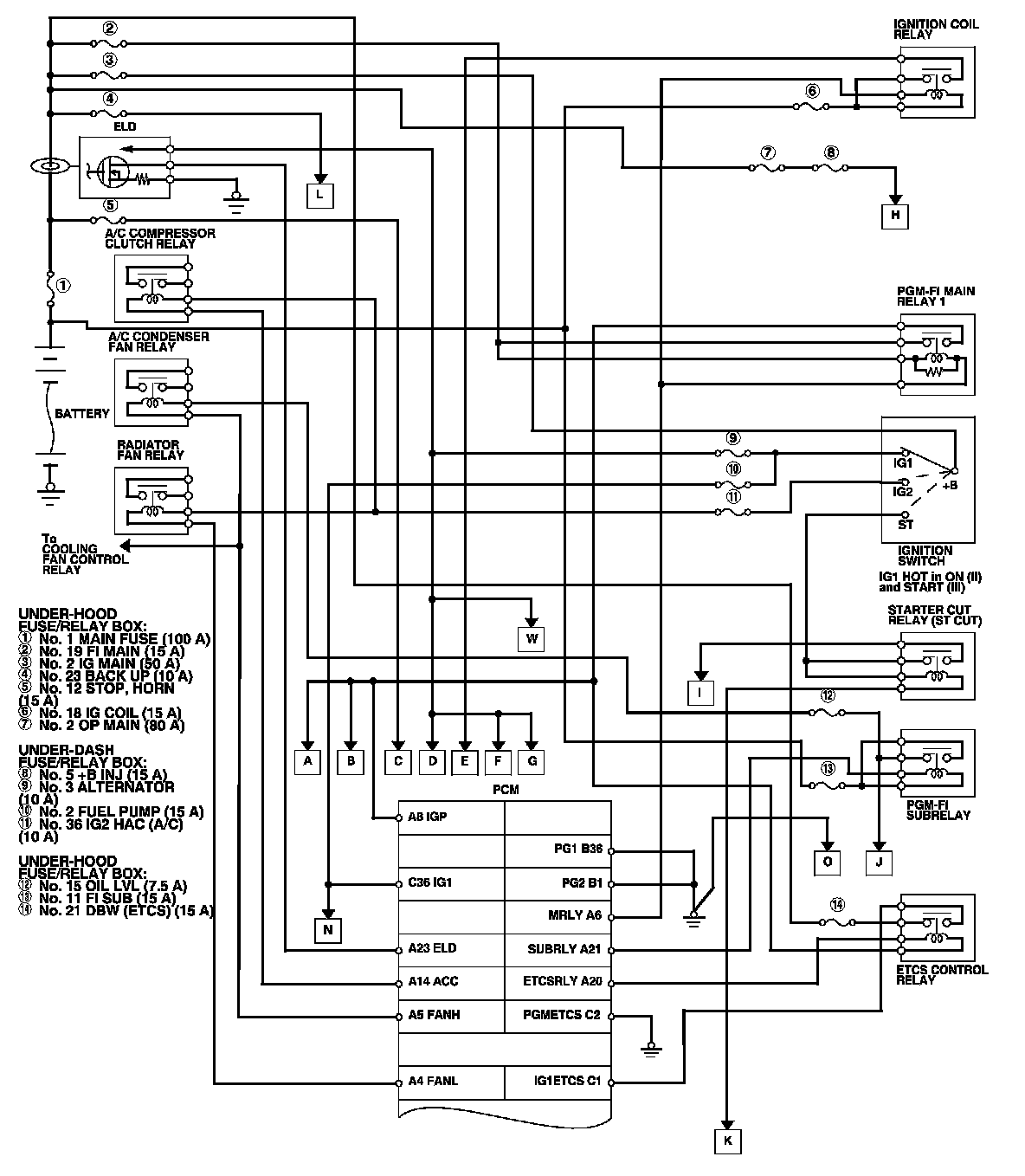

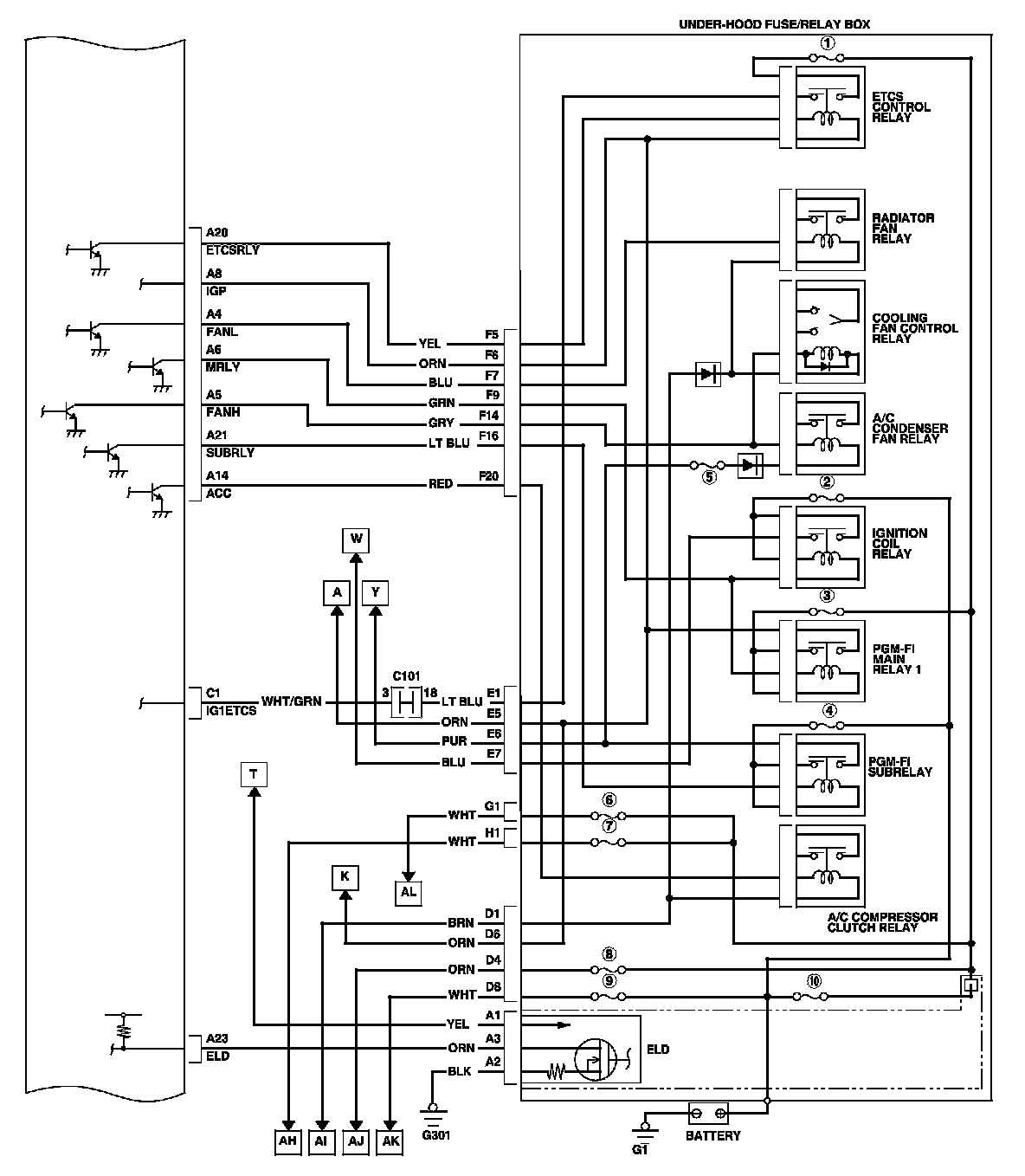

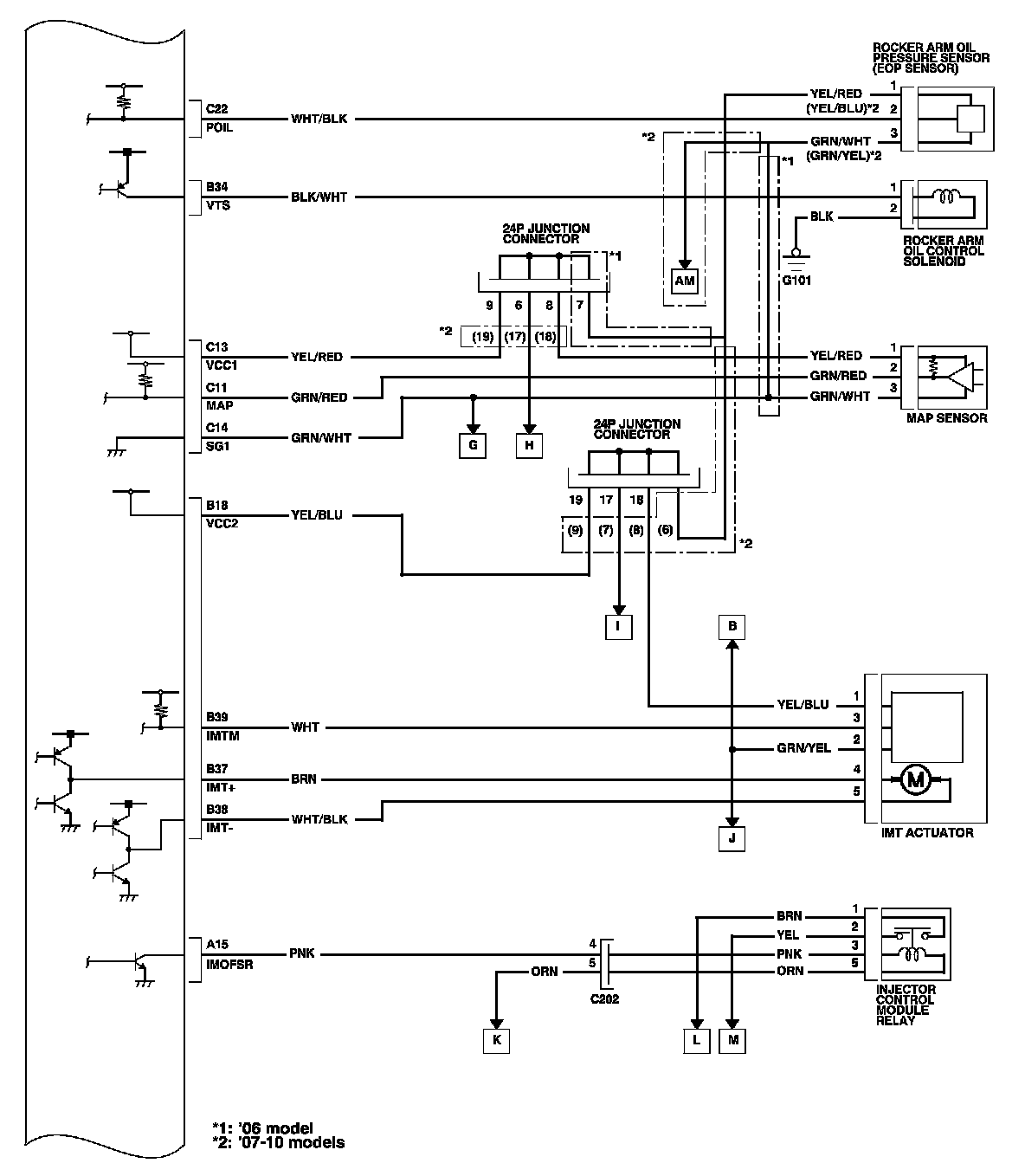

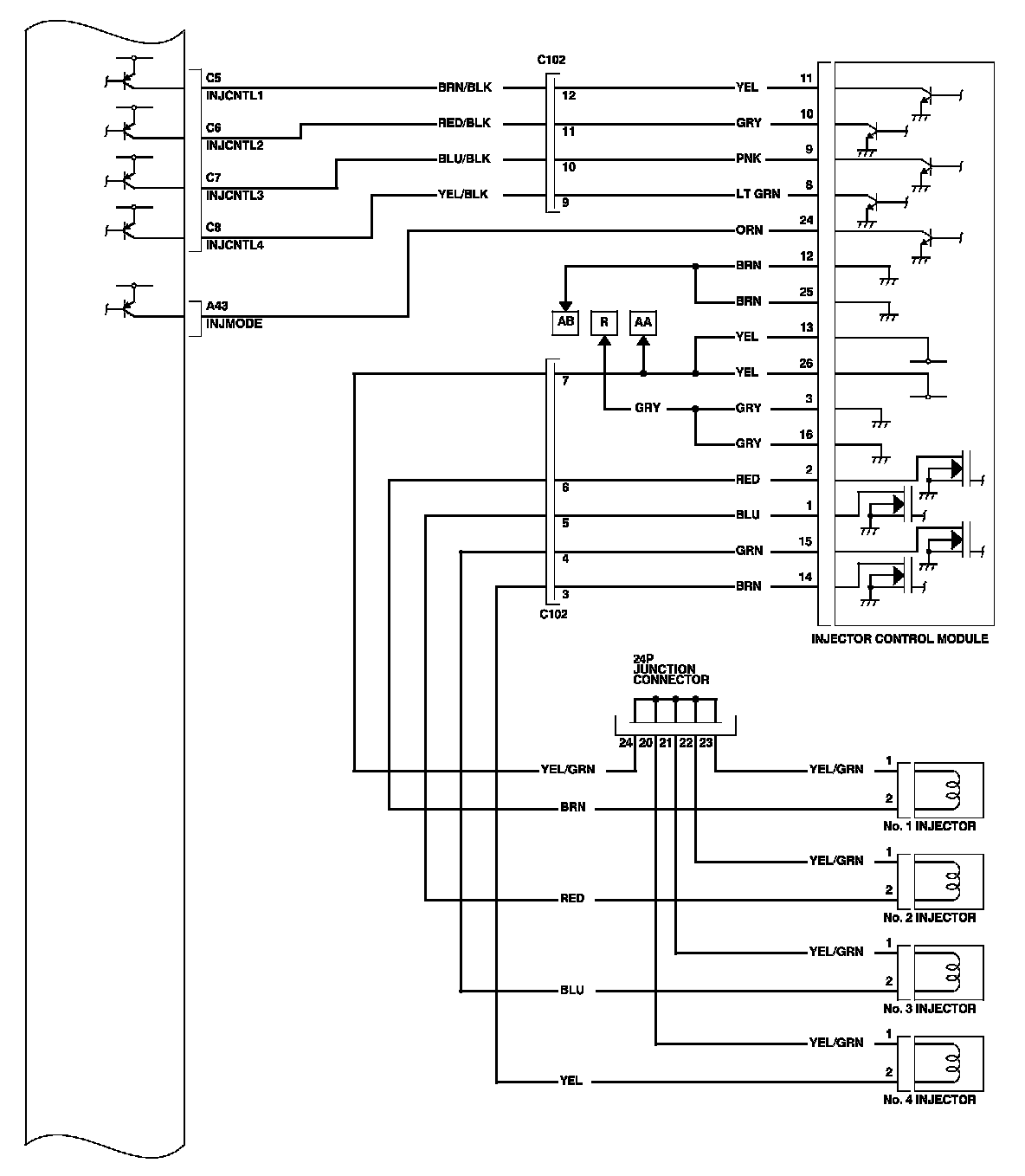

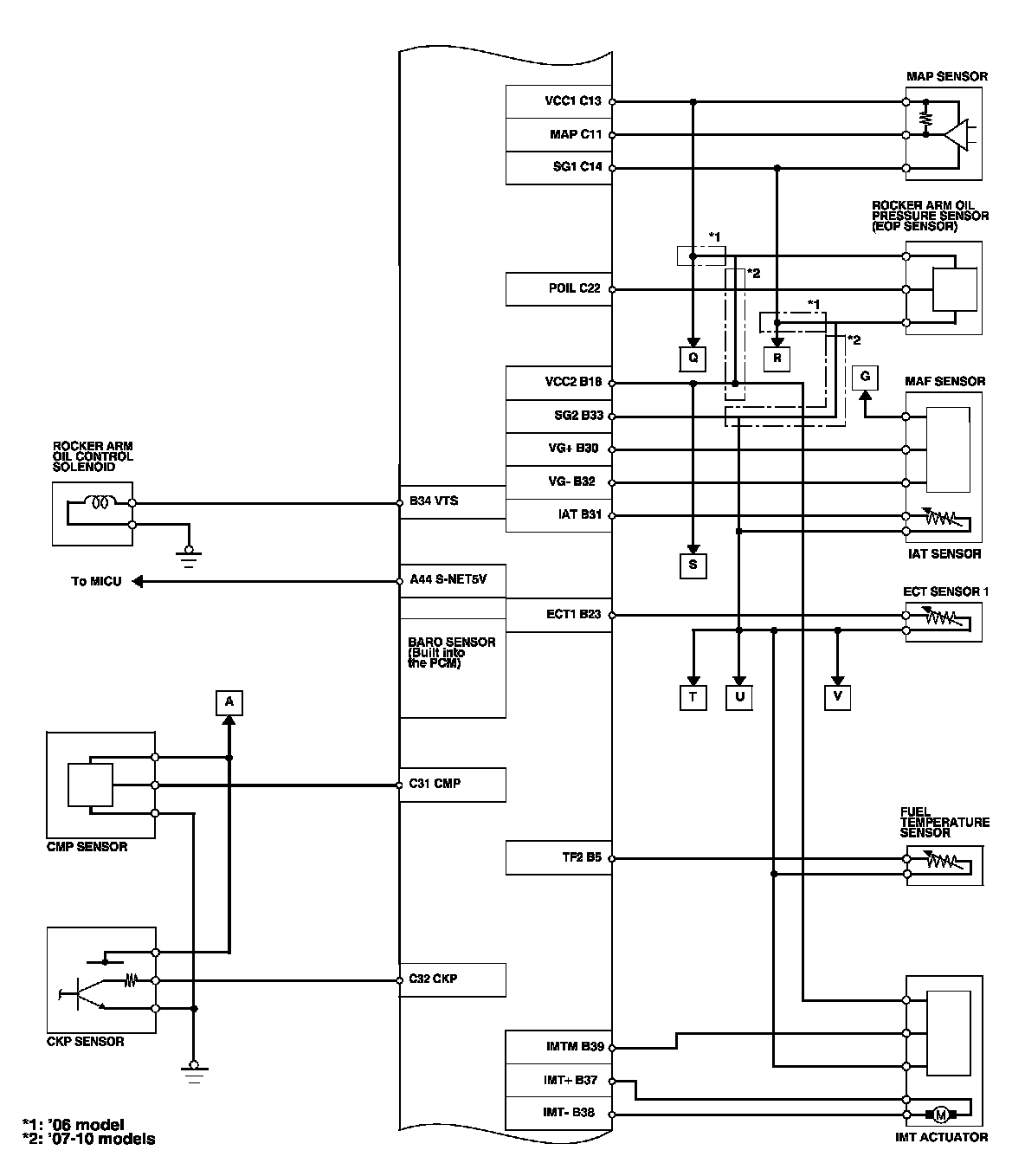

PCM Circuit Diagram

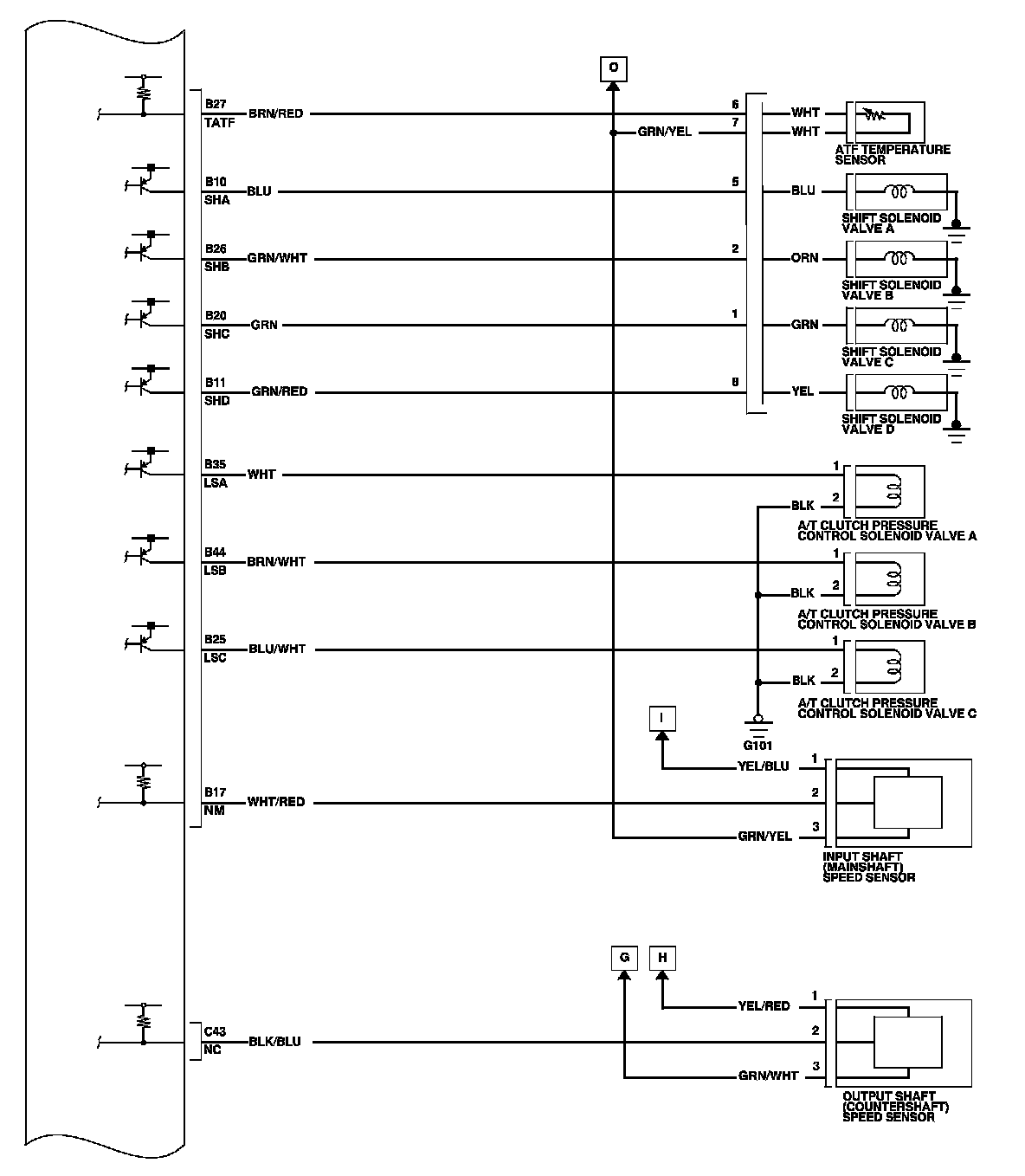

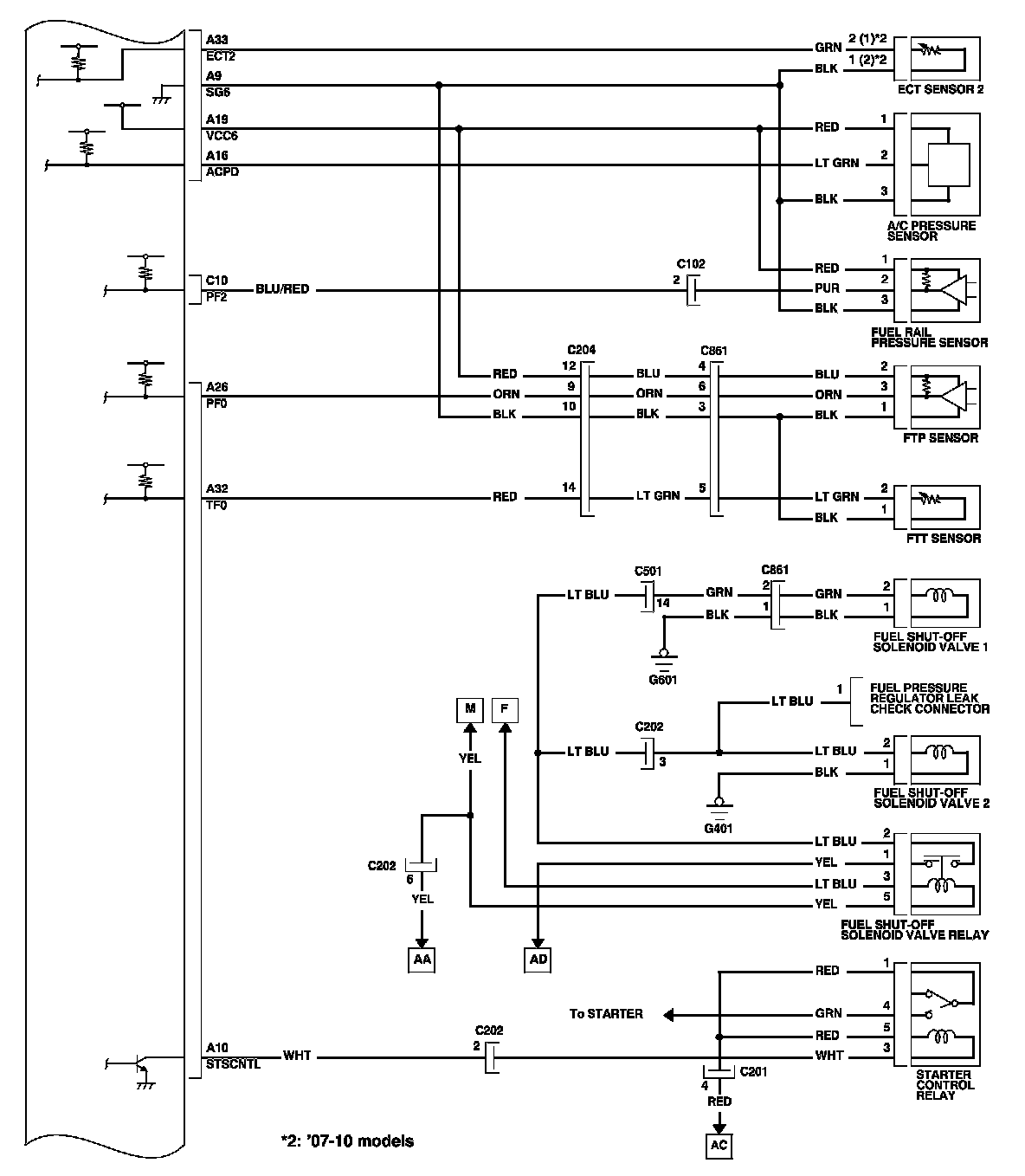

PCM Circuit Diagram (cont'd)

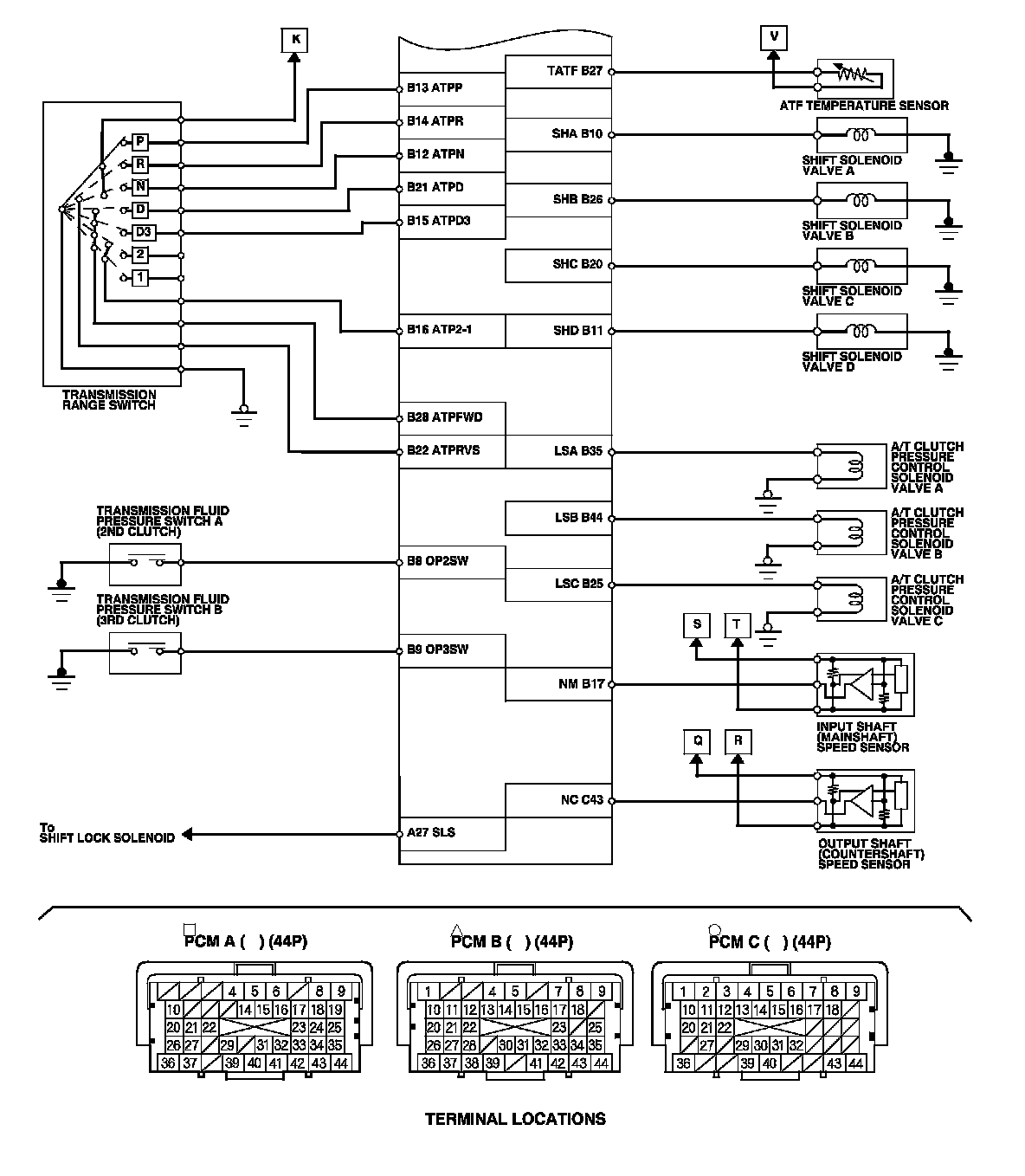

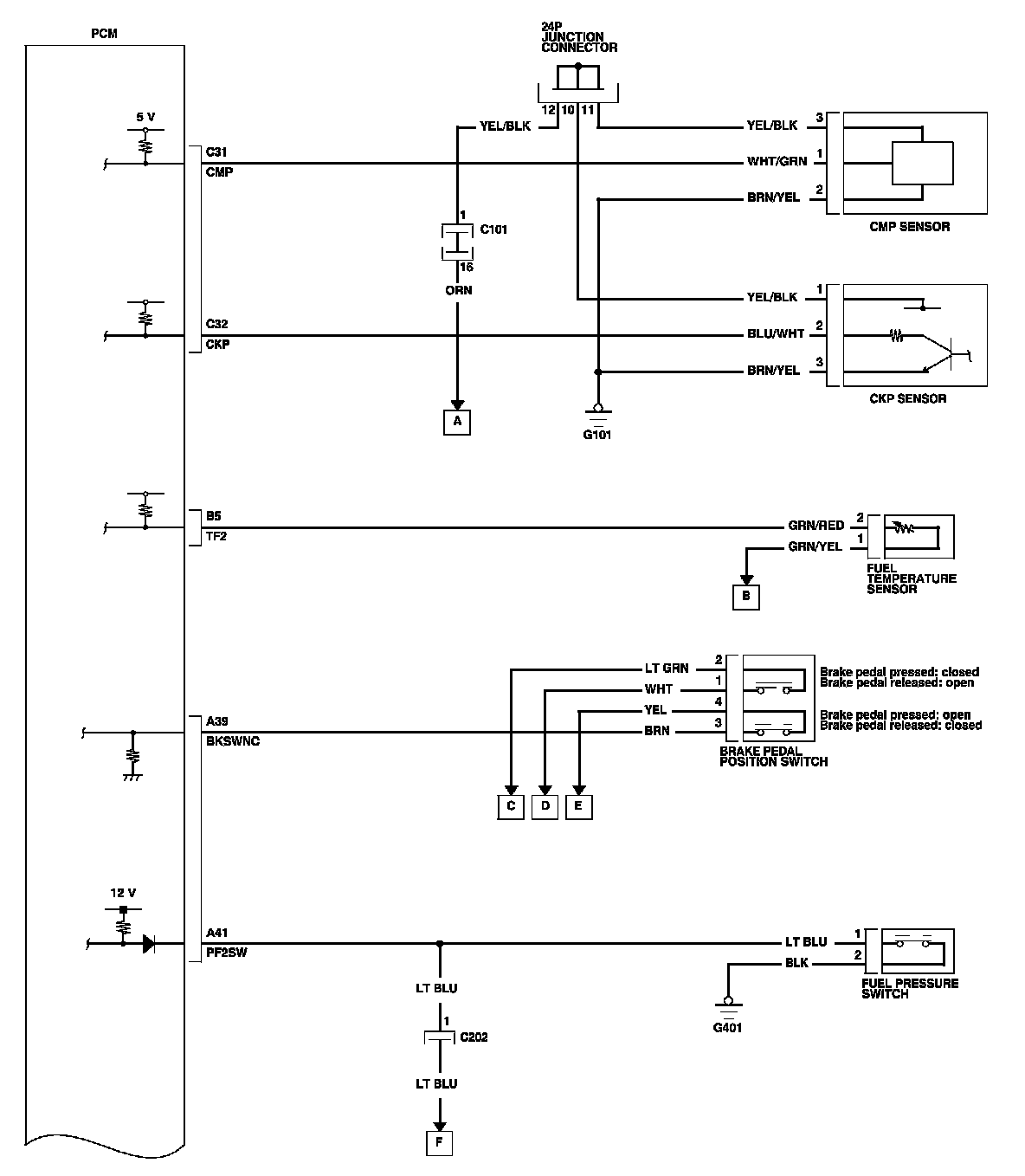

PCM Circuit Diagram (cont'd)

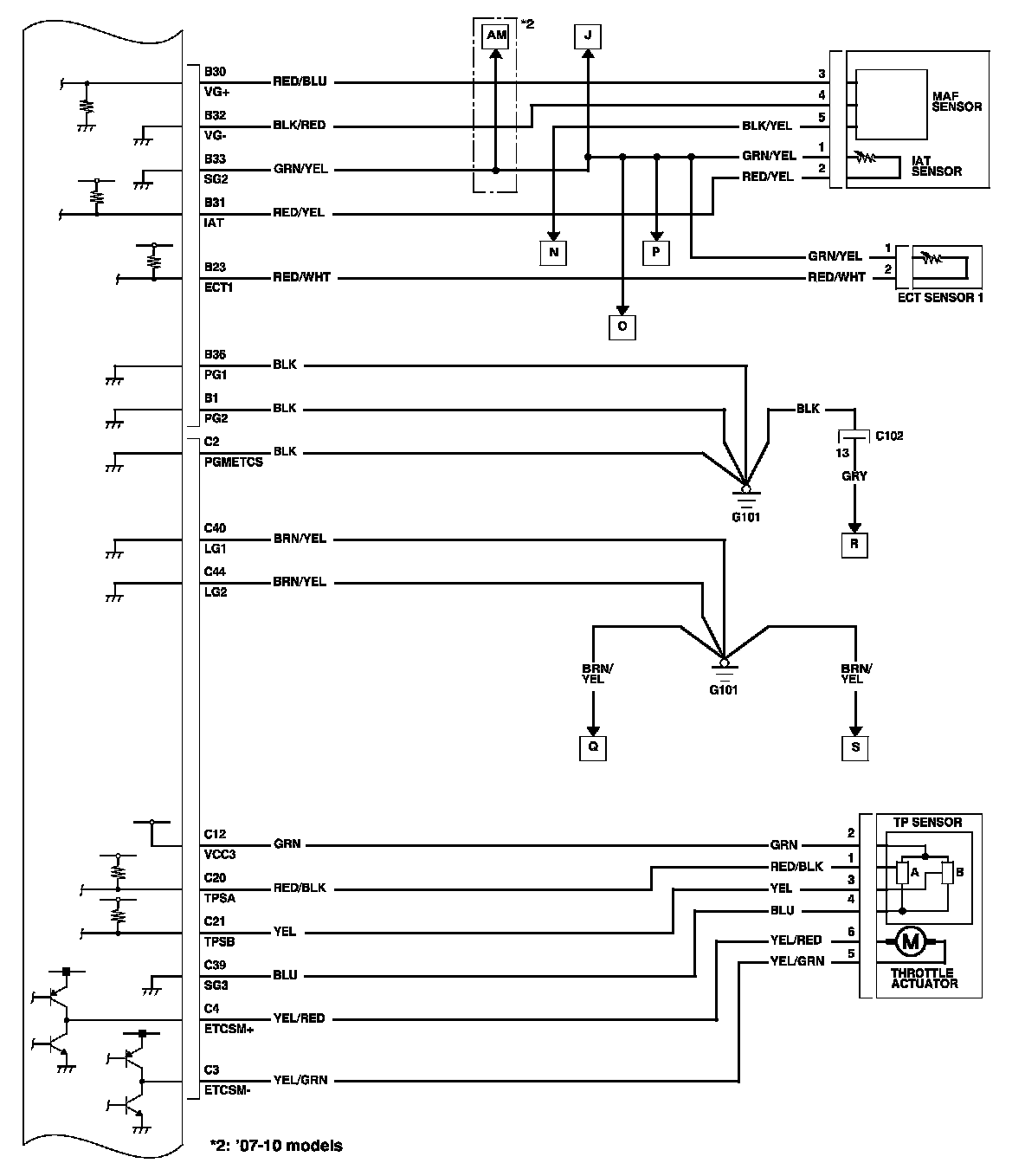

PCM Circuit Diagram (cont'd)
PCM Circuit Diagram (cont'd)
PCM Circuit Diagram (cont'd)
