Ignition Switch
>>
Diagrams
>>

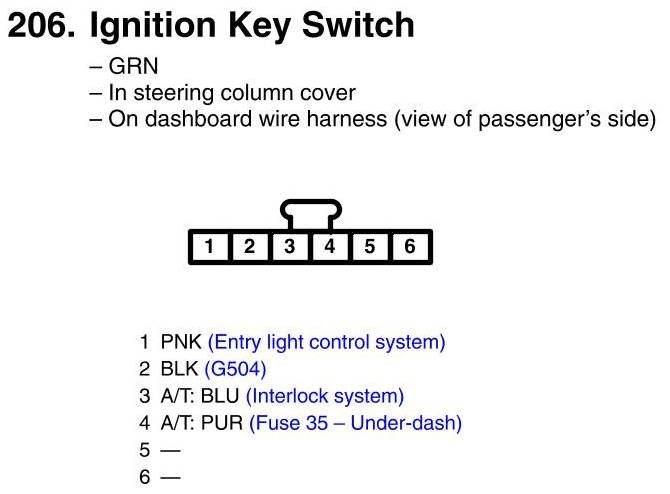

Ignition Key Switch Connector View
Ignition Key Switch Connector View
