Tightening and Torques Sequences

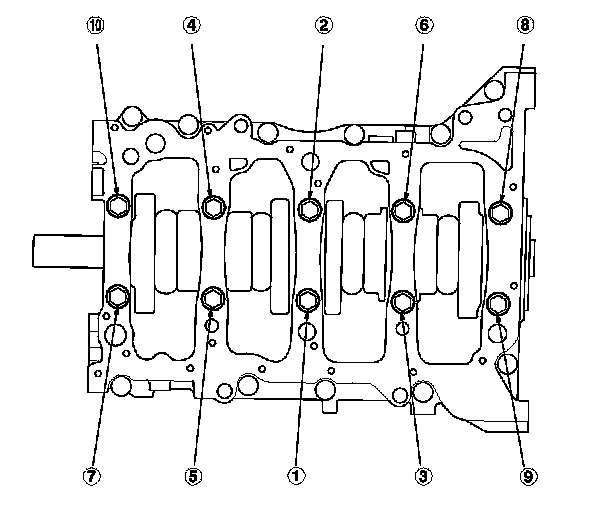

Torque the bearing cap bolts, in sequence, to 25 N-m (2.5 kgf-m, 18 lbf-ft).

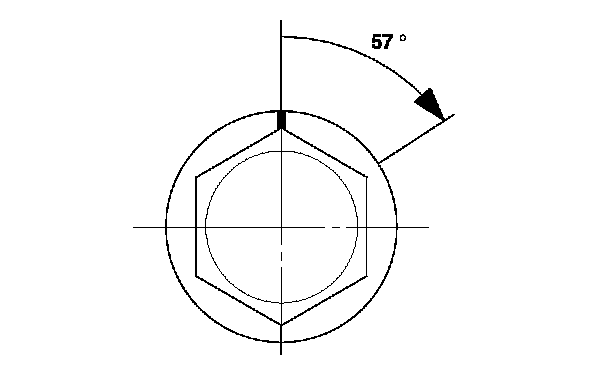

Tighten the bearing cap bolts an additional 57 °.

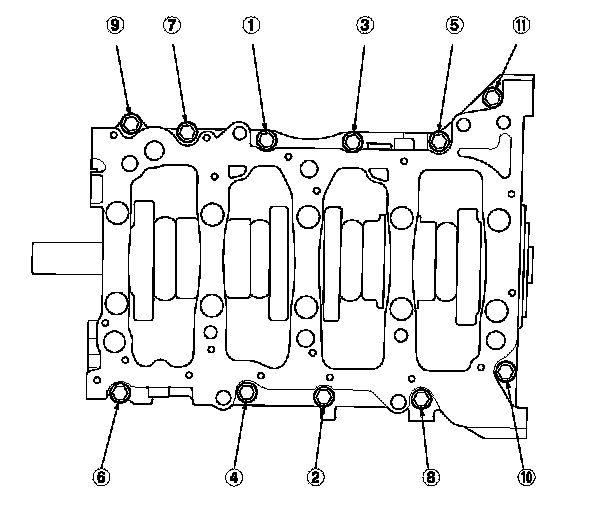

Torque the 8 mm bolts, in sequence, to 24 N-m (2.4 kgf-m, 17 lbf-ft).
