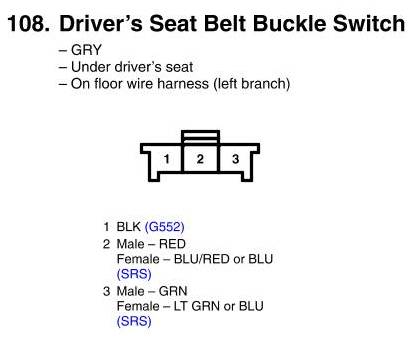

View 108 - Driver's Seat Belt Buckle Switch Connector View
View 108 - Driver's Seat Belt Buckle Switch Connector View
