Front Grille Replacement

Front Grille Replacement

NOTE: Take care not to scratch the front bumper.

1. Remove the front grille cover Front Grille Cover Replacement.

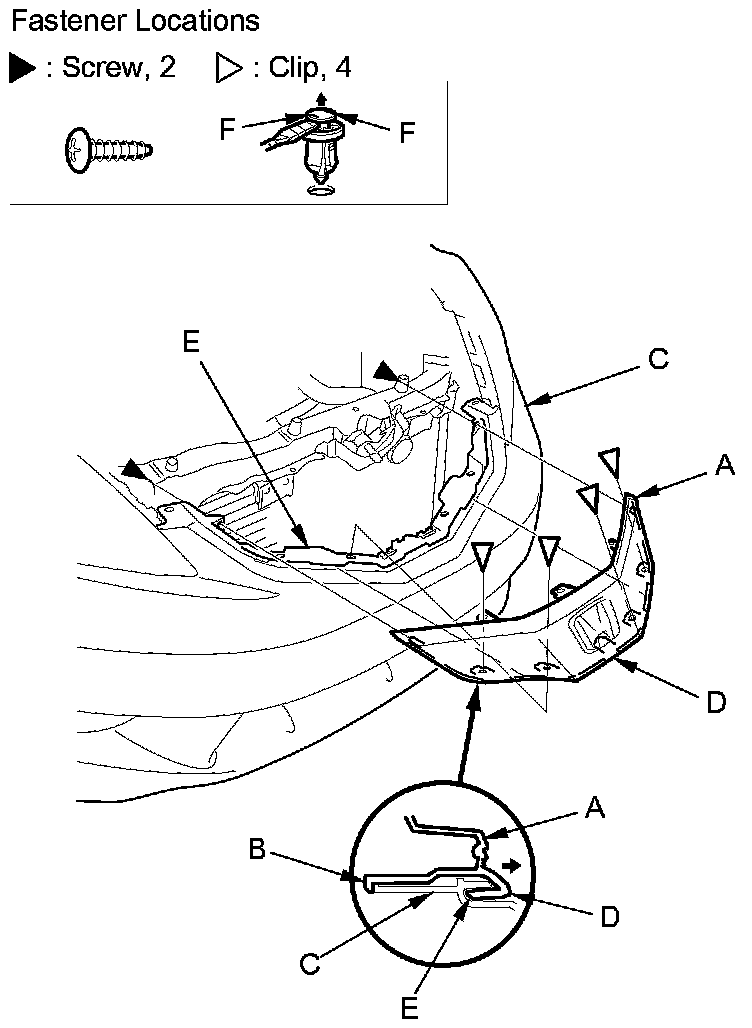

2. Remove the front grille (A).

1. Remove the screws and the clips.

2. Release the hooks (B) on the grille from the front bumper (C), and pull the grille out to release the ribs (D) from the front bumper groove (E).

NOTE: To release the clips, pry up on the center pin at the notch (F).





3. Install the grille in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, and replace them with new one.
- Push the clips and the hooks into place securely.
