Rear Seat Leg Guide Replacement
Rear Seat Leg Guide Replacement 1.

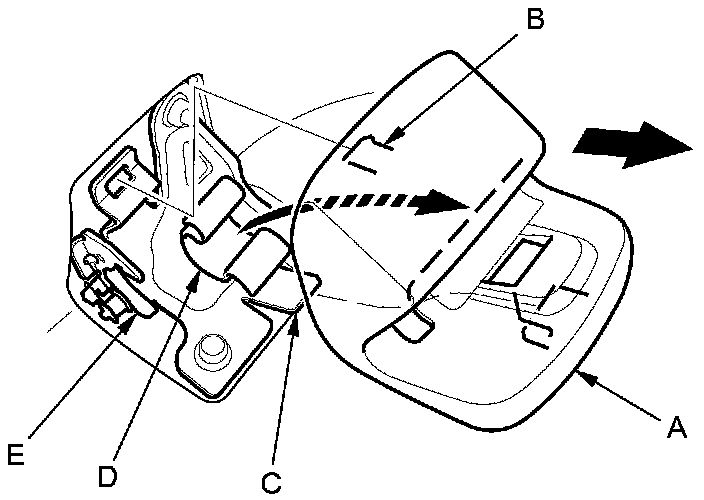

Push the leg guide cover (A) to release the hook (B), then pull out the cover from the attaching plate (C) and the holder (D) of the leg guide (E).
2.

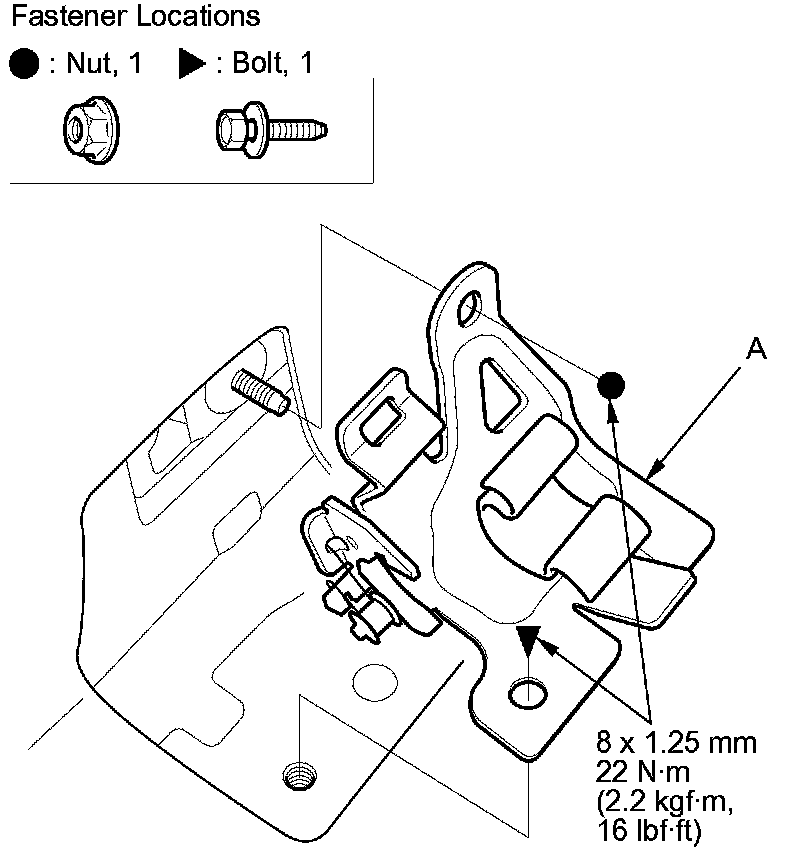

Remove the nut and bolt, then remove the leg guide (A).
3.
Install the leg guide in the reverse order of removal.
