Cowl: Service and Repair
Under-cowl Panel ReplacementNOTE: Take care not to scratch the body.
1.
Remove these items:
-
Windshield wiper arms
Service and Repair -
Cowl cover
Service and Repair 2.

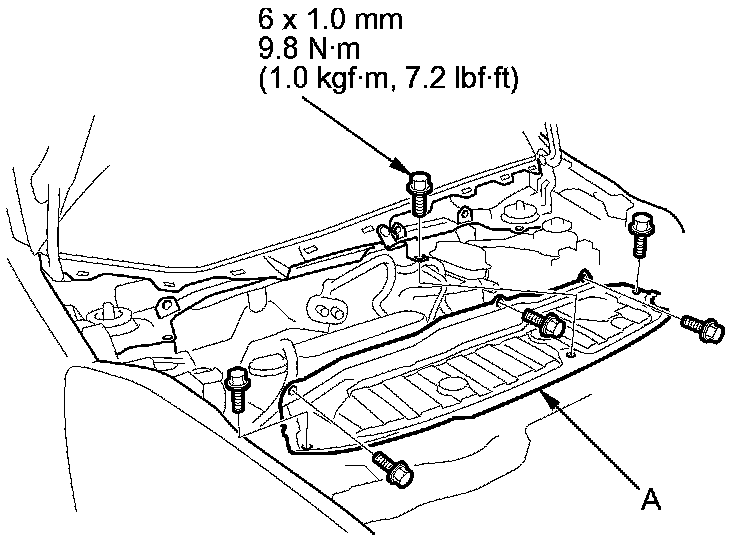

Remove the bolts, then remove the under-cowl panel (A).
3.
Install the under-cowl panel in the reverse order of removal.
