Cruise Control Combination Switch Test

Cruise Control Combination Switch Test

SRS components are located in this area. Review the SRS component locations Locations, and the precautions and procedures Service and Repair, in the SRS before doing repairs or service.

1. Remove the driver's airbag Driver's Airbag Replacement.

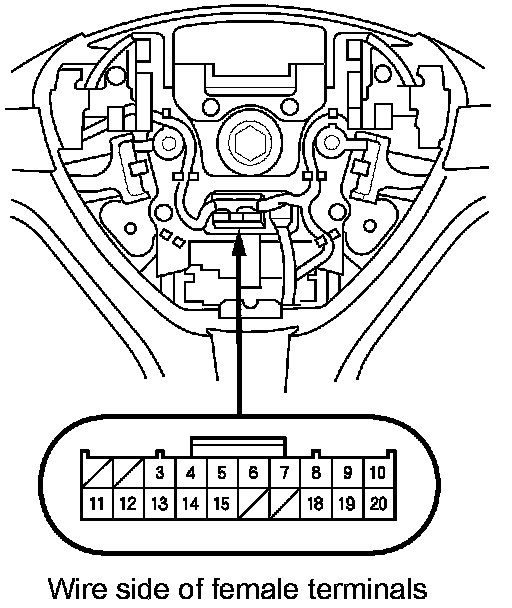

2. Disconnect the 20P connector from the cable reel.

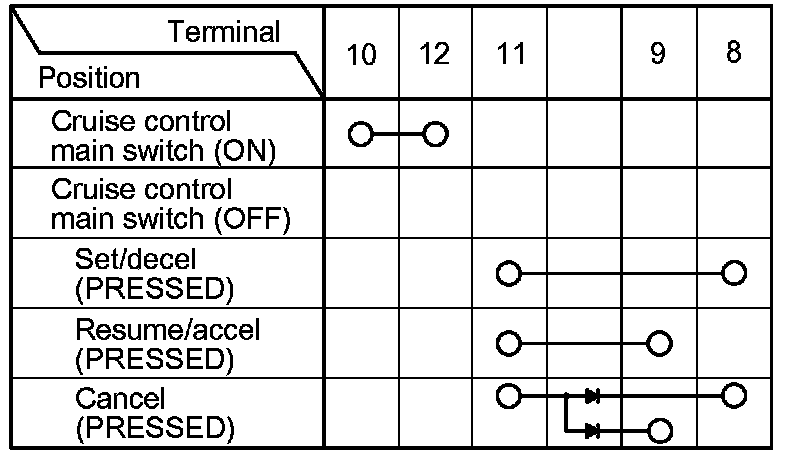

3. Check for continuity between the terminals in each switch position according to the table.

- If there is continuity, and it matches the table, but the cruise control input test, indicated a faulty switch check and repair the wire harness on the switch circuit.
- If there is no continuity in one or more positions, replace the switch Overhaul.

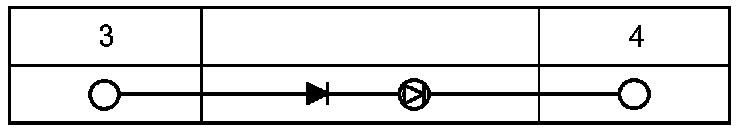

4. Use a diode tester between the terminals according to the chart. If the diode fails the test, replace the switch Overhaul.
