Condenser Fan Motor: Testing and Inspection
Radiator and A/C Condenser Fan Motor Test 1.

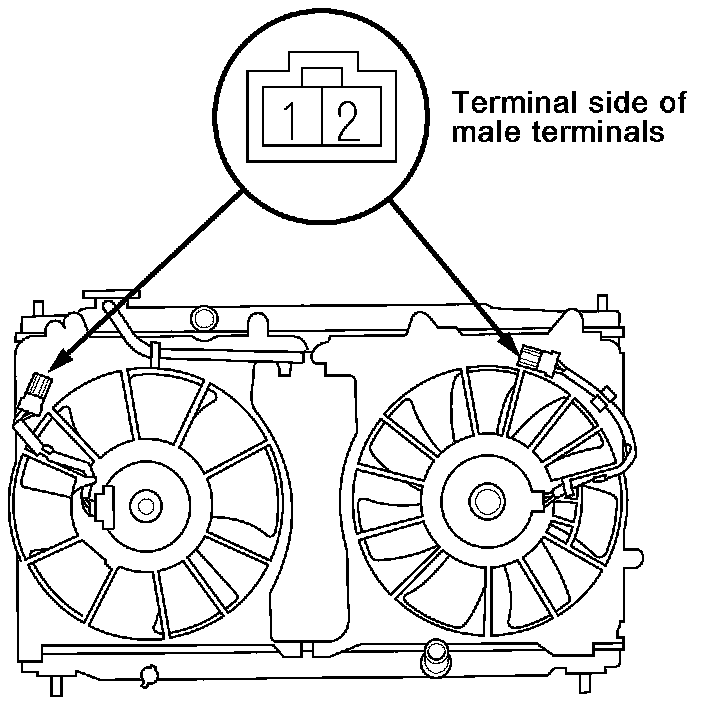

Disconnect the 2P connectors from the radiator fan motor and
condenser fan motor.
2.
Test the motor by connecting battery power to No. 2 terminal and ground to No. 1 terminal.
3.
If the motor fails to run, or does not run smoothly, replace it.
